34

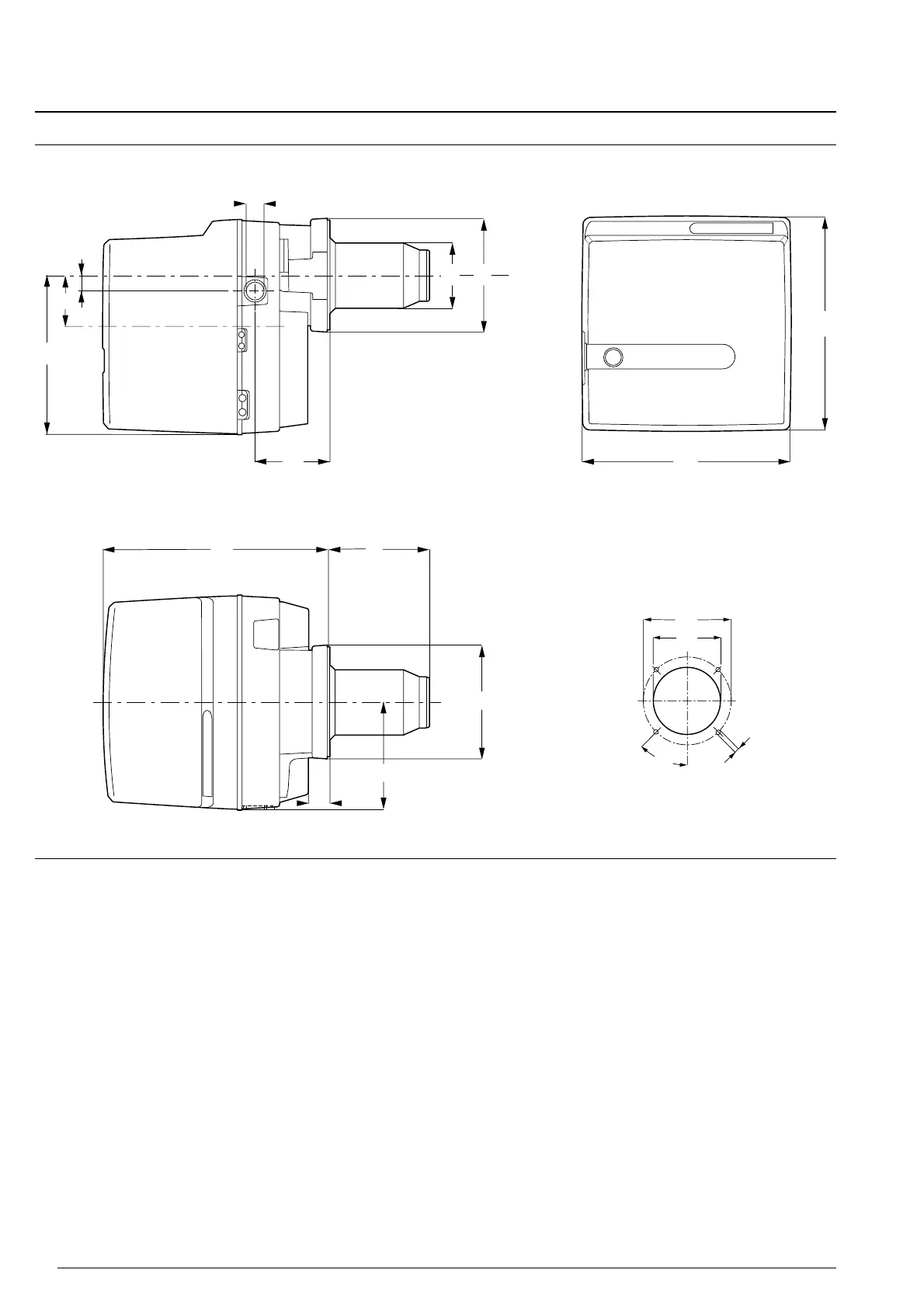

8.6 Dimensions
Dims. in mm
I1 I2 I3 I4 b1 b2 b3 h1 h2 h3 h4 h5 d1 d2 d3 d4 Rp α°
349 140 31·5 115 330 164 165 353 93·5 25 270 165 108 M8 110 150-170 3/4” 45°
–weishaupt–
h4
h2
Rp
d
1
h1
b1
l1 l2
l3
b2
h5
b3
d4
d3
d2
α°
h3
l4
