Manual R06-2016 117 / 172
ROTARY INDEXING TABLE CONTROLLER
EF2...B
OPERATION / DESCRIPTION OF WEISS SOFTWARE | 8.5 Operation and Monitoring
8.5.1.3 Forcing via the "Open separate user screen" button:

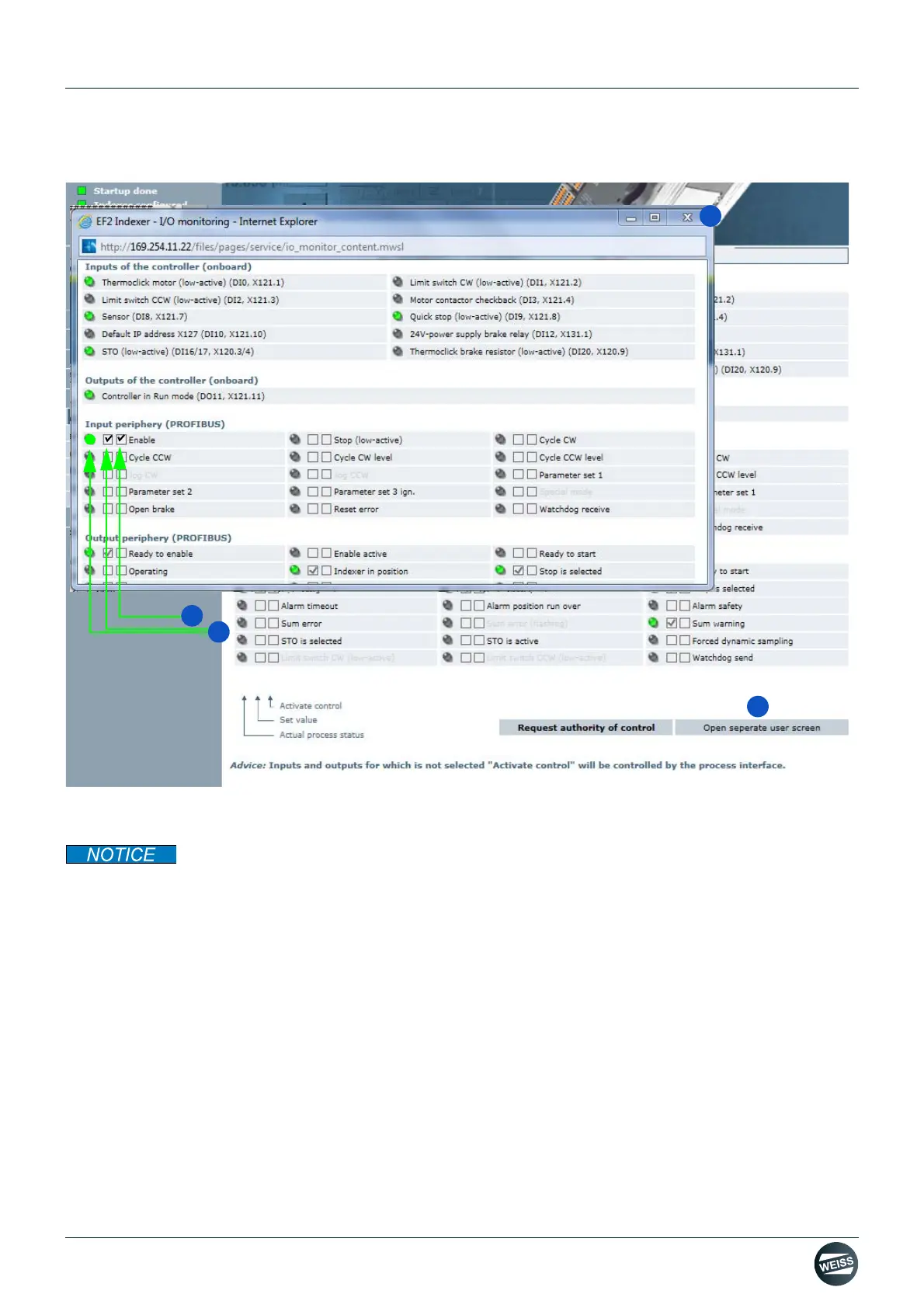

Fig. 68: Forcing via the "Open separate user screen" button
With a separate user screen or second browser window open, forcing can only be carried out by
the browser window from which the operating option has been requested.
1. Open a separate user screen.
Opening a separate user screen can make it unnecessary to open a second browser window.
Opening this window gives the user an operating option.
The window underneath it is now only used for monitoring.
The signals from a higher-level controller can be overwritten or forced - if there is no controller.
2. Activate forcing for an input or output.
3. Set the force value for the activated input or output.
The green light indicates that the process state is active.
4. Close the separate user screen.
The operating option is ended by closing the window.
