WEISS TM15 - EF1 Compatible Configuration

Manual R06-201698 / 172
ROTARY INDEXING TABLE CONTROLLER EF2...B
OPERATION / DESCRIPTION OF WEISS SOFTWARE | 8.3 Machine configuration
8.3.5.2 EF1 compatible configuration
 Configure the inputs and outputs with regard to the interface used.

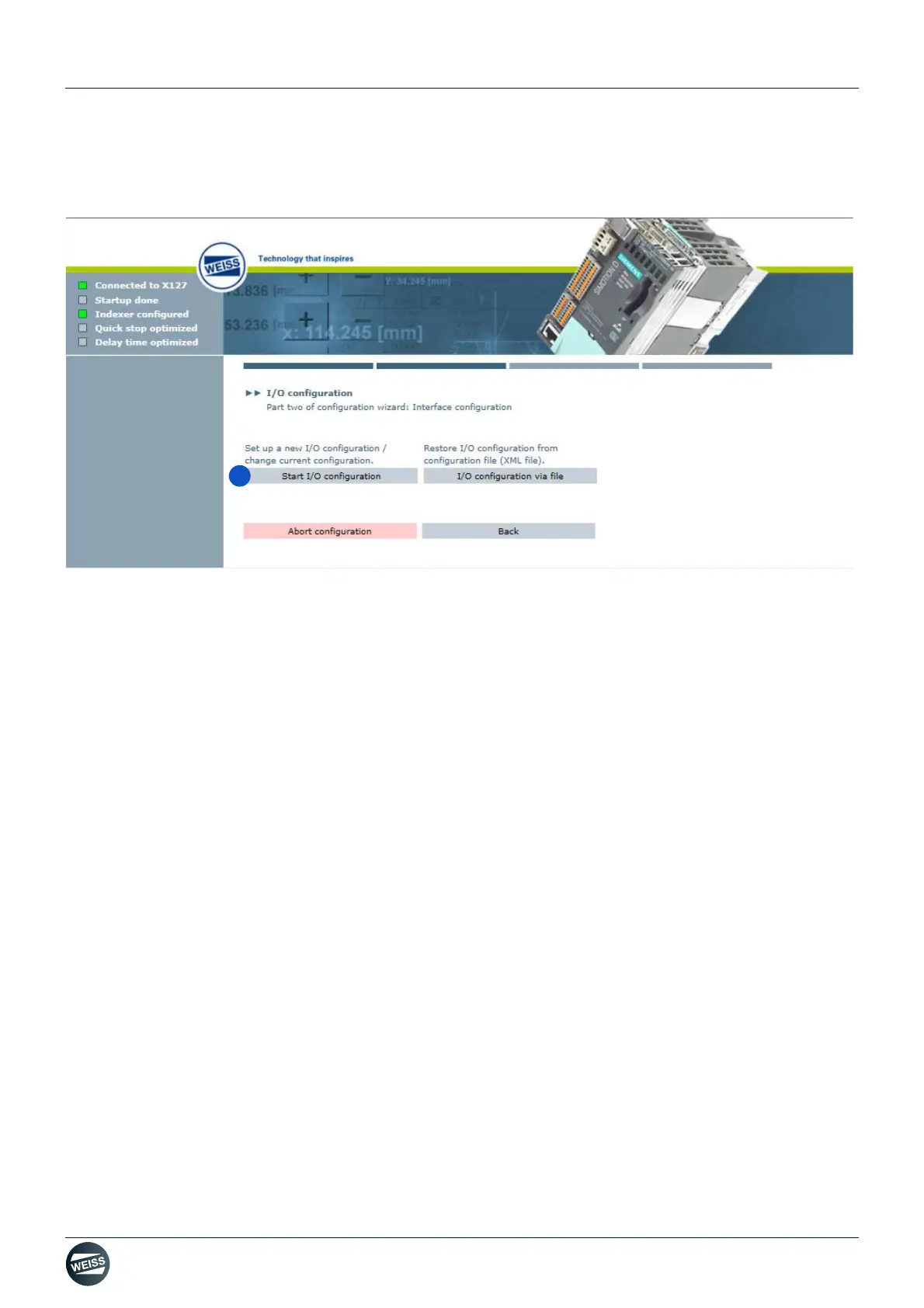

1. Start I/O configuration.
 Configure the inputs and outputs with regard to the interface used.
I/O configuration PROFIBUS if you are using a PROFIBUS interface
 Go to chapter „I/O configuration PROFIBUS EF1“ on page 99
I/O configuration PROFINET if you are using a PROFINET interface
 Go to chapter „I/O configuration PROFINET EF1“ on page 101
I/O configuration terminal module if you are using a Terminal Module (TM15) for the in-/outputs
 Go to chapter „I/O configuration terminal block connection EF1“ on page 104
1.
