8.2 Overview

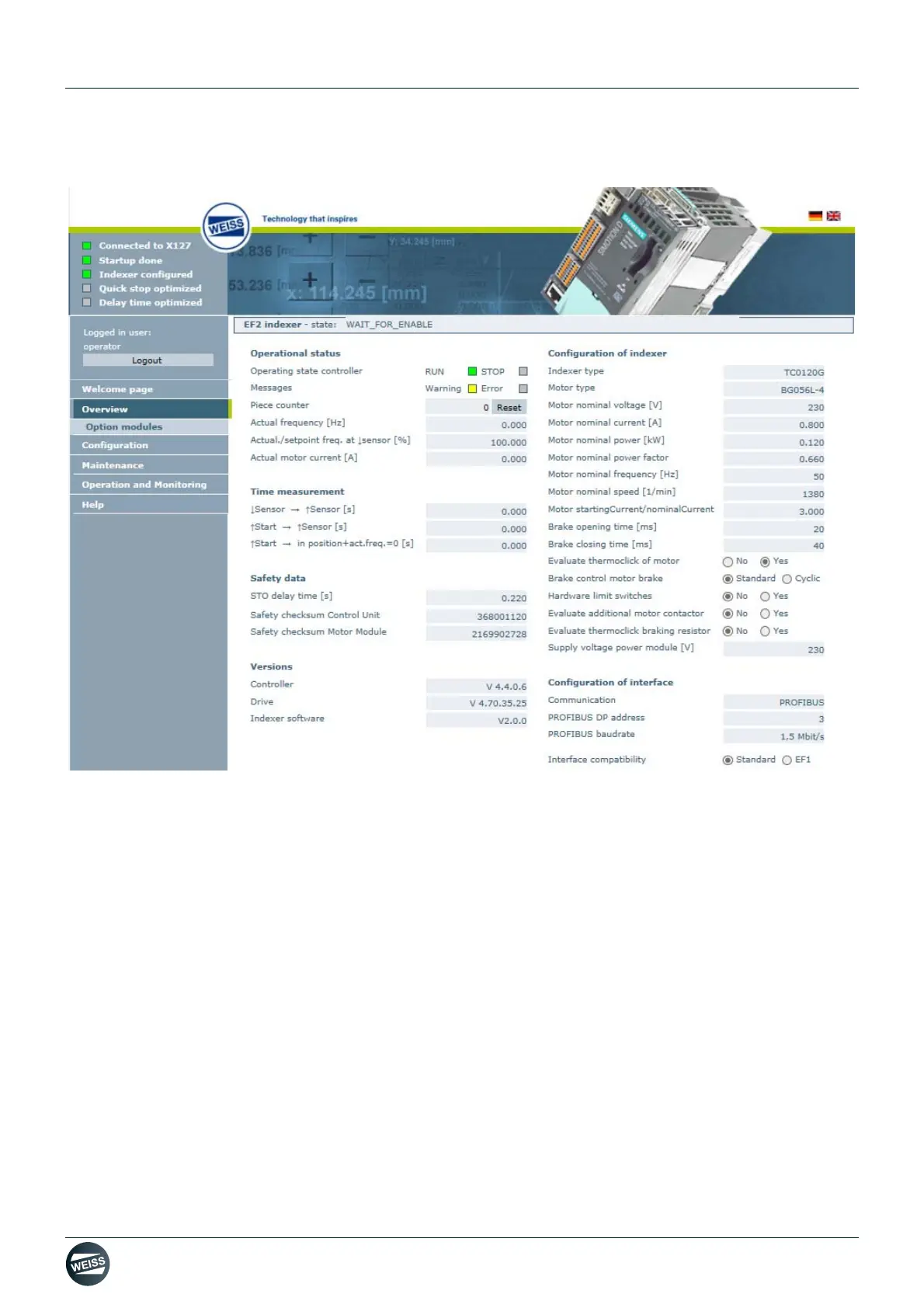

Fig. 52: Description of the "Overview" page
The "Overview" page provides an overview of the current status of the rotary indexing table, as well as the configu-
ration and the system data.
Useful data is only displayed on this page after a rotary indexing table has been configured.
The content on the "Overview" page is informative and cannot be changed on this page. Exception:
By clicking the RESET button next to "Batch Counter", the count will be set to zero.
Available information:
Rotary indexing table state: e.g. WAIT_FOR_ENABLE
Operational status
Time measurements
Safety data
Configuration of rotary indexing table
Configuration of interface
Versions
To Next Page
