Manual R06-2016 131 / 172
ROTARY INDEXING TABLE CONTROLLER
EF2...B
COMMUNICATION WITH A HIGHER-LEVEL CONTROLLER | 10.1 Profibus DP

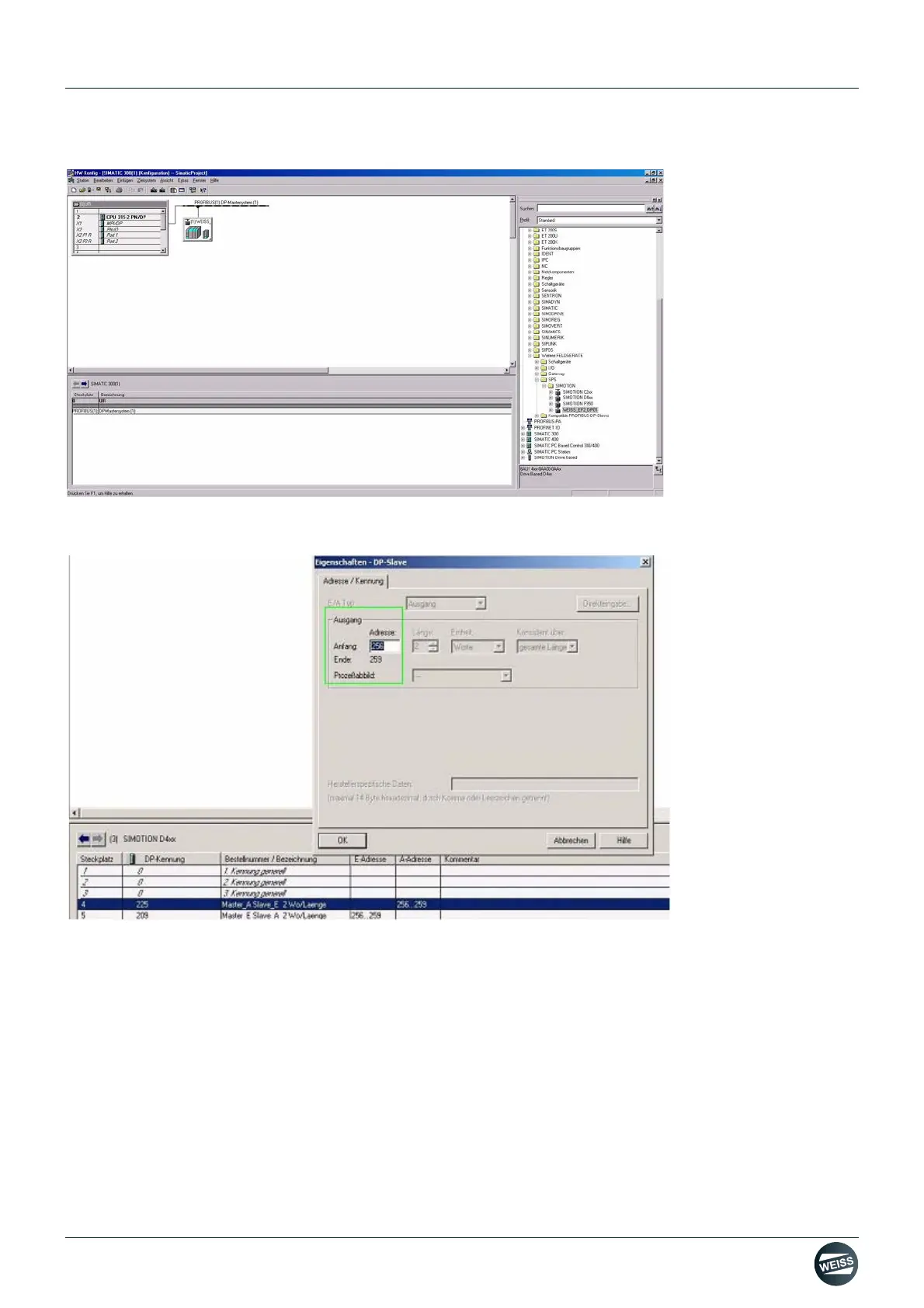

• By double-clicking slot 4 or 5, the start address proposed by HW Config can be reassigned to the desired
address.
• By double-clicking the DP slave SIMOTION, the PROFIBUS DP address proposed by HW Config can be reassi-
gned to the desired address. In this case, the preset value is PROFIBUS address 3. Any changes must also be
considered in the machine configuration on the Web interface of the SIMOTION.
Baudrates of 187.5 kbit to 12 Mbit are possible.
