Electronic Control Card TS004E
Commissioning

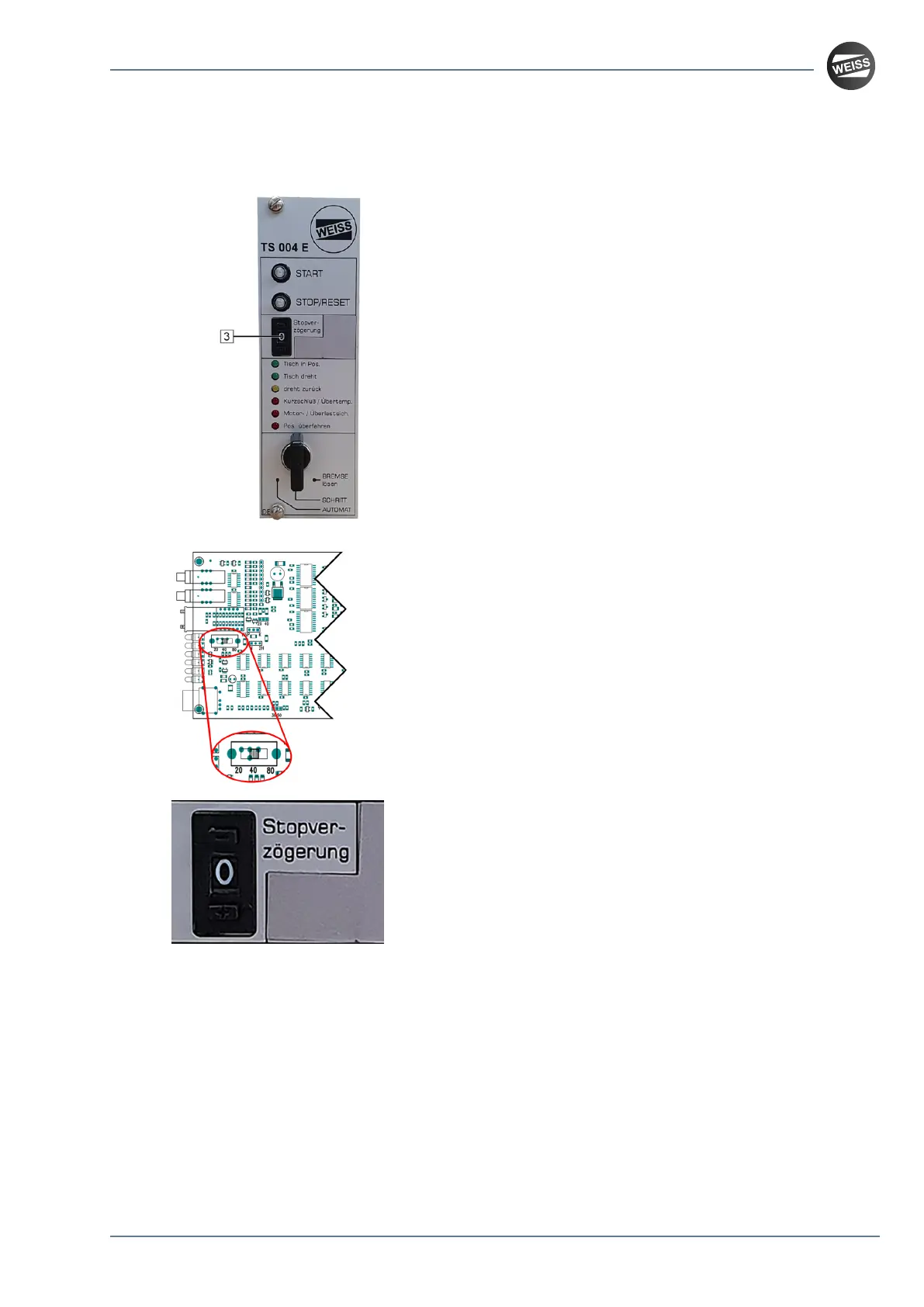

3 Counter indicator stop delay
As soon as the locked phase is reached, the position signal is avail-
able at terminal 10, but the stop signal for the drive is not yet active.
This signal is triggered with a delay so that the rotary indexing ta-
ble/rotary indexing ring is stopped at the end of the locked phase.
Otherwise, the time the drive requires to go through the locked phase
is lost as dead time during each cycle.
The basic increments for the stop delay are 20, 40 or 80 ms. This is
set by means of a switch on the PCB.
The factor is set at the buttons of the counter indicator stop delay to a
value between 0 and 9 (by pressing the upper or lower button).
0 = no delay
1-9 = delay factor 1-9 multiplied by 20, 40 or 80 ms
Optimum setting
■
Trigger a cycle of the rotary indexing table/rotary indexing ring. If
the error position overrun does not occur, increase the value of the
digital switch by one.
■
Repeat this procedure until the error position overrun is signaled.
■
Acknowledge the error and reduce the value of the digital switch by
one.
User manual_082018_1.0_en
17 / 29
