Electronic Control Card TS004E
Commissioning
8 Commissioning
Prior to switching on the product, verify that the motor housing is correctly connected to ground
potential (PE busbar).
DANGER
ELECTRIC SHOCK CAUSED BY LIVE PARTS
Control connections and power connection can carry voltage even if the motor is at
a standstill. This applies to operation of the product in conjunction with an electronic
contactor (solid-state relay).
■
Disconnect mains voltage before connecting or disconnecting the electrical
connections of the product.
Failure to follow these instructions will result in death or serious injury.

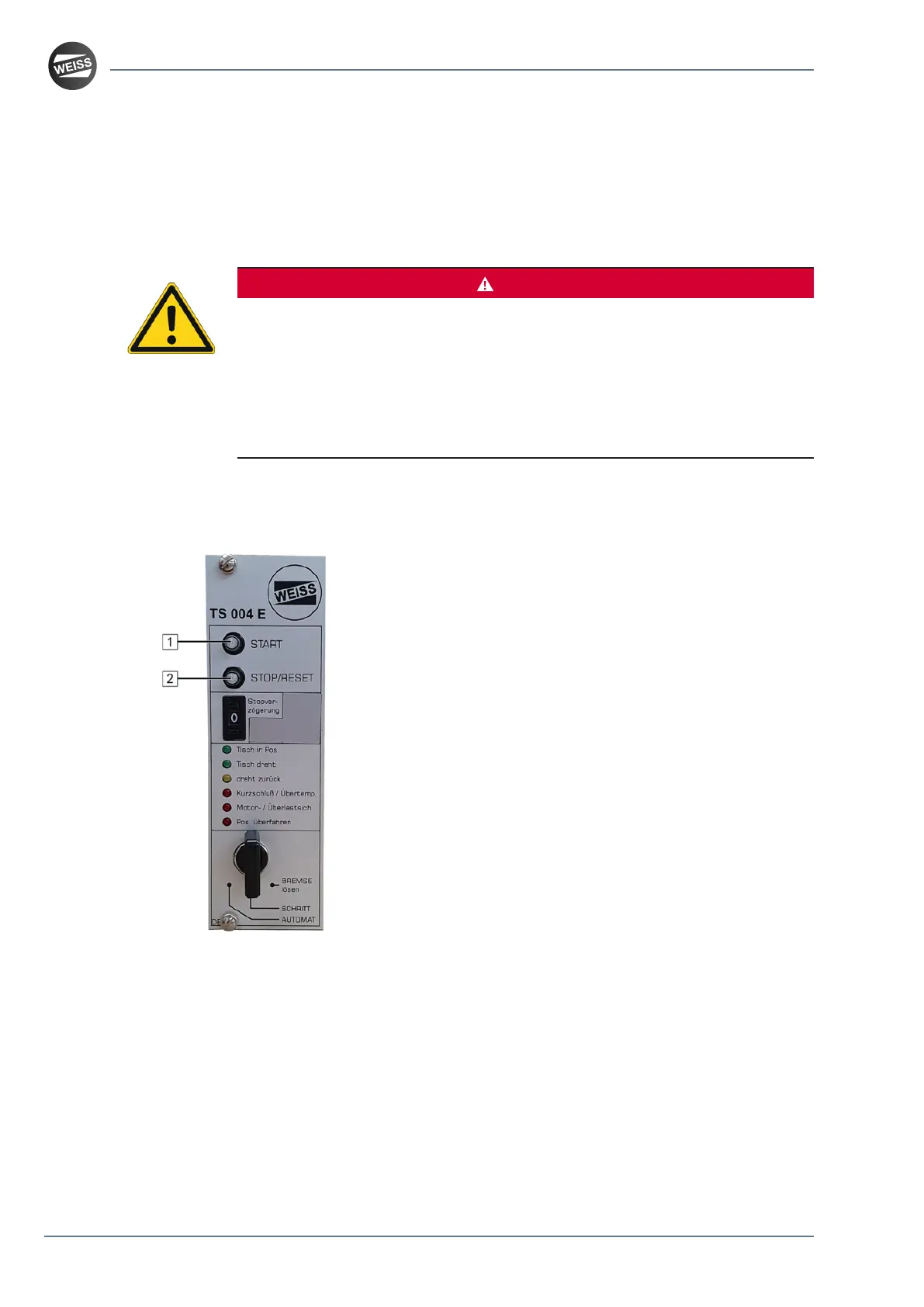

8.1 Controls and status indicators
1 Button START
The LED lights green to indicate that 24 V are available at the
product. If the key switch is in position INCHING (manual jog
mode), you can press the key START to trigger a cycle.
2 Button STOP/RESET
The LED lights red to indicate that an error is pending. If you
press the button STOP/RESET the rotary indexing table/rotary
indexing ring is immediately stopped and the error acknowl-
edged. The button STOP/RESET is available in all operating
modes.
16 / 29
User manual_082018_1.0_en
