WEISS TS004E User Manual

Electronic Control Card TS004E
Commissioning

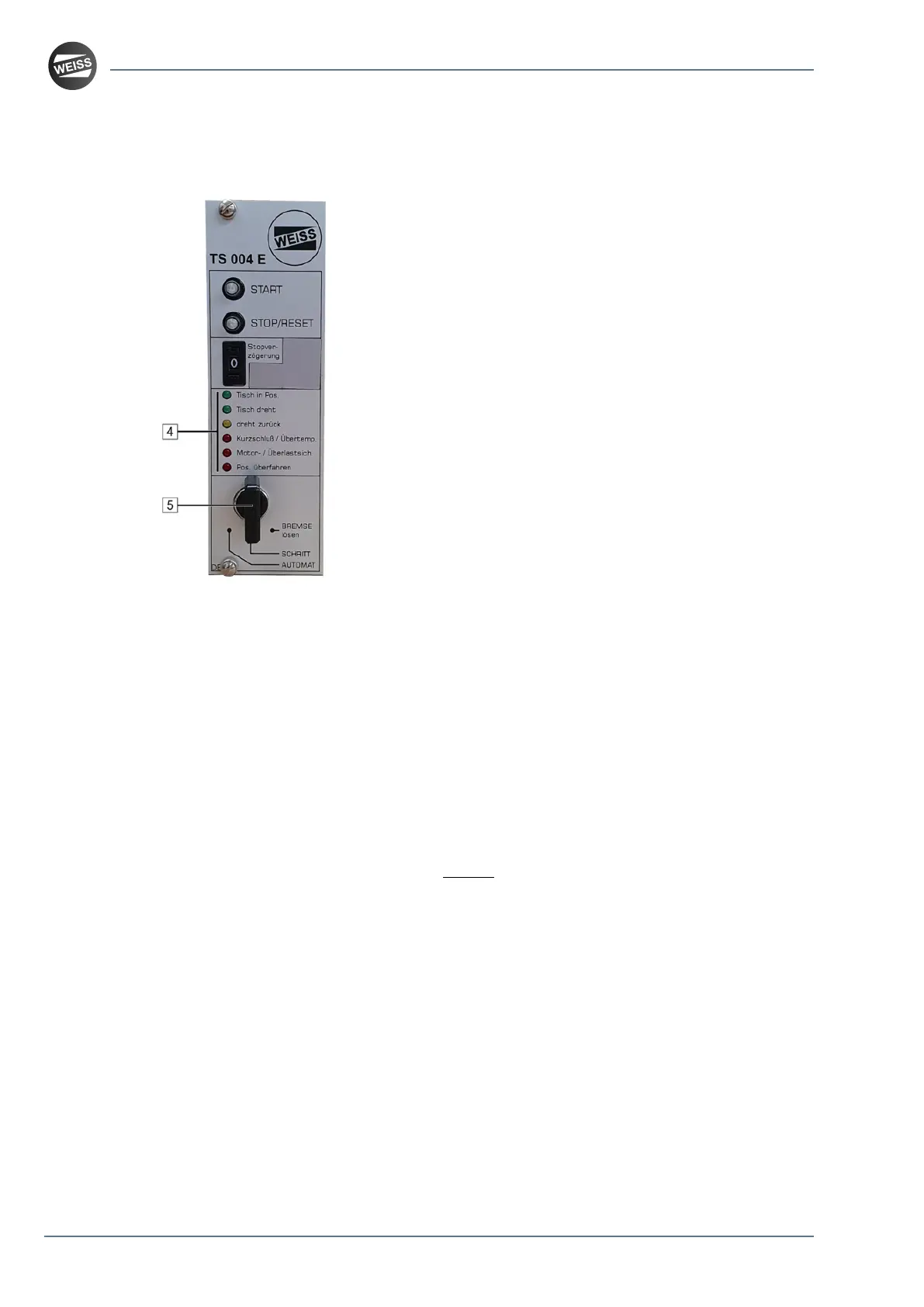

4 Status indicators
table in position The LED lights green if the rotary indexing
table/rotary indexing ring is in position, i.e.
the output flange is locked
table rotating The LED lights solid green as long as the
drive rotates
return LED lights solid yellow when the signal is
active
short circuit/high temp.The LED lights solid red in case of over-
load or short-circuit at one of the moni-
tored outputs; flashes if the motor temper-
ature is too high
motor/table overload The LED lights solid red if the cycle (start
to stop) is not terminated within a period
of 9 seconds (movement timeout)
position overrun The LED lights solid red if the drive does
not come to a standstill within the locked
phase
5 Key switch
The key switch allows you to switch between the operating
modes BRAKE release, INCHING and AUTOMATIC . The key
can be removed in any of the positions.
– BRAKE release
If you release the brake, you can manually rotate the rotary
indexing table/rotary indexing ring to the next locked phase if
it is not in the locked phase. The level of the outputs Forward,
Reverse, Start permissible and General error is set to LOW. A
start via terminals 3 or H is not possible.
– INCHING (manual jog mode)
If you press the button START the rotary indexing table/rotary
indexing ring performs one cycle. The level at terminal 2
Enable (RESET/STOP) must be HIGH. No error must be
pending. An external start via terminals 3 or H is not possible.
– AUTOMATIC (automatic operation)
Automatic operation of the rotary indexing table/rotary
indexing ring. The start is only possible via terminals 3 or H .
8.2 Description of the inputs
8.2.1 Terminal 1
Direction of rotation
LOW Direction of rotation CW clockwise (right)
HIGH Direction of rotation CCW counter clockwise (left)
18 / 29
User manual_082018_1.0_en
