Electronic Control Card TS004E
Commissioning
8.2.7 Terminal H
Start state-controlled
A LOW/HIGH edge starts a cycle. As opposed to input 3 the level at this input must be HIGH during
the entire movement. If the level changes to LOW, the rotary indexing table/rotary indexing ring
immediately stops (in an intermediate position). No error is signaled. If the level remains LOW, there is
no new start; a level change from LOW to HIG is required.

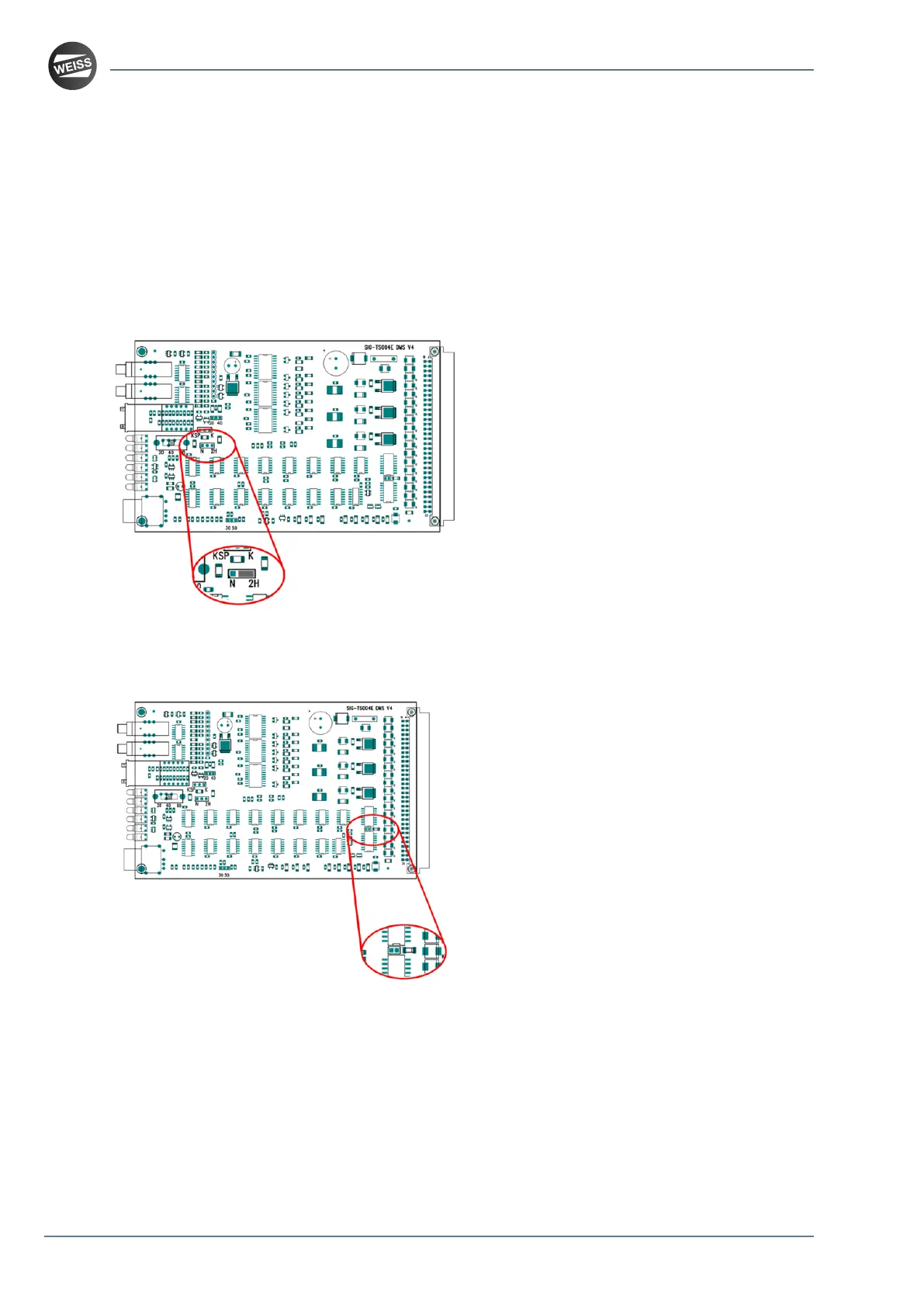

The jumper N-2H must be at the right hand posi-
tion. Terminal 3 has no effect.
8.2.8 Terminal T
Temperature monitoring
The temperature switch (normally closed contact)
of motors with temperature monitoring can be
connected to this terminal. The normally closed
contact is connected between terminal T and
GND (OV).
If the line is interrupted, this causes an error.
The jumper must be removed if this function is to
be used.
By default, this function is disabled (jumper re-
moved) for reasons of downward compatibility.
8.3 Description of the outputs
8.3.1 Terminal 4
Automatic
The level at this output is HIGH if the key switch at the front is in position AUTOMATIC .
