6 Replacing components
Back to contents >
Merrychef conneX
®
service and repair manual 73
6.3 Removing / fitting the casing
Tools required
M5.5 hex socket wrench
Requirements
Check that the following requirements have been met:
The appliance has been disconnected from the power supply and protective measures have been taken to ensure
the power cannot be switched on again.
The appliance is cool.

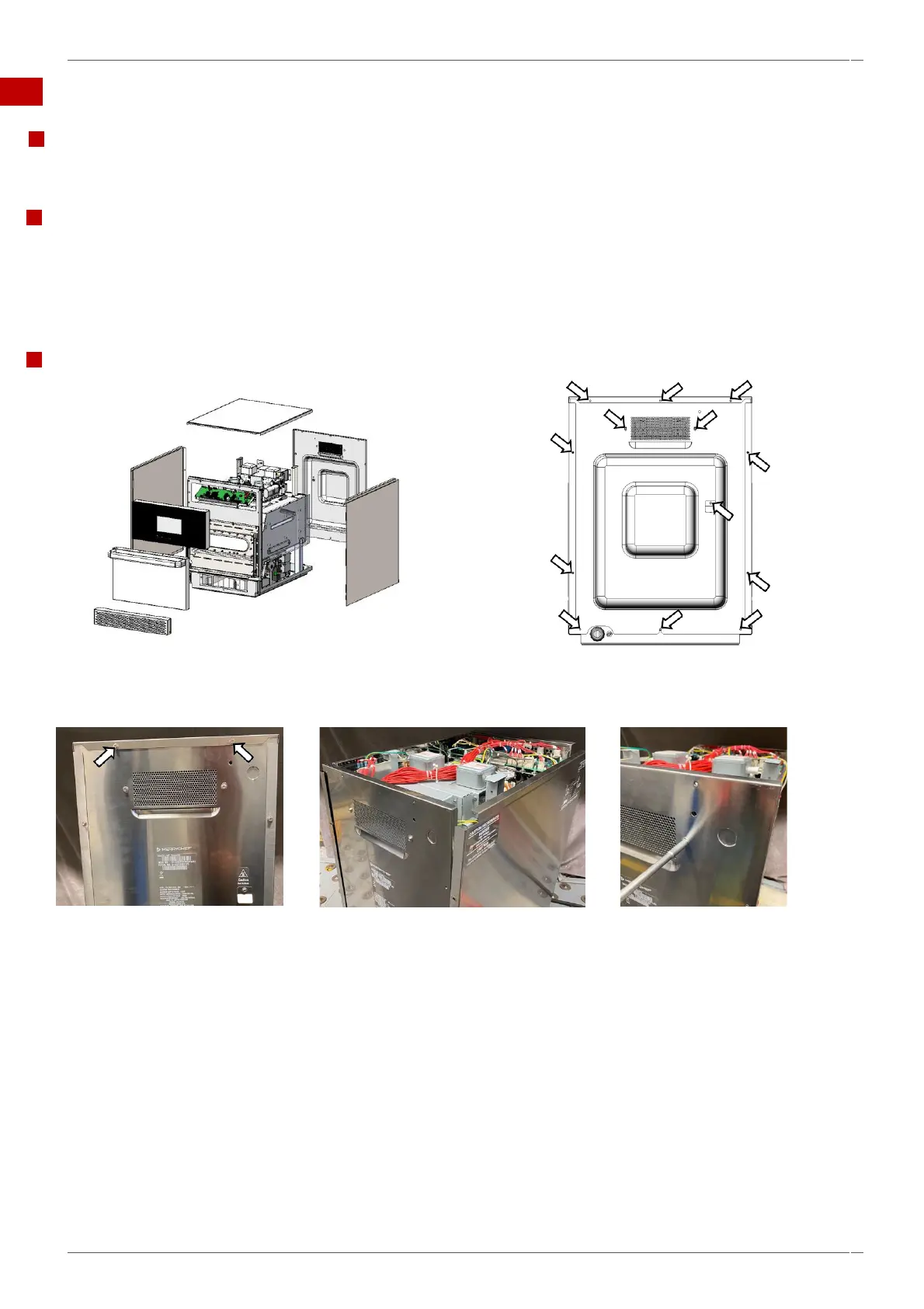

Removing the panels of the casing
Overview of all M5.5 hex head flange bolts securing the panels of the casing.
1. Remove top panel first.
Unfasten the M5.5 hex head flange
bolts at the back panel of the
appliance attaching the top panel to
the back panel.
X12 = two bolts
X16 = three bolts
Lift the top panel at the rear and pull
out from the front fixing to remove it.
2. Removing the side panels:
Unfasten the six M5.5 hex head flange
bolts (three per side) at the back panel
of the appliance attaching each side
panel to the back panel.
Slide the panels towards the back of
the appliance and out at the bottom to
remove them.
3. Removing the back panel:
Unfasten the six M5.5 hex head
flange bolts attaching the back panel
to the cooling duct (two bolts), the
exhaust pipe (one bolt) and the base
plate (three bolts) of the appliance.
Move the back panel up to remove
it.
Important: If the optional ethernet
cable is fitted, disconnect before
removing the back panel.
4. Ensure the high voltage capacitors are discharged before commencing any work.
