6.16 Replacing the heating element
Requirements
Check that the following requirements have been met:
 The appliance has been disconnected from the power supply and protective measures have been taken to ensure
the power cannot be switched on again.
 The appliance is cool.
 The casing of the appliance is removed.
 The high voltage capacitors are discharged before commencing work.
 See section 6.13 for convection fan motor assembly removal to access the heating element
Additional Tools required
 7mm open spanner

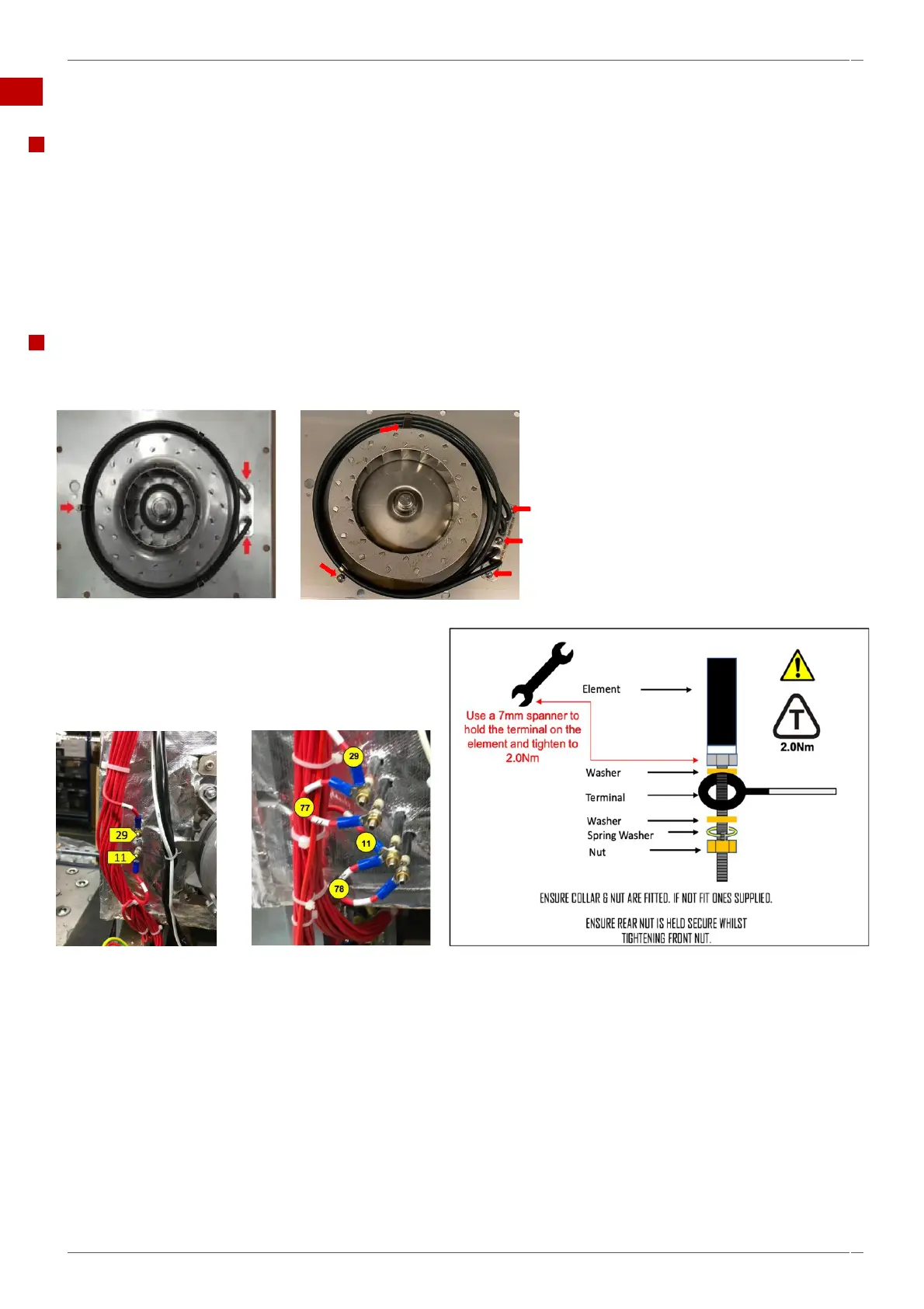

The element is fixed using two M7 hex bolts
on the X12 & three on the X16, tightened to
2.1 Nm and supported with a single M5.5
hex flange nut on the X12 & two on the X16,
tightened to 1.7 Nm.
Use a 7mm spanner to hold the terminal on the element
and loosen the M7 hex nut fixing the wiring connection.
Follow the same procedure re-connecting the wiring and
tighten to 2 Nm.
X12 X16
