6 Replacing components
Back to contents >
Merrychef conneX
®
service and repair manual 91
Fitting the convection fan motor
Follow the steps in the reverse order to fit the convection fan motor assembly.

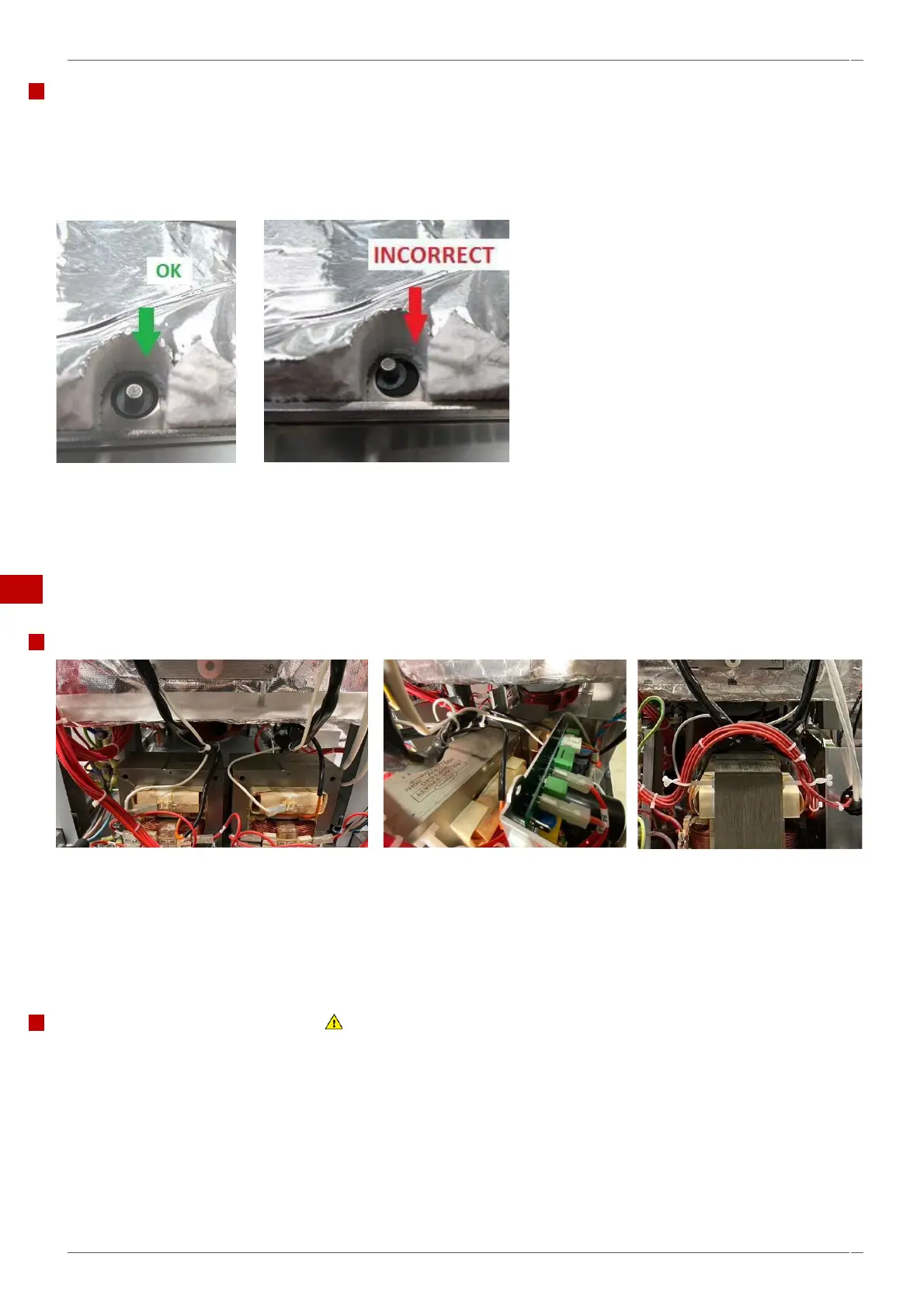

On replacement, ensure the rear plate is placed fully over the mounting points on the cavity before refitting and tightening
the nuts, fitting new rubber gaskets if required, when refitting the replacement motor assembly and vent pipe, ensuring the
mating surfaces are clean.
Ensure the flange nuts holding the convection motor in place have been torqued to 2.1Nm and are torqued diagonally and
not clockwise.
6.14 Replacing a transformer (high voltage)
Component
The X16 has two HV transformers, side by
side, at the rear of the oven, under the cavity.
The right-hand transformer is for the right-
hand microwave circuit & components.
The left-hand transformer is for the left-hand
microwave circuit & components.
The X12 standard power variants have a single HV transformer at the
rear of the oven, under the cavity.
The X12 high power variants have the rear HV transformer for the
right-hand microwave circuit & components, with a second HV
transformer further forward in the centre under the cavity, for the left-
hand microwave circuit & components.
Tools required
M8 hex socket wrench
End cutters
Discharge Tool
CAUTION:
The transformers are heavy.
Wear safety shoes to protect your feet from a dropped transformer.
