Description
20 Operating Manual MXPC 303 Z/603 T
Position
Description
1
Carrying handle
2
Inlet (pneum.) suction port
3
Exhaust vapour condenser
4
Fork clamp
5
Pressure side separator
6
Suction side separator
7
Pumping unit
8
Mains connection/ On/Off switch (see Fig. 5-2)
9
Cooling water condenser outlet
10
Cooling water condenser inlet
11
Exhaust pressure connector

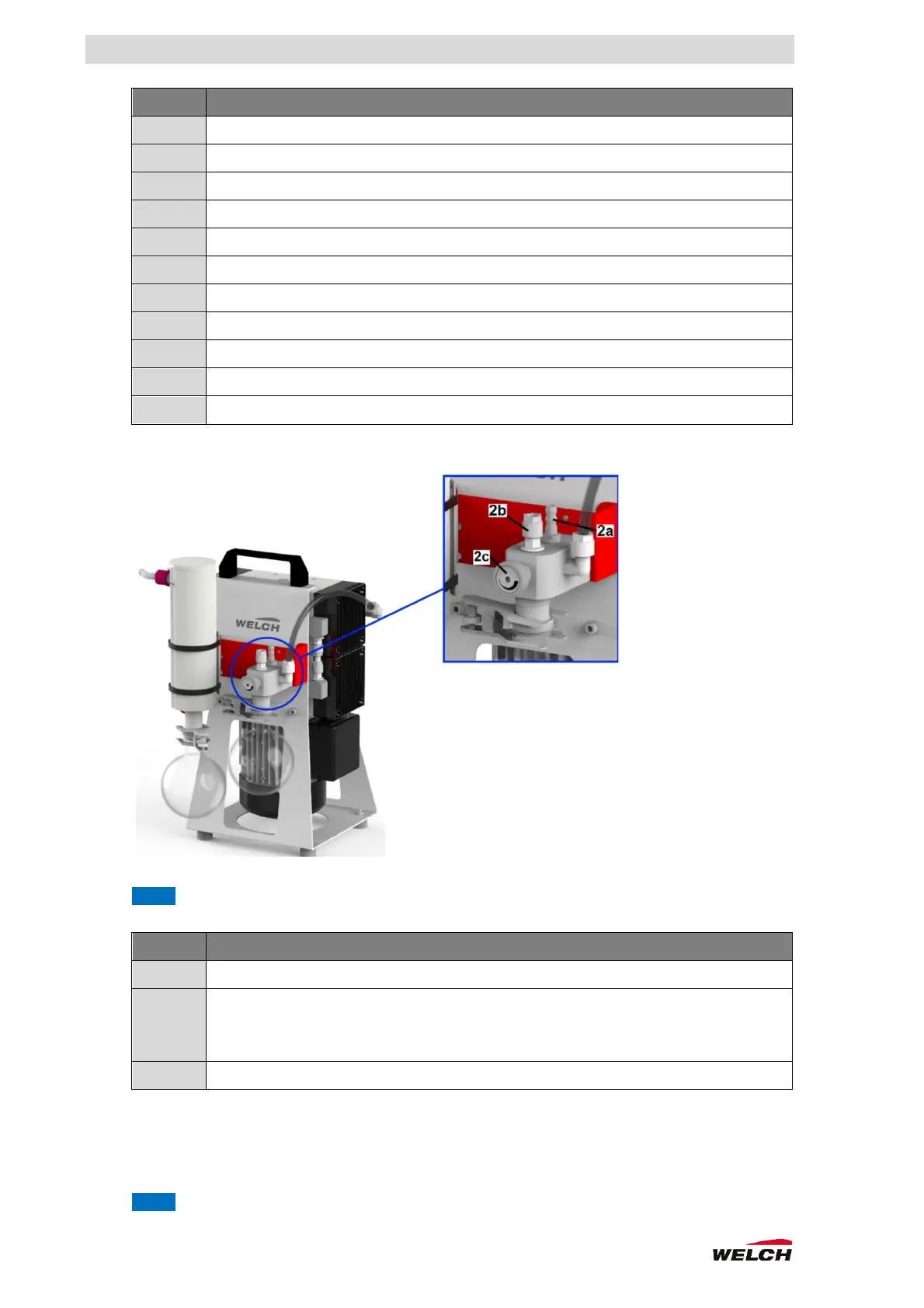

4.2.2 Pneumatic inlet
Fig. 4-3. Pneumatic inlet detail view (suction side)
NOTE Display with accompanying material at the inlet (see chapter 3.3 General Connections).
Position
Description
2a
Inlet (pneum.) suction port, 1
st
application
2b
Optional port for:
 2nd application (see chapter 4.4.1 Accompanying material)
 Pressure gauge (see chapter 4.4.2 Optional fittings)
2c
Control valve
The device is supplied as standard with a hose nozzle at the suction port (2a) and an optional
connection (2b) is closed with a blind plug. A second application can be connected to the
optional port using the accompanying material. Alternatively, a pressure gauge can be installed.
The inlet pressure can be regulated with the control valve (2c).
NOTE Ambient air is sucked into the chamber via the control valve.
