5.4.3 CP2-EIT-00

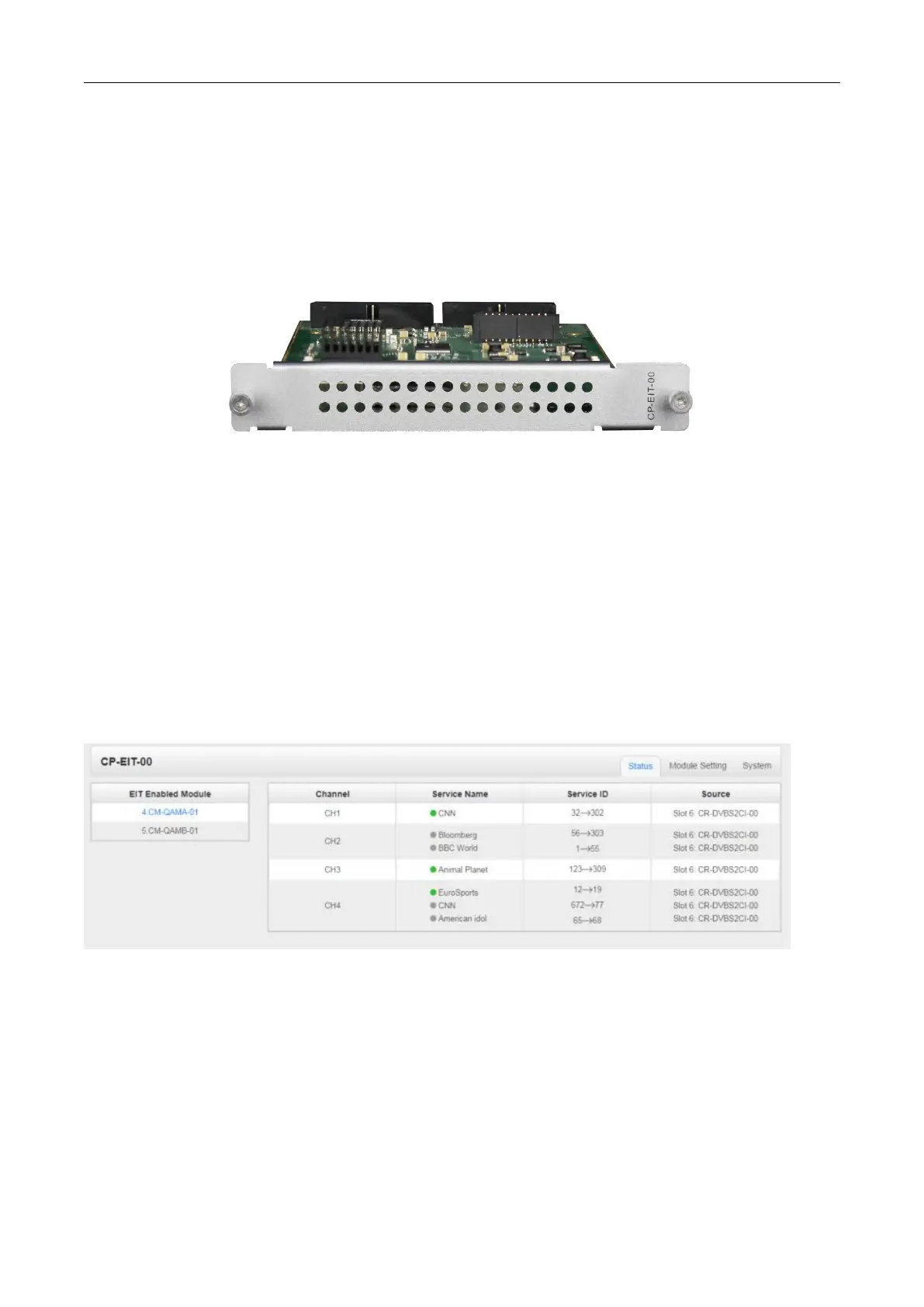

CP2-EIT-00 is an EIT multiplex module. It supports up to 32 TS inputs and up to 16 TS outputs. It
also supports EIT multiplexing enable control at module level, TS level and program level. Multiple
EIT multiplexing modules can run simultaneously in a single chassis.
The GUI of EIT module includes three pages: Status, Module Setting and System.
CP2-EIT-00 > Status
The Status Page displays modules and services with EIT enabled. The indicator in front of each
service shows its working status.
Green: EIT is enabled and normal.
Red: EIT is enabled but abnormal. No EIT content from the source or no EIT output.
Gray: EIT is disabled.
CP2-EIT-00 > Settings
