Audio Encoder Details
Range
Audio Encoder Details
Range
Encoding Type
MPEG1_Layer2/AAC/AC3
Audio Sampling Bit
rate(KHz)
48
Audio Mode (AC3)
Stereo
Audio PID
32~8190
Encoding Bitrate(Kbps)
32~192
Volume (dB)
-20~20
Delay (ms)
-2000~2000
CE2-CVBS-00/R01/R01A > Output/ Insertion
Output and Insertion please refer to CE2-HDMI-R01 module.
CE2-CVBS-00/R01/R01A > System
Please refer to CR2-DVBC module.
5.2.6 CE2-HDMI-05/05A

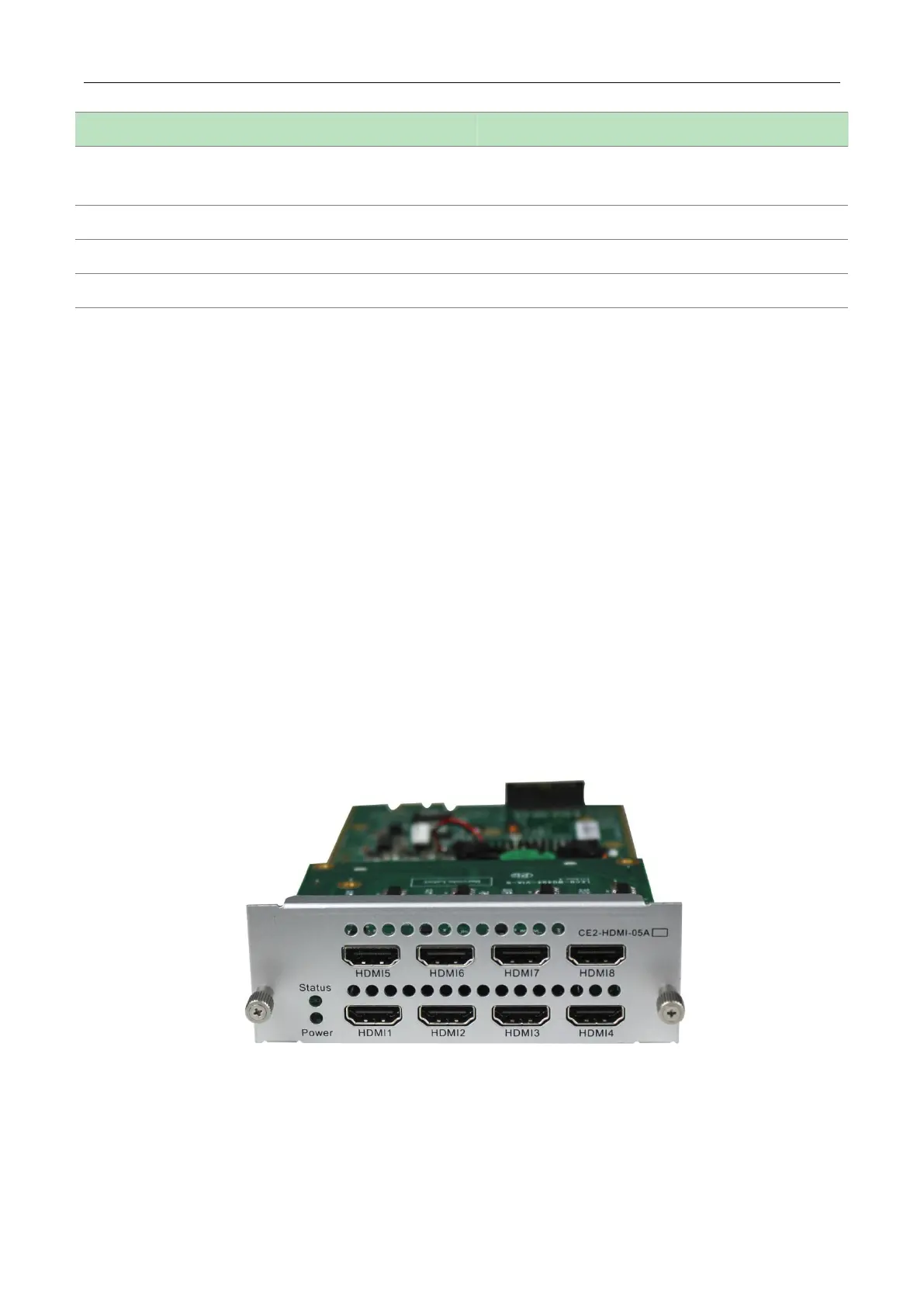

CE2-HDMI-05/05A is a 4/8-channel HDMI input encoder, supports H.264/H.265 HD/SD encoding,
supports MPEG1-L2, AAC (optional) and AC3 (optional) audio encoding. Also supports overlay OSD
subtitles, station logo and QR code.
