Wellav CMP201D - CE2-CVBS-R01;R01 A Settings

CMP201D User Guide
65
Encoding Type
MPEG1_Layer2
Audio Sampling
Bitrate(KHz)
48
Audio Mode (AC3)
Dual Channel/Mono/
Stereo
Audio PID
32~8190
Encoding Bitrate(Kbps)
64~384
Volume Setting
0.00~8.00

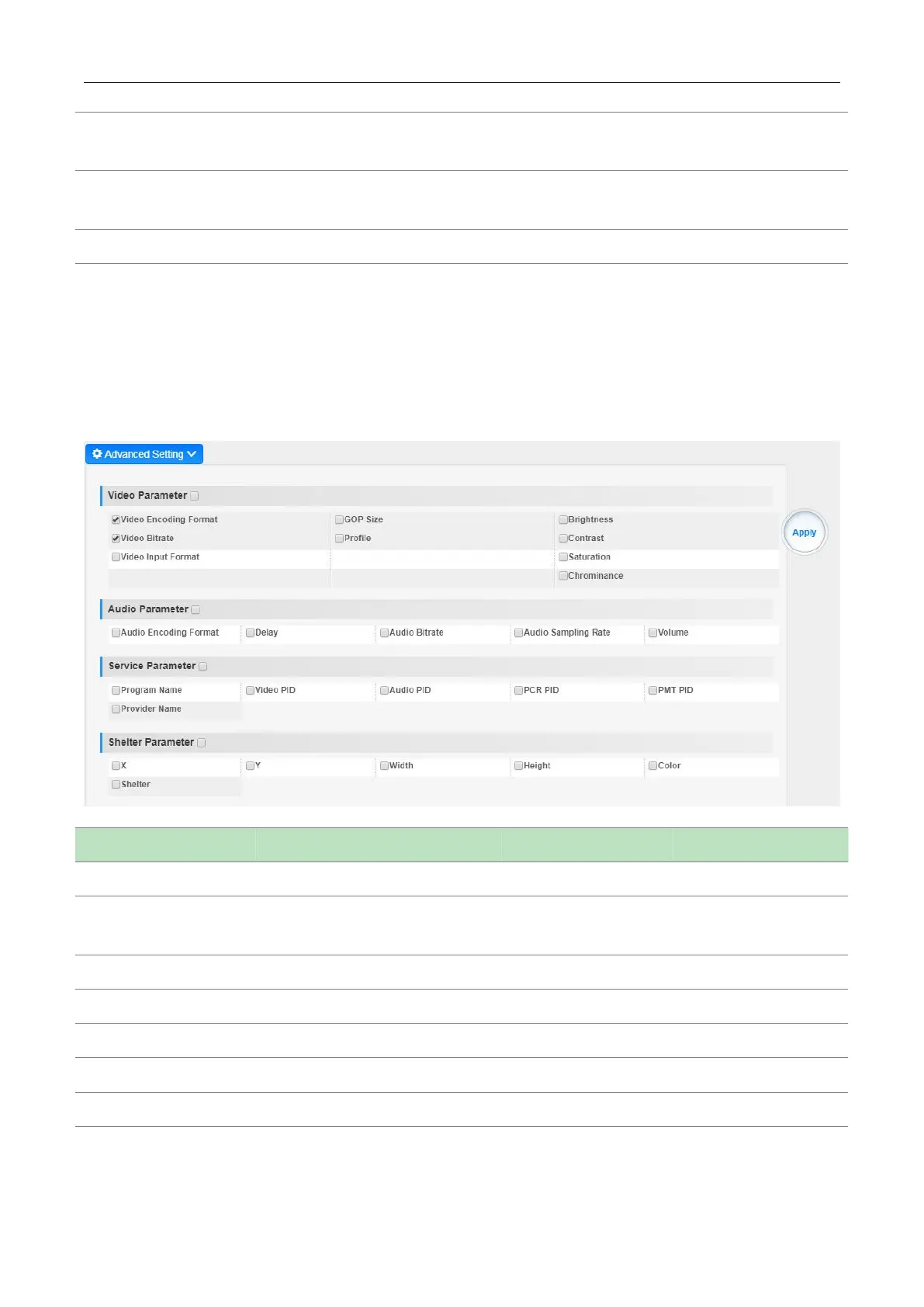

CE2-CVBS-R01 /R01A>Settings
CE2-CVBS-R01 module has 8 channels with 2 DB15 connectors and CE2-CVBS-R01A module has
16 channels with 4 DB15 connectors. The configuration of them are similar to CE2-CVBS-00, there
are a few differences on parameter setting range.
Name
Range
Name
Range
Video Type
H.264
Service Name
Length is 1~16
Video Bitrate (Kbps)
600~6000
Service Provider
Name
Length is 1~16
Video Mode
CBR
Brightness
0~255
GOP Size
1~99
Contrast
0~255
Profile
Main/High
Saturation
0~255
Video PID
32~8190
Chrominance
0~100
Video Format
AUTO/NTSC/PAL
PMT PID
32~8190
