Wellav CMP201D - CE2-HDMI-02 Module

CMP201D User Guide
49

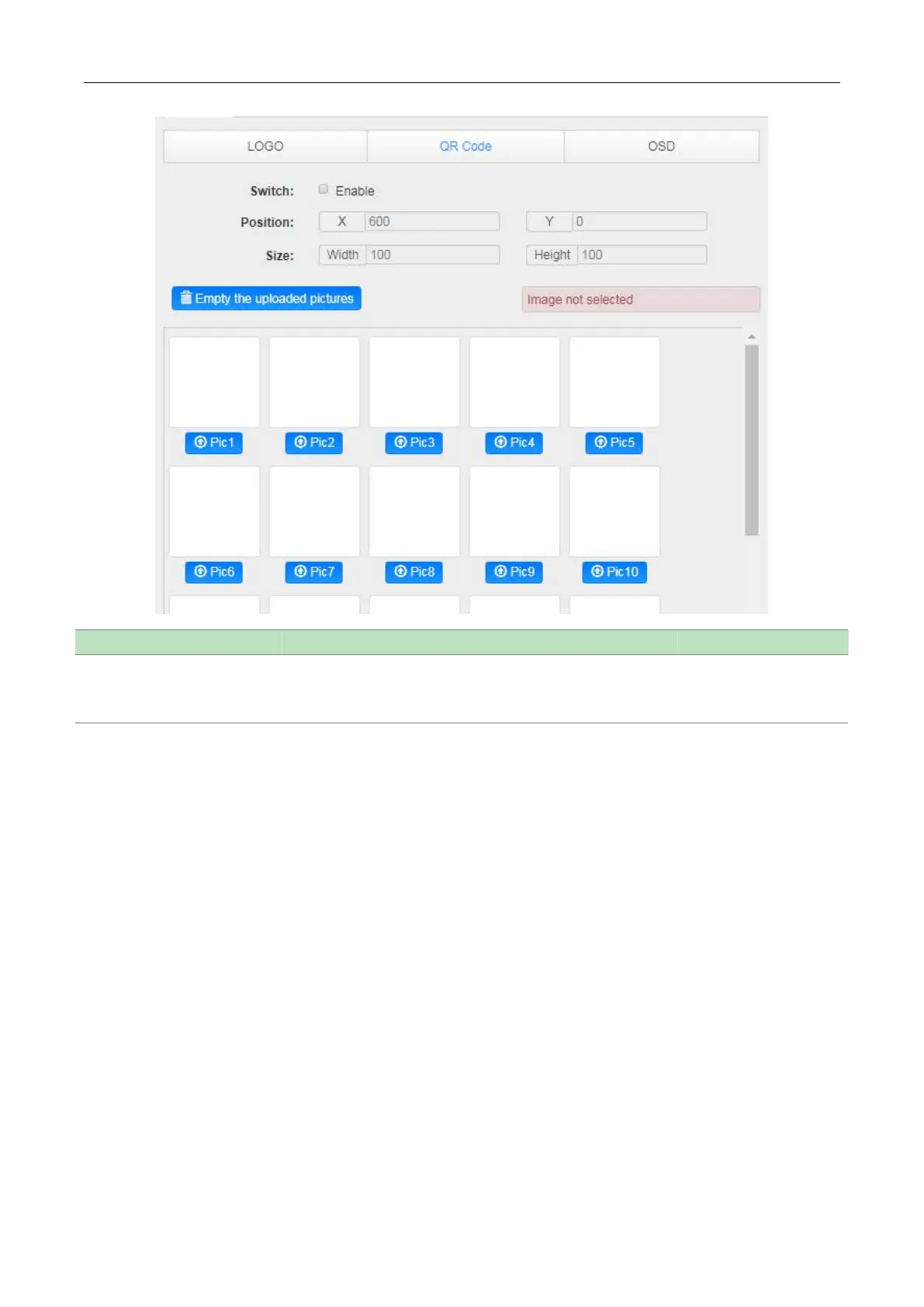

LOGO Parameter
Range
LOGO Parameter
Range
Position X
0~1920 (Dual)
Position Y
0~1080 (Dual)
Size width
0~1920 (Dual)
Size Height
0~1080 (Dual)
CE2-HDMI-00/R01 > System
Please refer to CR2-DVBC module.
5.2.2 CE2-HDMI-02
CE2-HDMI-02 is a 2-channel HDMI encoder which supports H.264 HD/SD or MPEG-2 HD/SD
encoding with 2-channel RCA for CC input. The module supports MPEG1-L2, AAC and AC3 audio
encoding.
