Service configuration is similar to CR2-DVBC-00. Status, CI Status and System operation refer to
CR2-DVBC -00 module section.

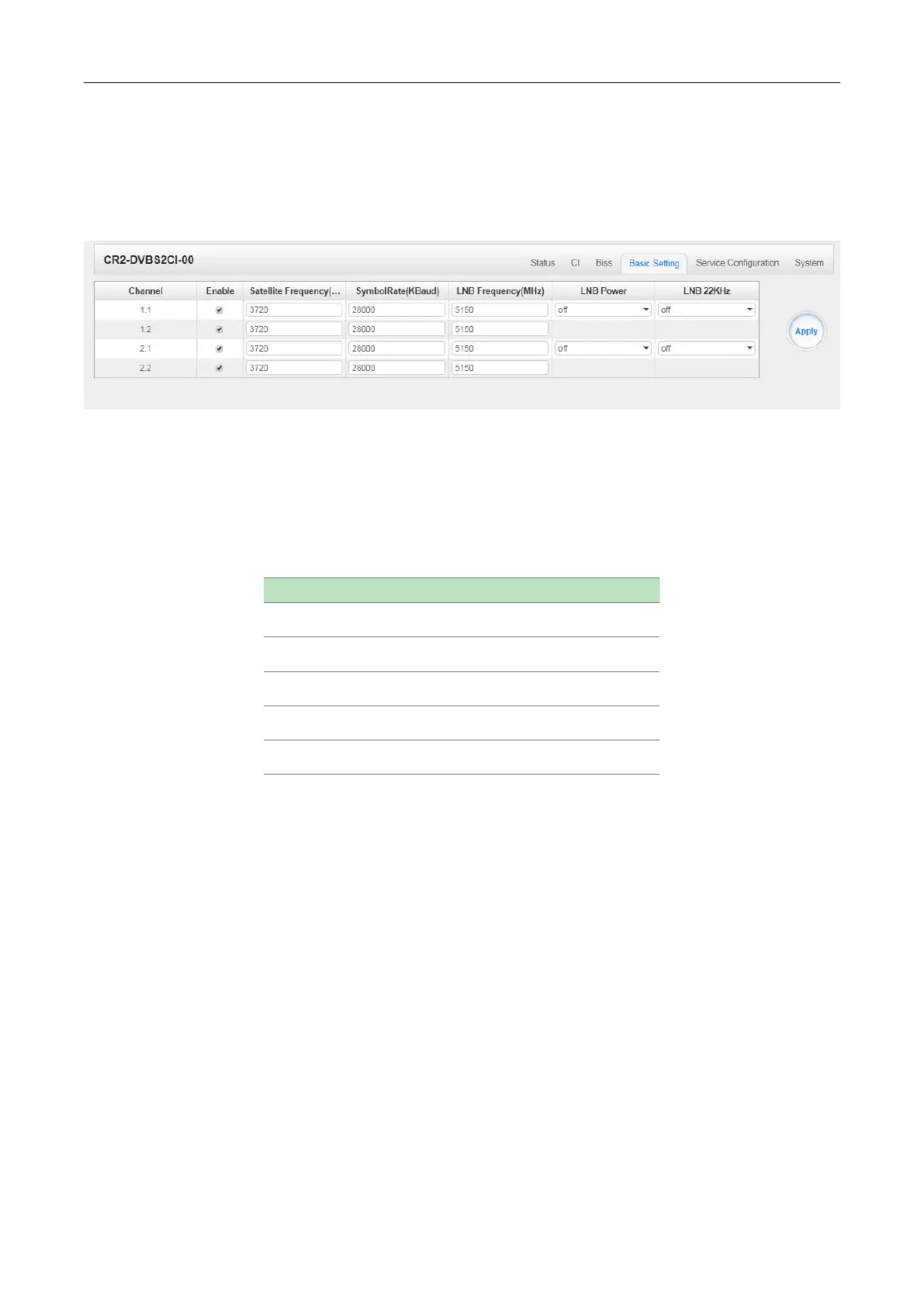

CR2-DVBS2CI-00 >Basic Setting
Channel 1.1 and 1.2 share power with each other via LNB-1. Channel 2.1 and 2.2 share power via
LNB-2.
Name
Range
Satellite Frequency (KHz)
950000~21500000
Symbol Rate(KBaud)
1000~45000
LNB Frequency(KHz)
950000~21500000
LNB Power
Off/13v/18v
LNB 22KHz
Off/22KHz
5.1.3 CR2-DVBS2FTA-00/00A
CR2-DVBS2FTA-00/00A is a 4/8-channel DVB-S/S2 receiving module with 4/8 RF connectors. The
module supports internal signals to pass through from one tuner to the others.
