CMP201D User Guide
it is triggered by external IP or analogue signal, the services(s) will be switched to the AV or ASI
service from EAS module.

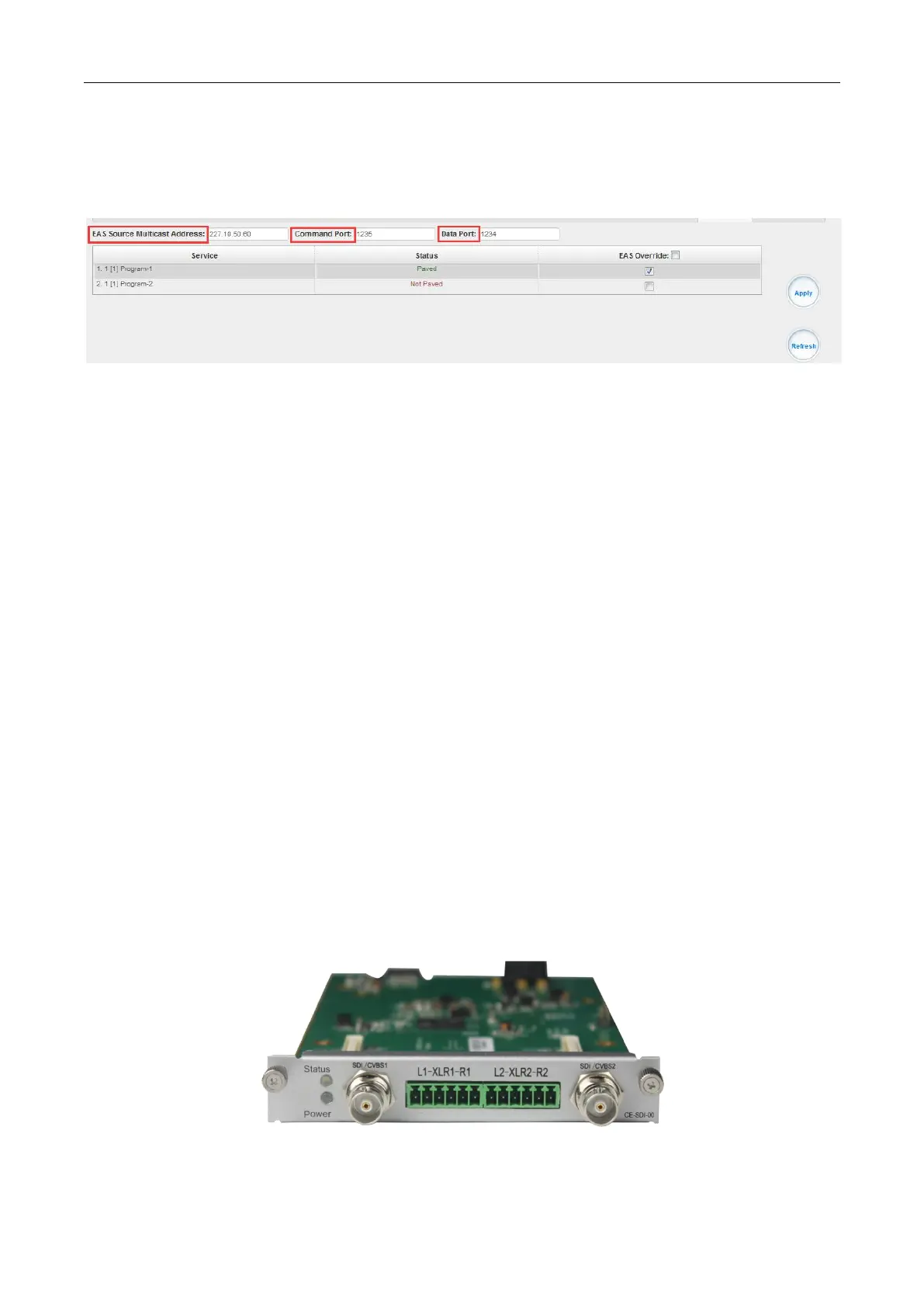

Service: There are 2 programs corresponding to 2 HDMI/Component ports
Status: Paved/Unpaved
EAS Override: Tick the check-box to select the program(s) needing to be paved.
Click the Apply button on the right side to make the change take effect.
CE2-HDMI-02C> System
Please refer to CR2-DVBC/DTMB module.
5.2.4 CE2-SDI-00
CE2-SDI-00 module supports 2CH H.264/AVC HD/SD (up to 1080p60) or MPEG-2 HD/SD (up to
1080i60) encoding via SDI/CVBS input. MPEG1-L2, AAC and AC3 audio encoding are available with
optional licenses (2×BNC, 2×6-pins interfaces (for analog audio inputs)).
