CMP201D User Guide
80
On the System page you can Import/Export License, Reboot module, Reset to Dafaults and
Manage Logs.
5.3 Modulation Output modules
5.3.1 CM2-QAMA-R00/R01/R01A

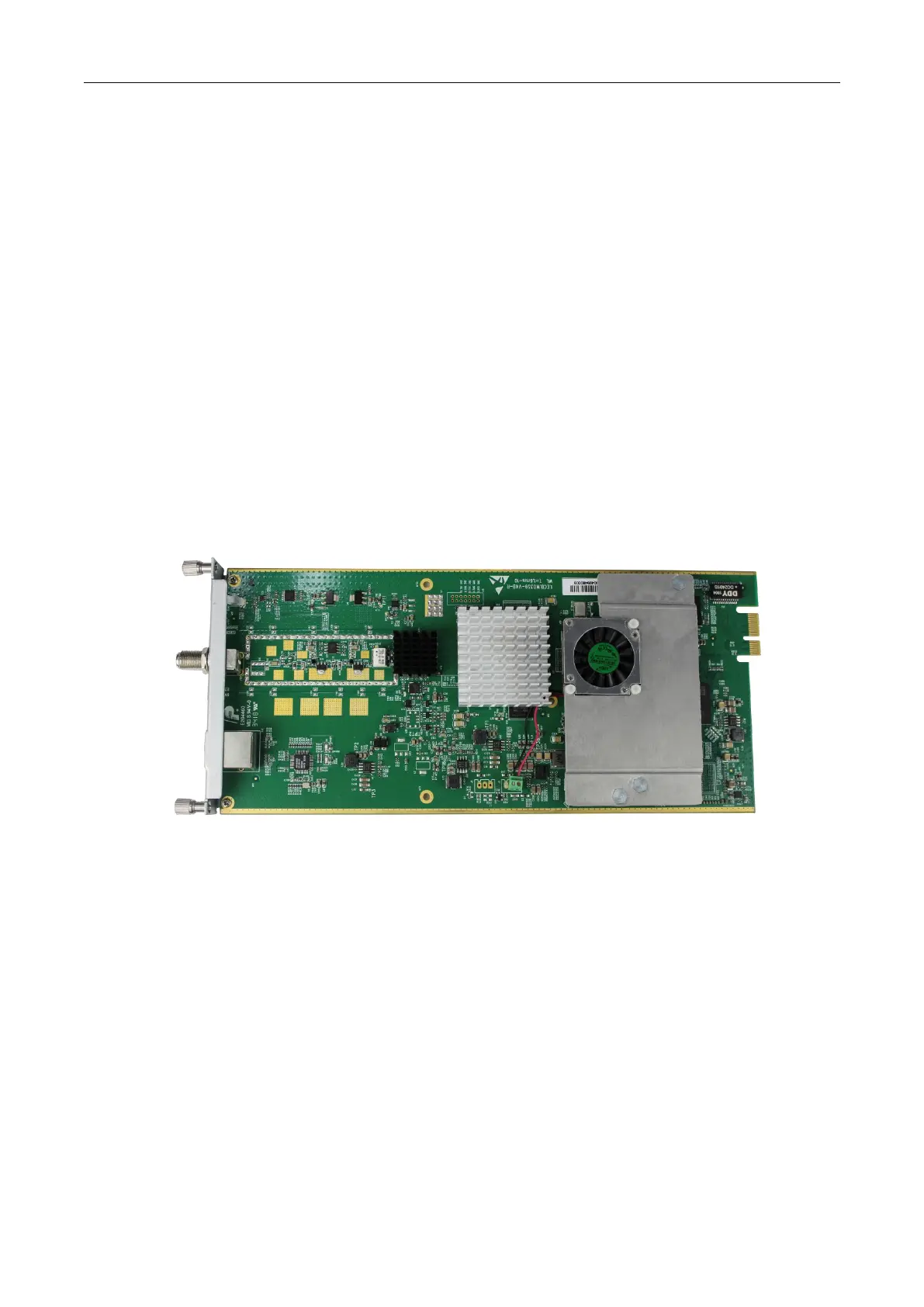

 CM2-QAMA-R00
CM2-QAMA-R00 module supports modulating 16 non-adjacent or channels with 1 RF female port for
modulating output and 1 RJ45 network port is reserved for future use. QAMA and B share the same
Hardware but Different Software. If you need to change the Module from A to B, please contact your
local support for assistance.
Module configuration is similar to IP Setting.
CM2-QAMA-00 >Basic Setting
This page is where you can modify or set the frequency for the RF modulation. CM2-QAMA-00 has
16 non-adjacent channels while CM2-QAMA-R01 has 4 adjacent channels both at single port.
