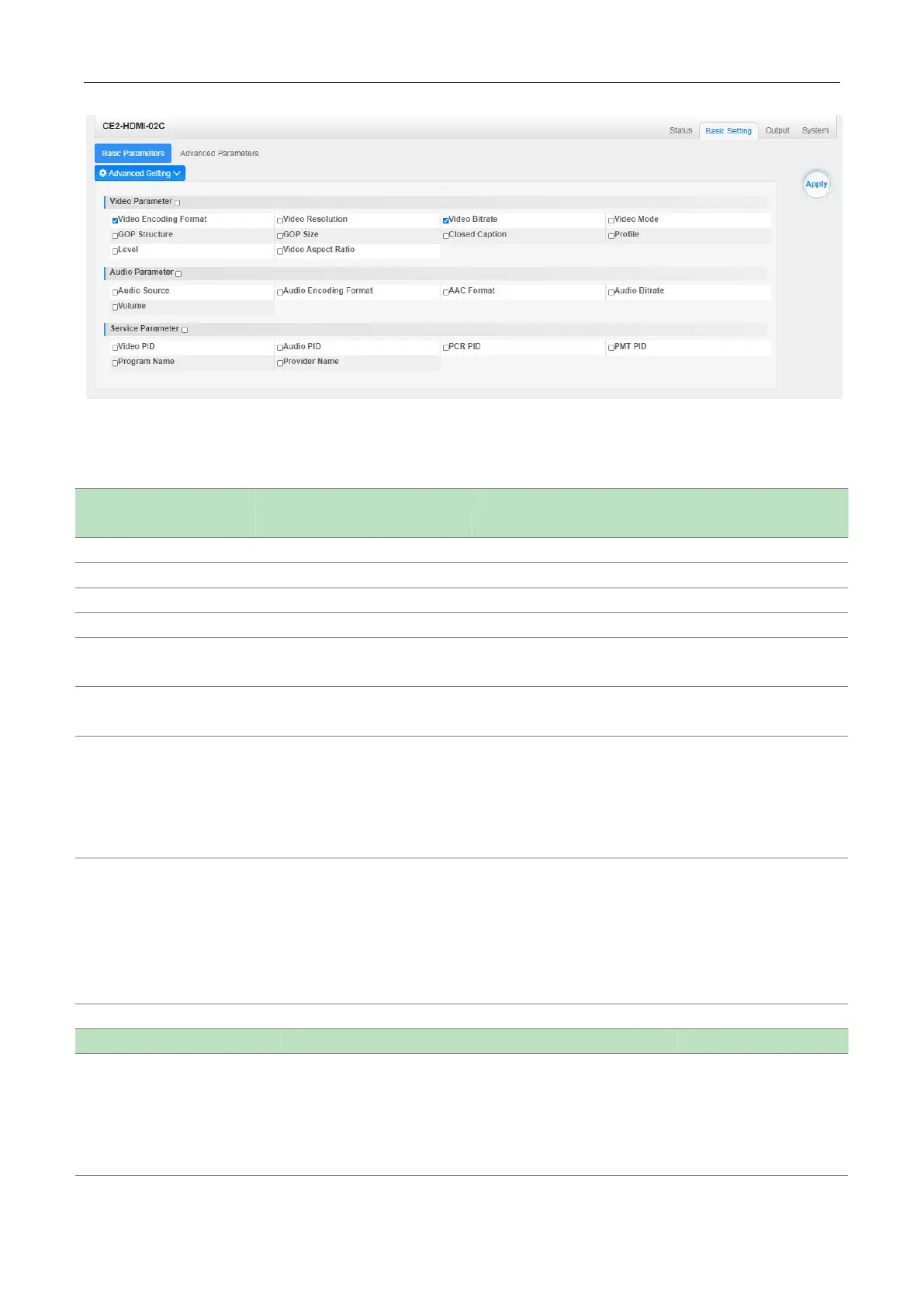

Wellav CMP201D - CE2-HDMI-02 C Status; CE2-HDMI-02 C Basic Settings

CMP201D User Guide
55
Setting Range:
Video Encode
Settings
Range
Name
Range
Input TS Source
HDMI, Component
Video Type
H264 , MPEG2
GOP Size
18~48
Video Bitrate (Kbps)
2000~18000
PCR2 PID
32~8190
Video Mode
CBR
PMT PID
32~8190
Video Max Bitrate
(Kbps)
18000
Service Name
Length is 1~16
Video Min Bitrate
(Kbps)
2000
Service Provider Name
Length is 1~16
CC
Enable
Diaable
Video PID
32~8190
Video PID
32~8190
Video Aspect Ratio
Auto
16x9
4x3
GOP Structure
IBBP, IPPP, IBP
P Frame
IBBP
P Frame: 5~15
IPPP
P Frame: 18~47
IBP
P Frame: 8~23
Audio Encode Settings
Range
Audio Encode Settings
Range
Input Source Type
Audio Source
Audio Type
HDMI
Component
HDMI
Analog
AC3
Audio Bit Rate(Kbps)
128~384 (AC3)
64~384(MPEG1_Lay
er2/MPEG2_AAC/
AC3_Passthrough/
MPEG4_AAC)
