CMP201D User Guide

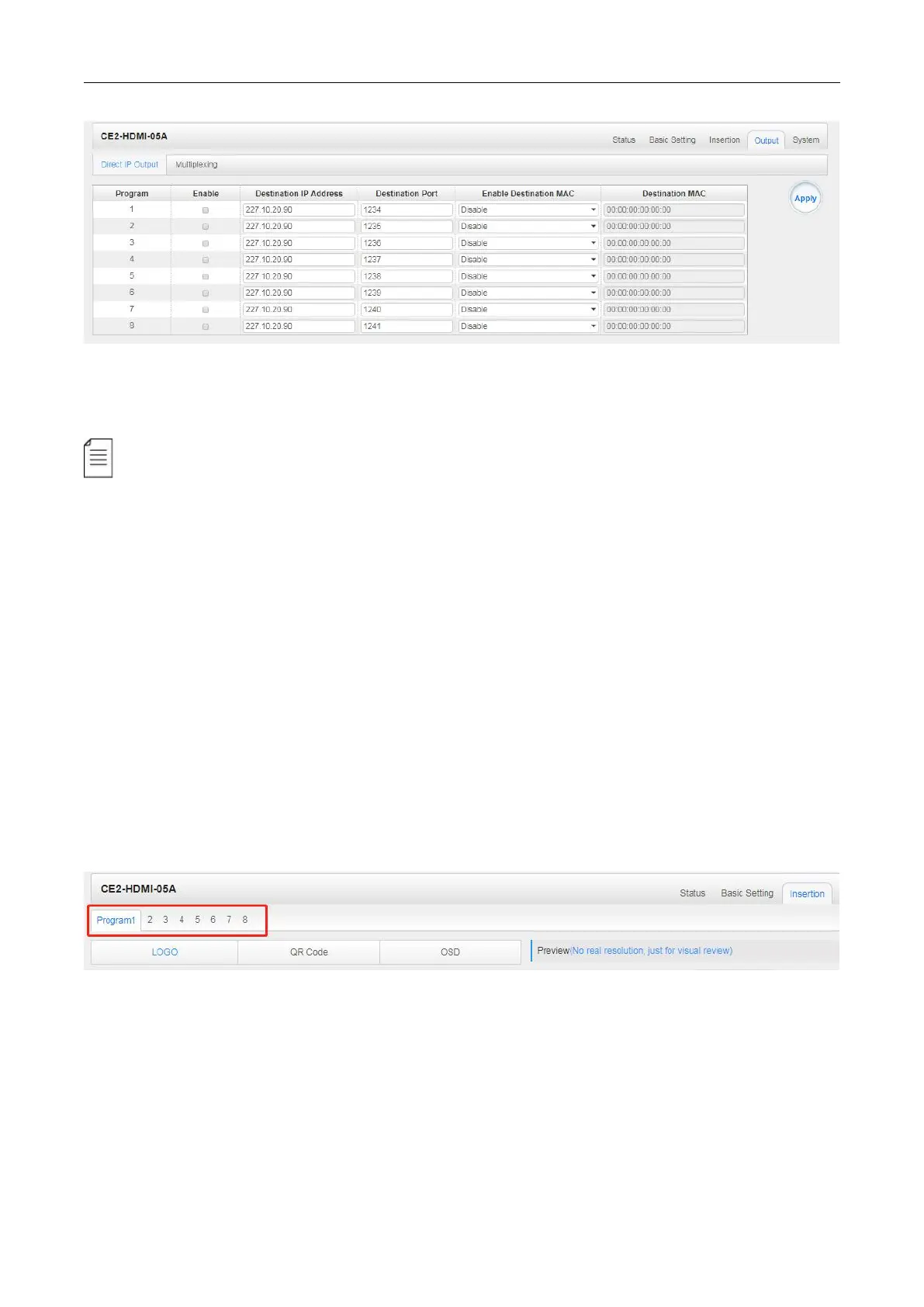

This feature is specifically for single program encoding and IP output directly. Outputting in this way
will not occupy baseboard multicast bandwidth.
If you want to use IP output channel in the encoder module and baseboard IP Output module at
same time, you should avoid the multicast IP address conflict. If there are two same IP addresses
enabled meantime, all the multicast videos will be affected.
Destination IP Address and Destination Port: Using for multicast IP addresses or unicast IP
addresses and ports.
Enable Destination MAC: Generally, you do not need to enable this option. This is reserved for
exceptional cases where the unicast stream cannot be received with unicast IP addresses You
can enable destination MAC and streaming out by setting Destination MAC.
CE2-HDMI-05A >Insertion
You should choose a program first before you set Insertion.
You can preview the effect or make adjustment after you set Insertion.
