CM2-OFDM-R01A>Output

TS setting: Please refer to IP output configuration.


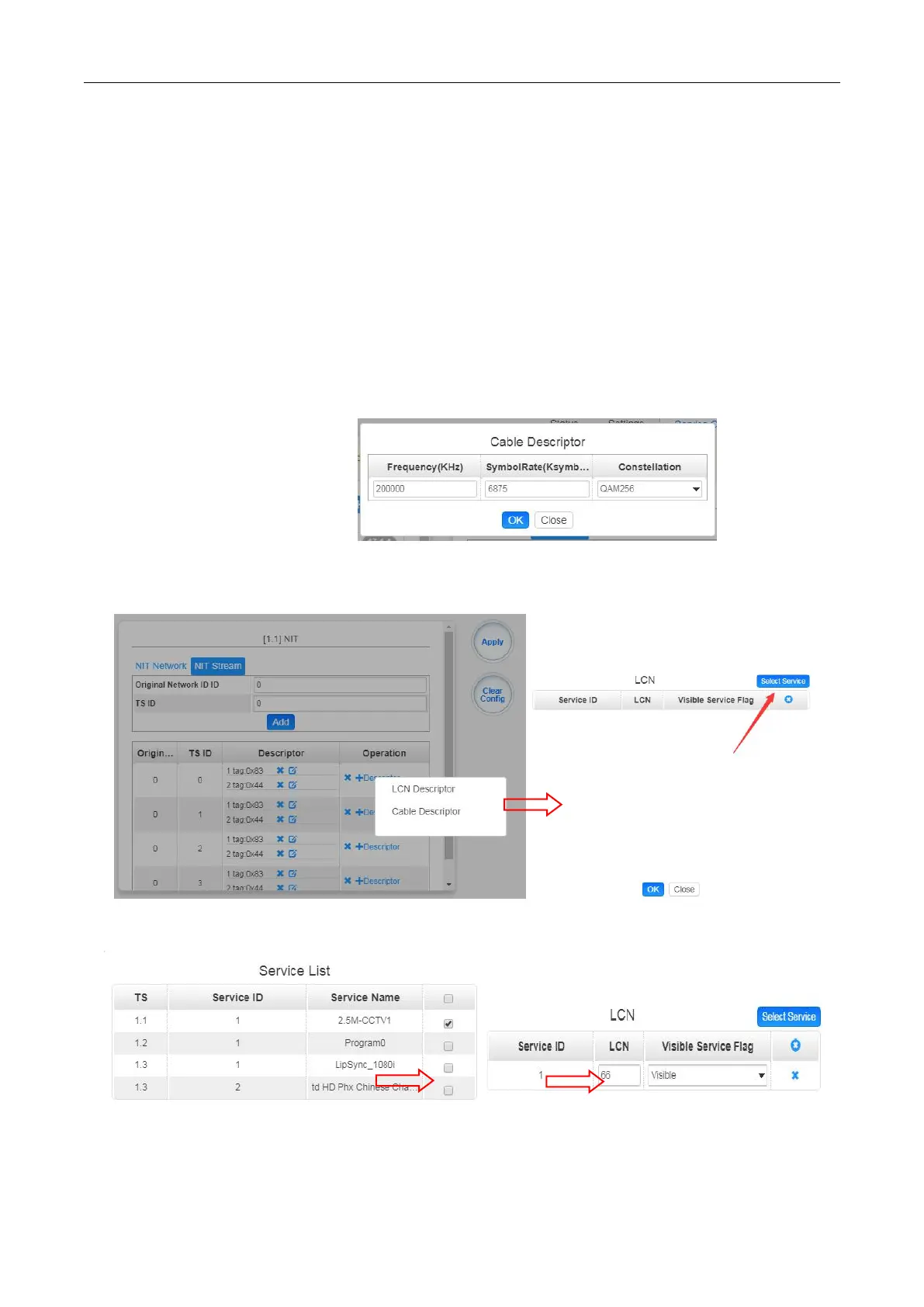

LCN setting: You need to add NIT stream of all frequencies in the base TS (frequency) which is
used for your STB auto search and identifies all the TS (frequencies) LCN information.
 Check or reset Original Network ID and TS ID of each TS (frequency). Each TS should have
different IDs.
 Fill the Original Network ID and TS ID of each TS (frequency) in the field of the base TS
(frequency) and then click Add to create a NIT stream for this TS (frequency).

Click +Descriptor and Cable Descriptor. Then fill in the correct frequency and
symbol rate and choose the correct constellation of the TS (frequency) and then
click OK (this operation should be set on Modulator module only).
 Click +Descriptor and add the LCN Descriptor to check all the programs which are
contained in this frequency. Then set programs LCN.
