4. Part Replacement
4.6 Drive Assembly Replacement
a. Find the latch release mechanism on the Drive Assembly being removed.
b. Insert a finger and a thumb into the latch release and pinch to unlatch the Drive Assembly.

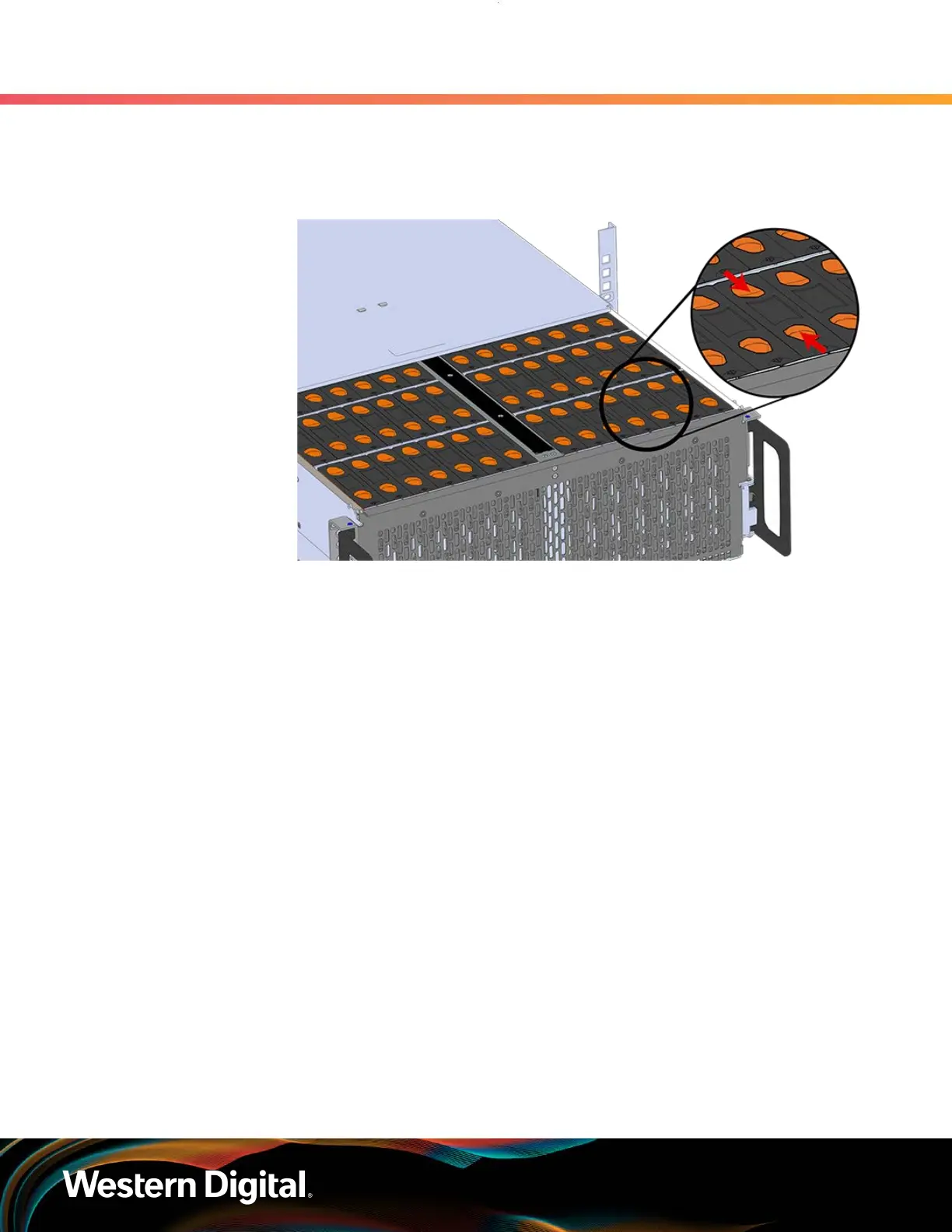

Figure 62: Unlatch Drive Carrier (IOM Not Shown)
c. Lift the Drive Assembly free from the enclosure.
