Lit. No. 95748/95749, Rev. 04 13 January 1, 2017

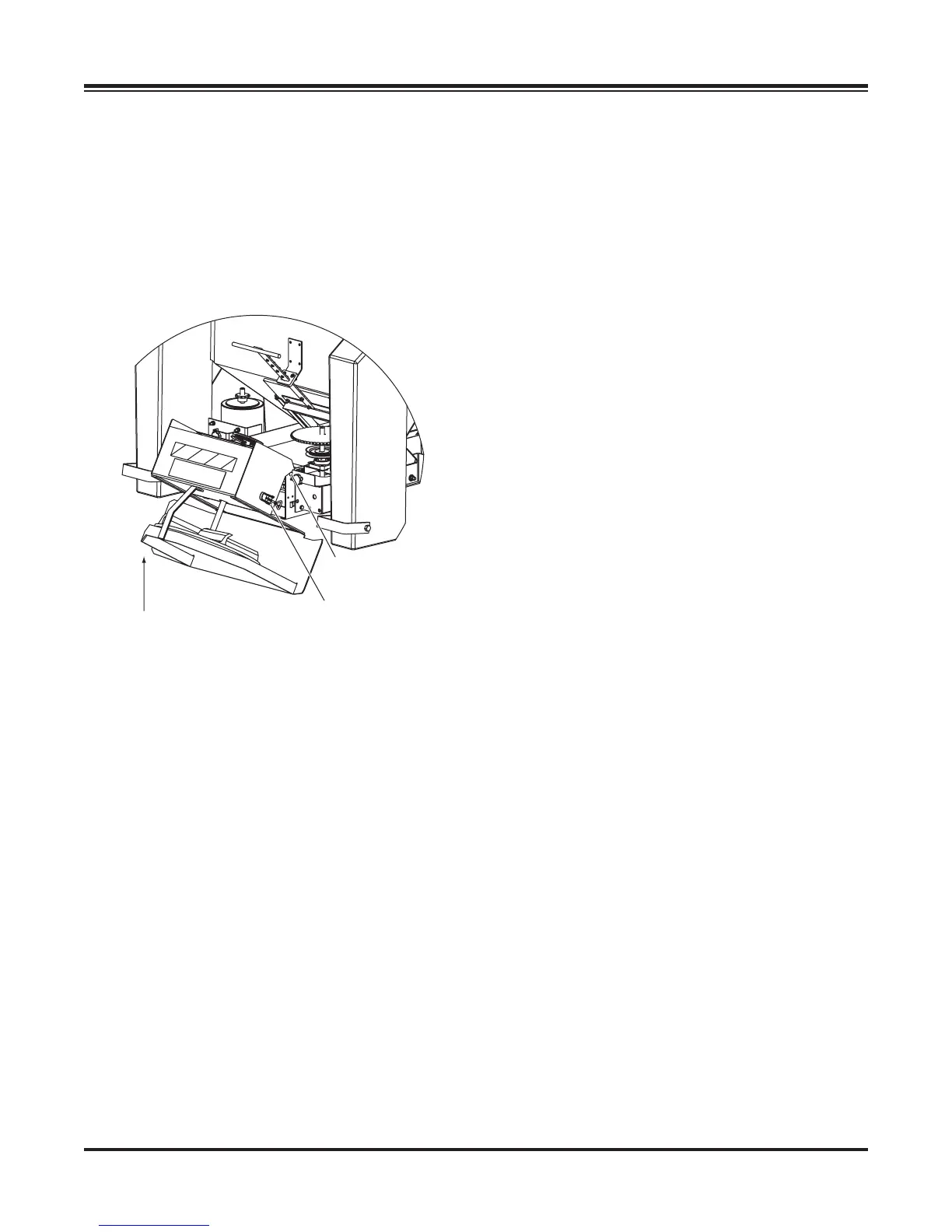

Draw Latch
Cross Shaft
Lift up to loosen belt.
MOUNTING THE SPREADER
4. To remove the chute:
a. Release the two draw latches that hold the
chute to the sill; rotate the bottom of the chute
up to loosen the drive belt.
b. Remove the belt from the spinner shaft pulley
and lift the chute off the cross shaft.
5. Position spreader on its feet at the rear of the
truck.
6. Tip the spreader toward the truck until the sill rests
on the rear edge of the truck bed.
7. Lift the rear of the spreader and slide it into the
truck bed. Two or more people are recommended
for this task.
8. Center the spreader in the truck.
9. To assemble the chute to the spreader:
a. Hook the chute hooks over the cross shaft.
b. Rotate the chute up, position the V-belt over
the two pulleys.
c. Lower the chute and fasten it to the sill by
connecting the draw latches. (Refer to the
illustration in Step 4.)
