Page 10 | 1-800-343-9463
PS 020713

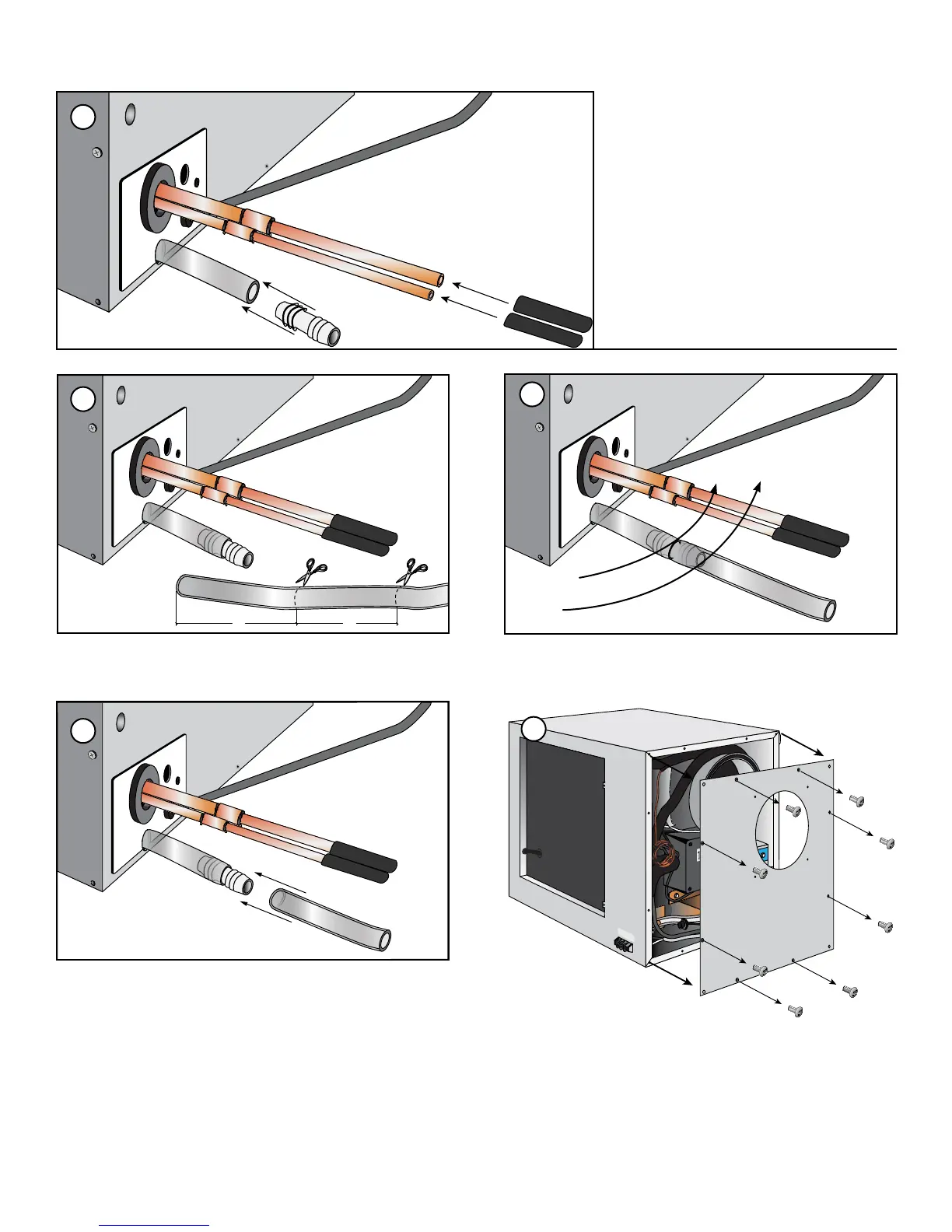

PREPARING THE EVAPORATOR UNIT (FAN COIL UNIT)
Cut supplied drain tubing at a length long enough to extend
past exterior wall and a second piece three inches long.
Rotate the unit to access the side panel.
Remove the side panel by removing the eight Phillips head
screws around the parameter of the side panel. Set the side
panel and screws aside.
length to extend past wall
3”
Place the caps removed in step 1 onto
the ends of the lines to avoid debris from
entering the lines, followed by inserting the
barbed coupling into the drain line at the
rear of the unit.
6
10
7
8
9
Set the three inch piece aside and attach the piece of tubing
that was cut to go through the wall to the end of the barbed
coupling.
