Fuel Line Kit Installation Procedure
07-01-03

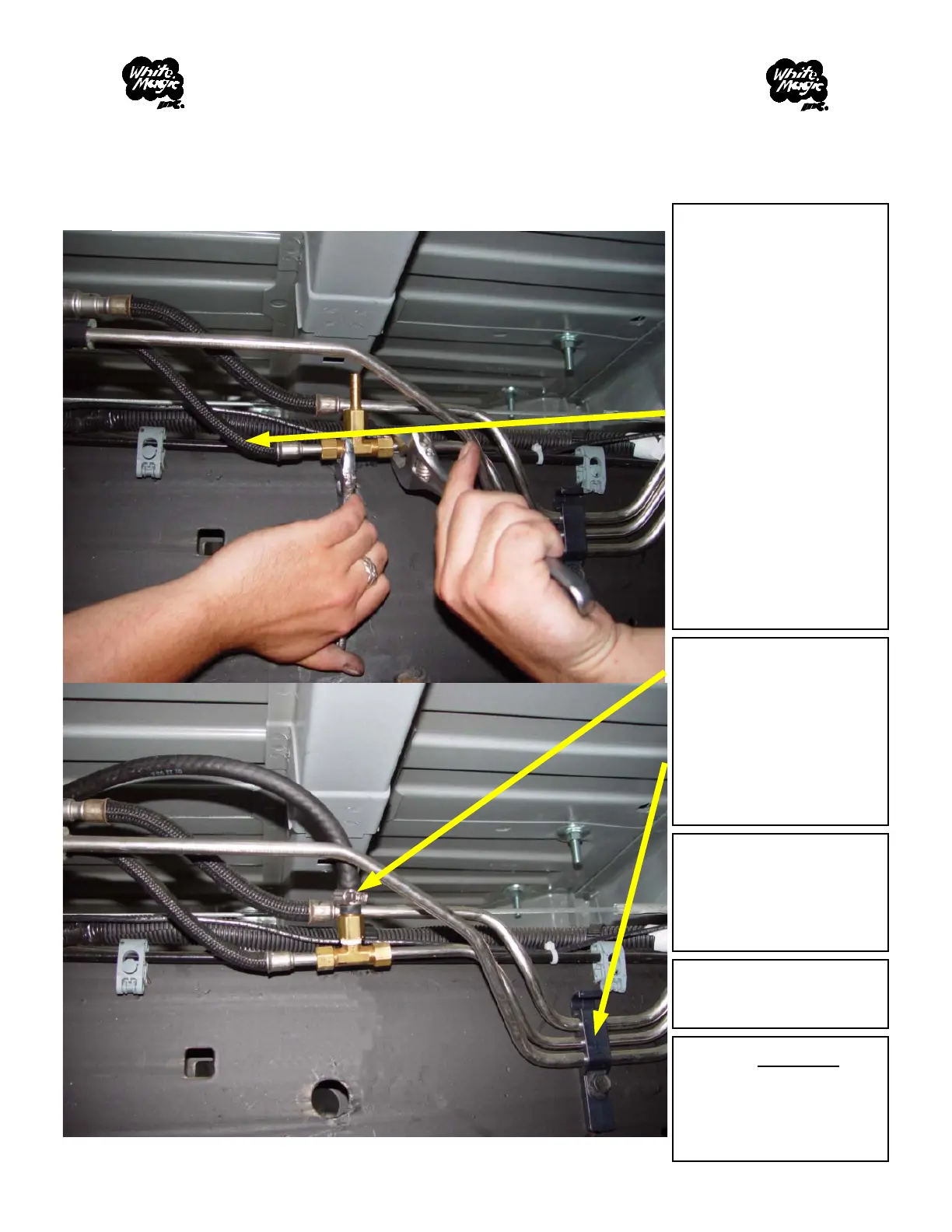

6.) Install the
(PN#B192) Compres-
sion Tee and the
(PN#E090) 1/4” barb
X 1/4” FPT .
If this hose has a ten-
dency to kink, it may
be necessary to remove
a small section of tube.
(See Fig. 3, 4)
Tighten the compres-
sion nuts with barb
pointing upward.
(Fig. 5)
6.) Route the fuel line
to the barb and secure
using a (PN#B029)
1/4” SS hose clamp.
Also re-tighten the
clamp holding the fuel
lines.
Fig. 5
Fig. 6
7.) Carefully check for
leaks by running van
engine for a few min-
utes.
NOTE: NEVER run
your carpet cleaning
machine with van en-
gine running.
8.) Turn machine on to
assure good gas flow.
