WHYTE Service Manual

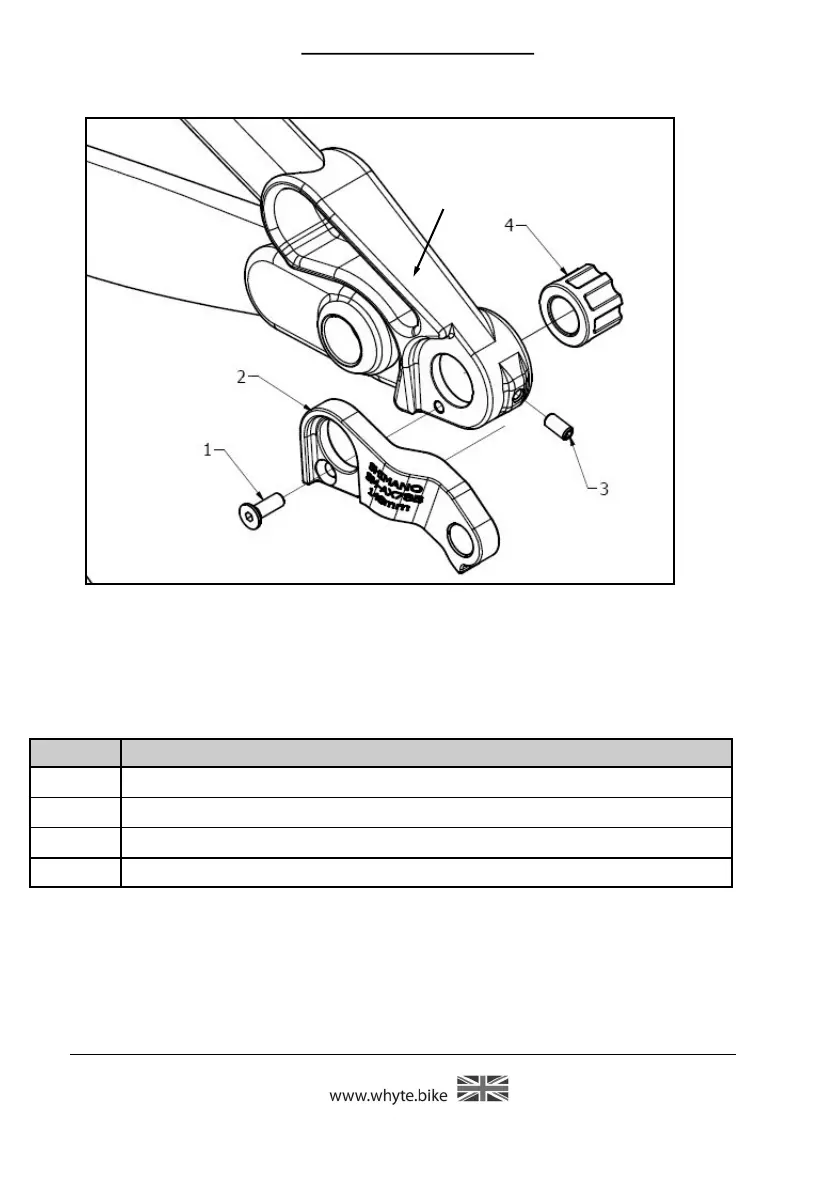

Figure 11: Whyte Dropout Assembly,
For Shimano E-Thru
18
Remove the Rear Wheel and using the Torque Wrench, tighten the M4 Countersunk
Head Screw (3) to the correct Torque as specified in Section 10.0. Also tighten the
M5 Countersunk Head Screw (2). DO NOT OVERTIGHTEN, since the thread of the
Screws (2) & (3) are very small. Finally, if necessary, re- adjust the SRAM Maxle
Rear Axle as per the SRAM User Manual 95-4315-004-000.
Item Description
1 M4 x 16mm long Countersunk Head Screw
2 Rear Derailleur Hanger, for Shimano E-Thru Direct Mount (Grey Colour)
3 M4 x 8 long Grub Screw.
4 Axle Nut, for Shimano E-Thru
