WinGD X62DF-S2.0 User Manual

Marine Installation Manual 2022-03 4-79
4 Ancillary Systems
4.7 Fuel oil system
X62DF-S2.0
Fuel oil filter — Arrangement ‘B’
A maximum 10 m abs. filter of automatic self-cleaning type is installed in the
'hot' booster system close to engine inlet. The filter needs to be laid out for a max-
imum working temperature of 150 °C.
Same filter specification as provided by Table 4-12,  4-77.

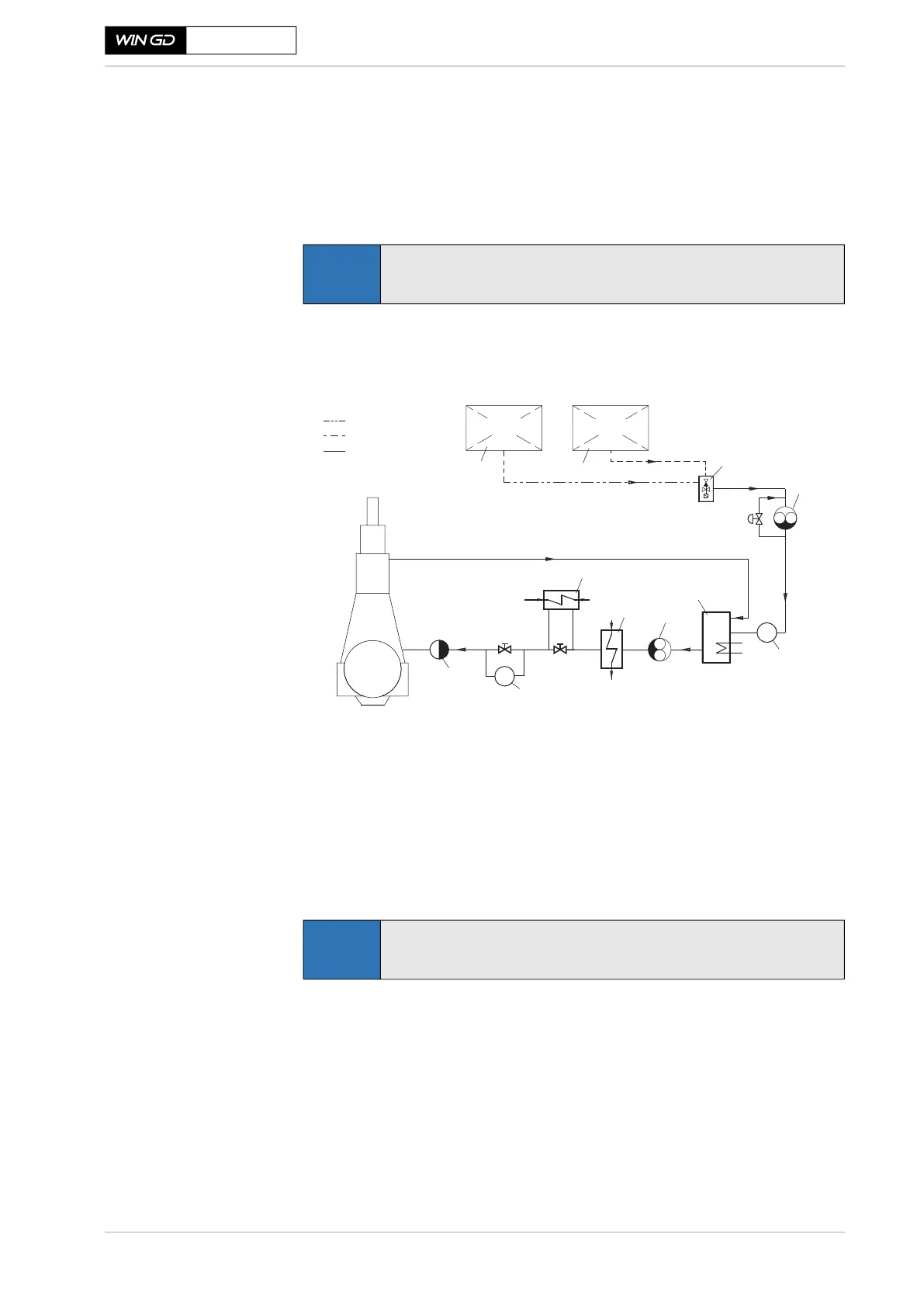

Figure 4-49 Fuel oil filter arrangement ‘B’
Arrangement ‘B’ does not include secondary duplex filtration. It lacks the indi-
cation of overall performance of the fuel oil treatment system and gives no indi-
cation when the automatic self-cleaning filter fails.
NOTE
The self-cleaning performance must be suitable for the required filter
fineness.
NOTE
WinGD recommends Arrangement ‘A’, as this is a best practice solu-
tion.
SM-0214
Main
Engine
LT Cooling
water system
1 HFO/LSHFO settling, storage and separation system
2 MDO/MGO settling, storage and separation system
3 Automatic fuel changeover unit
4 Feed pump - Low pressure
5 Automatic self-cleaning filter
6 Flow meter
7 Fuel oil mixing unit
8 Booster pump - High pressure
9 MDO/MGO heat exchanger
10 FW Fuel oil cooler
11 Viscometer
FM
PRV
5
7
4
8
10
6
3
1
2
Pm
9
HFO/LSHFO
MDO/MGO
HFO/LSHFO piping
MDO/MGO piping
Common piping
V
11
