Marine Installation Manual 2022-03 1-12

1 Engine Summary

1.3 Fuel operating modes

X62DF-S2.0

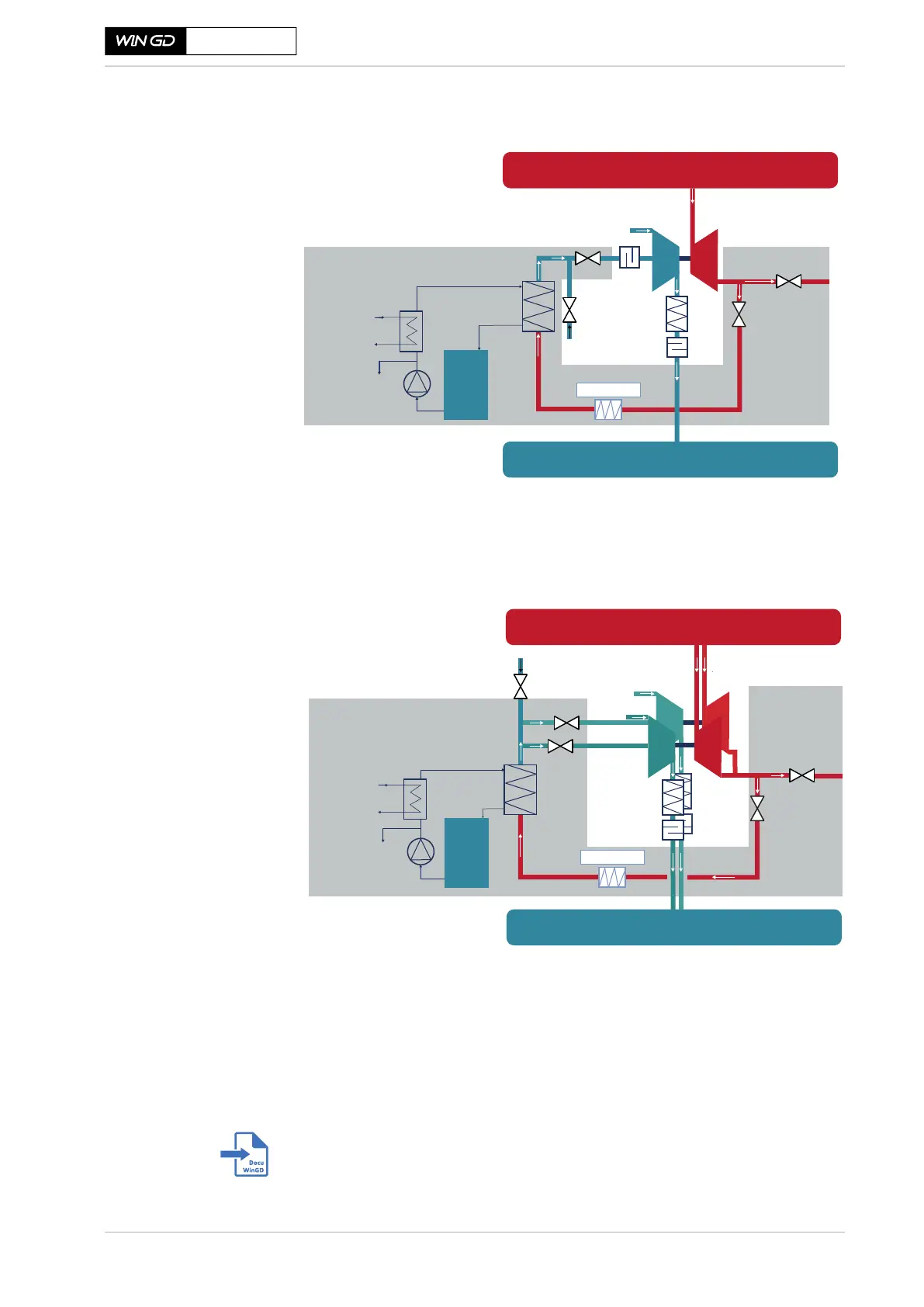

Figure 1-6 The iCER system with one turbocharger

Figure 1-7 provides a schematic of the iCER system with two turbochargers.

Figure 1-7 The iCER system with two turbochargers

The introduction of the iCER system, as part of the X-DF2.0 portfolio, increases

the competitiveness of the engine with increased fuel efficiency and reduced en-

vironmental impact.

For full details of the iCER system, as well as links to associated system informa-

tion and drawings, see section 4.2 The iCER,  4-4.

For additional details on the iCER installation, see the

iCER Installation Guideline

SM-0573

EGC: Exhaust Gas Cooler

FRV: Flow Regulating Valve

SOV: Shut-Off Valve

BPV: Back Pressure Valve

PHE: Plate Heat Exchanger

SAC: Scavenge Air Cooler

WMC: Water Mist Catcher

Scavenge air receiver

Circ.

Tank

SOV

FRV

Exhaust gas receiver

EGC

Return

Water spray

PHE

(Economiser)

Circulation pump

Bleed-off

Seawater in

Seawater out

BPV

SAC

WMC

Purge

air (in)

WMC

Colour code

White area: Components installed on the engine

Grey area: Components installed in

the engine room

SM 0774
