WinGD X62DF-S2.0 - Principal Engine Dimensions and Weights; Principal Engine Dimension Values; Principal Engine Dimensions

Marine Installation Manual 2022-03 1-7
1 Engine Summary
1.2 Primary engine data
X62DF-S2.0
1.2.2 Principal engine dimensions and weights

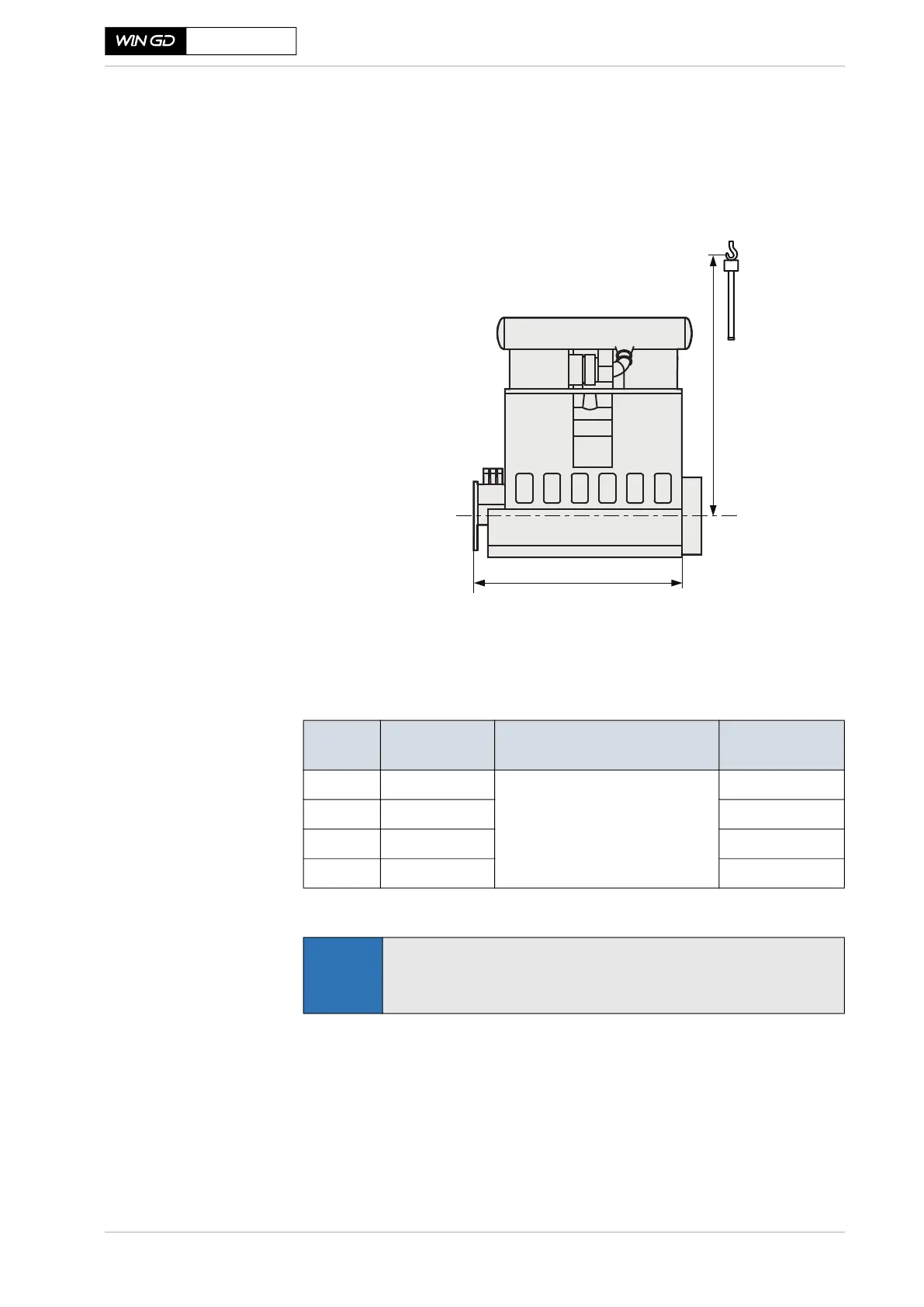

Figure 1-2 Principal engine dimensions
For more details about sizing, specific dimensions and masses, see section
3.1 Engine dimensions and masses,  3-1.
Table 1-5 Principal engine dimension values
No. of
cylinders
Length A [mm]
Piston dismantling height F1
a)
(crank centre - crane hook) [mm]
a) For F2 and F3 (piston removal with double-jib crane) see Table 3-1,  3-1.
Dry weight [t]
5 6,260
10,300
280
6 7,260 325
7 8,260 370
8 9,260 415
NOTE
The dimensions and masses provided in the above table are not
binding. For prevailing data refer to the relevant drawings, which are
updated on a regular basis.
SM-0577
A
F1
