Marine Installation Manual 2022-03 4-118
4 Ancillary Systems
4.13 PTO, PTI, PTH and primary generator applications
X62DF-S2.0

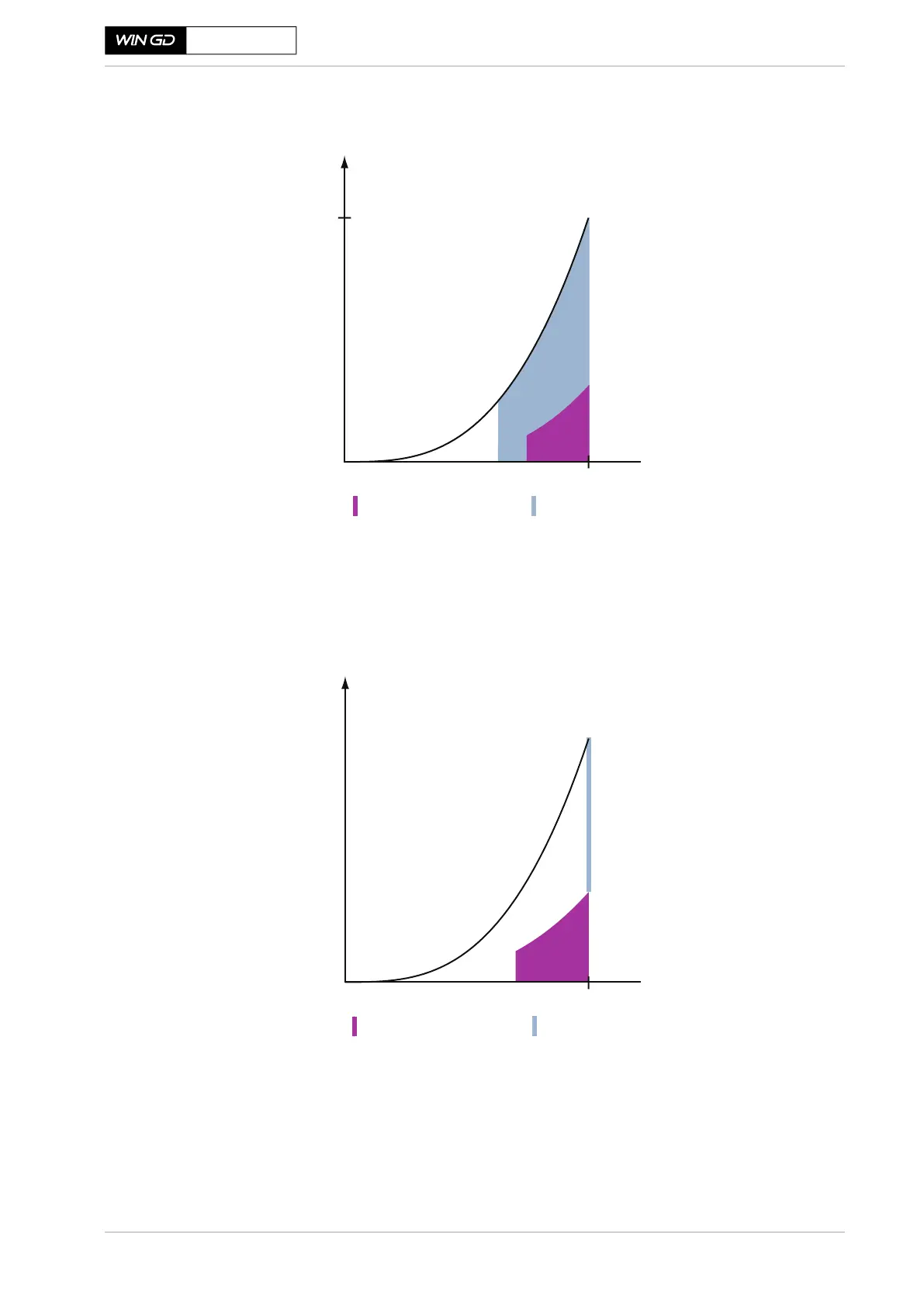

Figure 4-70 CPP in combination with an optional frequency converter
Figure 4-71 CPP in constant speed operation without frequency converter
SM-0202
100%
0%
0% 100%
speed
power
power
curve
Valid for CPP with a
frequency converter.
Applicable to options:
2, 6, 8, 10, 12, 14
operation area
prohibited operation area
SM-0203
Valid for CPP without a
frequency converter.
Applicable to options:
2, 6, 8, 10, 12, 14
100%
0%
0% 100%
power
speed
prohibited operation area
operation area
