Winterhalter C50 - Mains Cable Installation and Wiring

30
Mains cable
 Select the cable cross section of the mains cable in accordance with the total connected
load of the machine as indicated on the machine rating plate.
 The mains cable must be an oil-resistant, encased and flexible wire. We recommend the
wire type H07RN-F.
 Pass the mains cable through the cable gland on the underside of the base plate.
 Connect the cable to the correct phases at the indicated connection terminals (N, L3,
L2, L1, PE) so that the rotating field of all motors is clockwise.

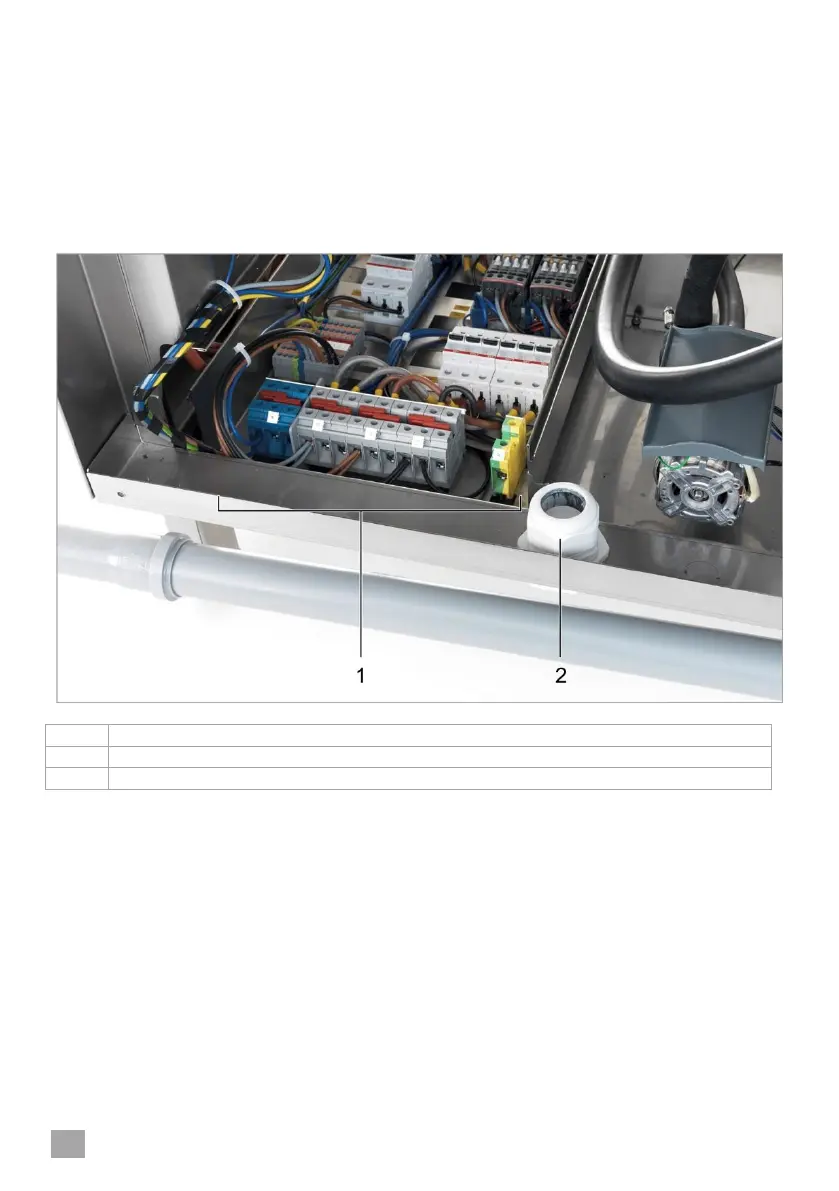

Item
Description
1
Connection terminals (N, L3, L2, L1, PE)
2
Cable gland for mains cable
INFO At 200 V or 230 V without a neutral conductor (N), the blue terminal is not avail-
able.
