5 Mode of operation
After the machine is switched on, the boiler and the tank are filled and warmed up to the
operating temperature. Once the operating temperatures are reached, the machine is
ready for use. The wash racks are transported through the machine by means of push bars.
6 Overview

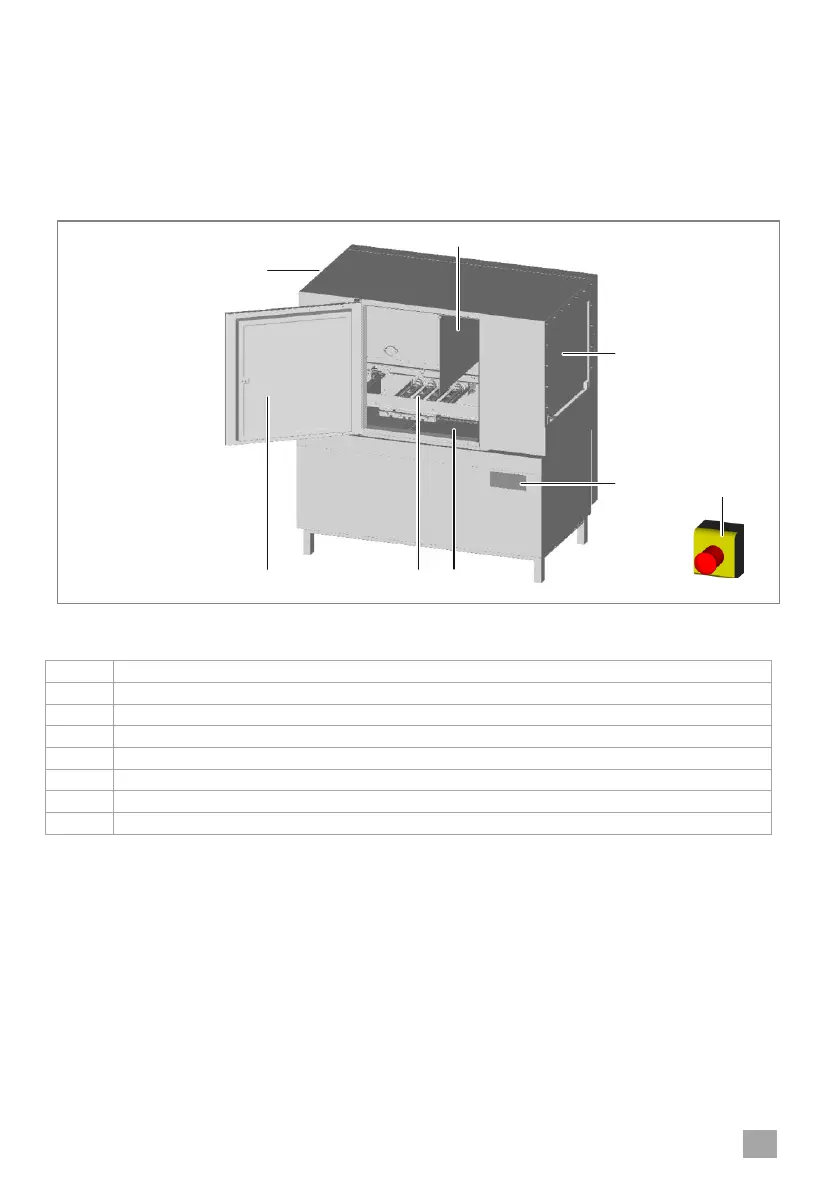

Figure: Basic machine with single rinse and a pass-through direction of “left-right”.
Optional versions can be found on page 7.
Item
Description
1
Long curtain (length: 520 mm)
2
Display
3
Strainer
4
Wash arms (top: 5; bottom: 4)
5
Door
6
Short curtain (length: 420 mm)
7
Emergency-stop button (optional)
INFO Machines with dual rinse additionally have a strainer and two wash arms in the
rinse zone.
Machines with a pre-cleaning zone have 2 additional wash arms and a long cur-
tain.
