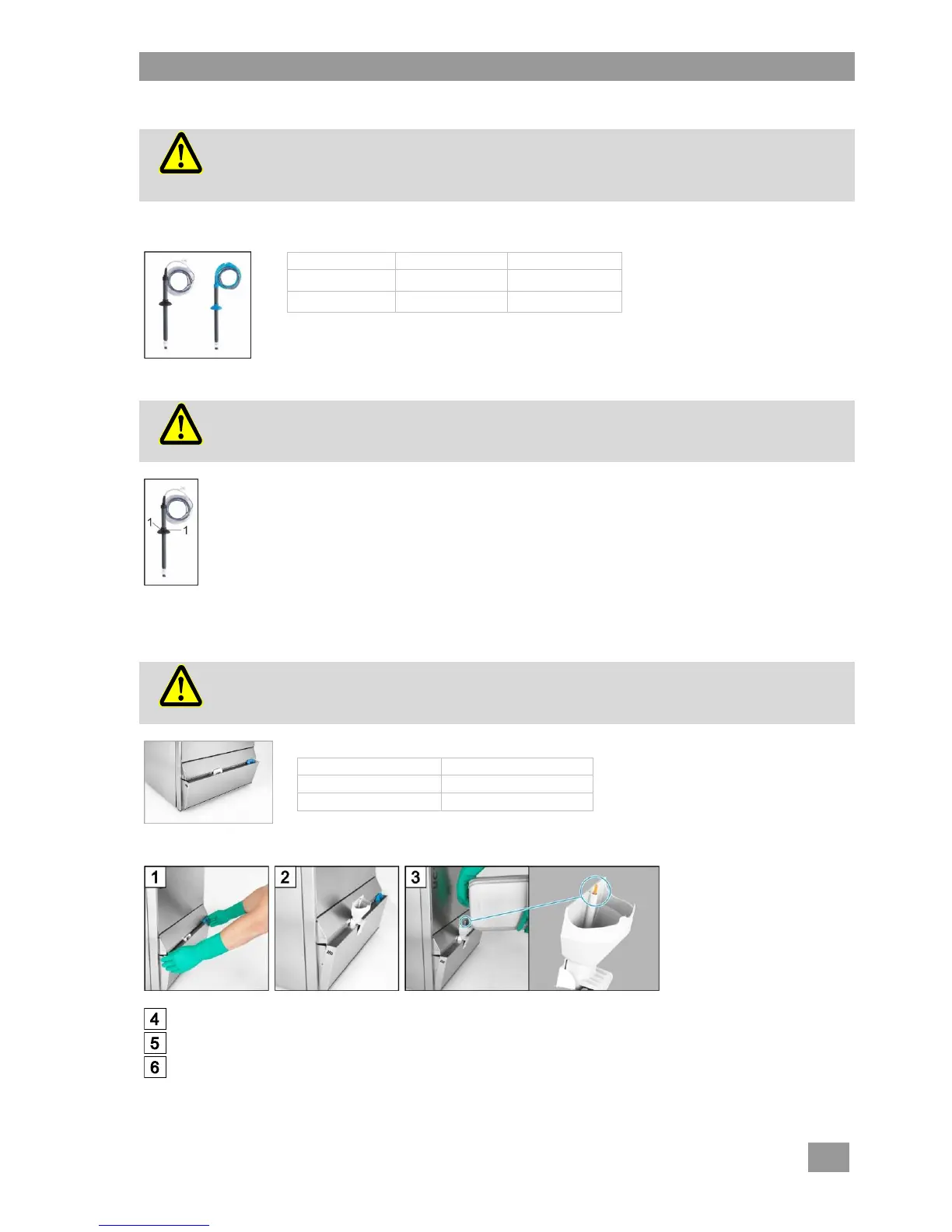

Rinse aid and detergent
25
Variant A: External containers and suction tubes
Caution
 Do not place the suction tube for the rinse aid in the container with detergent or vice versa.
 Only use the suction tube with sufficiently stable containers. Narrow and tall containers can
tip if you pull on the suction tube.
 Do not pull on the dosing hose or main power cable, as this may lead to a defect.
Optionally, you may receive one or more suction tubes with your machine:
Cap colour
Hose colour
Container
Blue
Blue
Rinse aid
black
transparent
Detergent
Changing the container
Caution
Possible risk of chemical burn
Wear protective clothing, protective gloves and protective goggles when handling chemicals.
 Take the suction tube out of the empty container.
 Ensure that both vent holes (1) in the caps are open.
 Place the suction tube in the new container.
 Slide the cap downwards until the container opening is closed.
Variant B: Integral storage tank
Storage tank
Caution
Do not fill rinse aids in the storage containers for detergents and vice versa.
Flap colour
Storage tank
White
Detergent
Blue
Rinse aid
Pour in liquid detergent and rinse aid
 Remove the funnel.
 Fold back lower body panels.
 Wash the funnel in the warewasher to rinse off any chemical residues.
