Installing the machine
35
15 Installing the machine
The installation site must be frost-resistant to prevent the water supply systems from freezing.
 Install the machine horizontally using a spirit level.
 Adjust the base unevenness using the height-adjustable machine feet.
16 Connecting the machine
Warning
The machine and any other relevant additional devices must be connected in adherence to
local standards and regulations by an electrical company authorised by the relevant electricity
supplier.

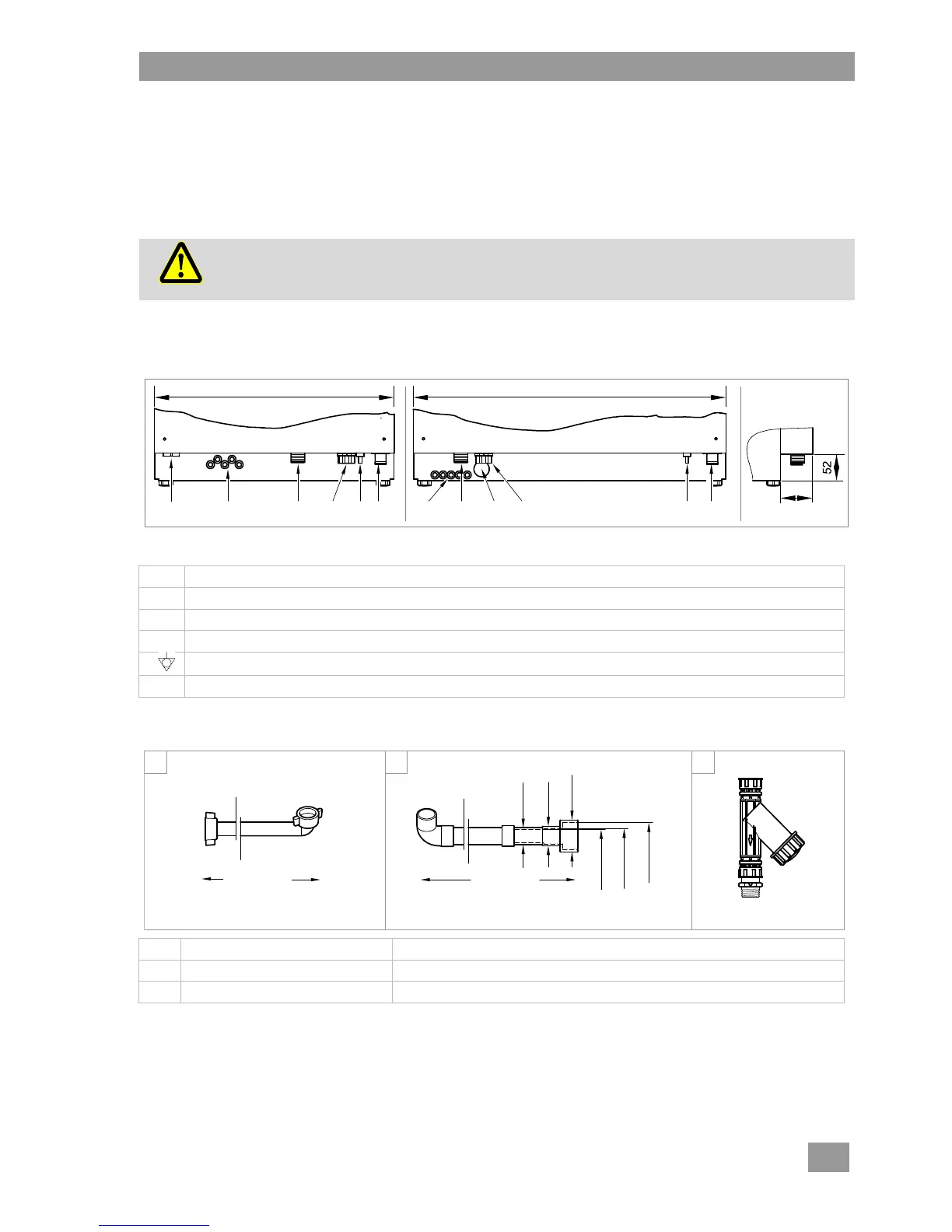

16.1 Location of connections on the machine
UC-S
UC-S Energy
UC-M, UC-L, UC-XL
UC-M Energy, UC-L Energy, UC-XL Energy
Rear view
Right view
EZ
Entry for mains cable
DOS
Port for hoses (detergent / rinse aid) and cables
TWw
Inletwaterconnection(G¾“,externalthread)
LAN
Connection for patch cable CAT.7 (socket RJ45); (if the machine is to be networked)
P
Connection for on-site equipotential bonding system
A
Waste water connection; drain pump installed
16.2 Accessories
1
Flexible supply hose
connect to point TWw
2
Flexible drain hose
connect to point A
3
Dirt trap
Install between the water supply and the supply hose
62
PTWwEZ DOS A
460
TWwDOS P A
600
LAN EZ LAN
G 3/4" G 3/4"
G 3/4"
1500 mm 1500 mm
Ø 24 Ø 28
Ø 46
Ø 18,5 Ø 22,2
Ø 39,7
G 3/4"
1 2 3
