Connecting the machine
37
16.5 Connecting the supply hose
Caution
Do not shorten or damage the hose.
Old existing hoses may not be re-used.
Do not bend the hose when laying it.
The supply hose and dirt trap are located in the machine.
INFO The dirt trap prevents particles from the water supply line from entering the machine, thus prevent-
ing extraneous rust on the dishes and in the machine.
 Connecting the supply hose (TWw) to the ma-
chine.
 Connect the dirt trap to the on-site water supply.
 Connect the supply hose to the dirt trap.
 Open the water supply and check whether the
connections are closed.

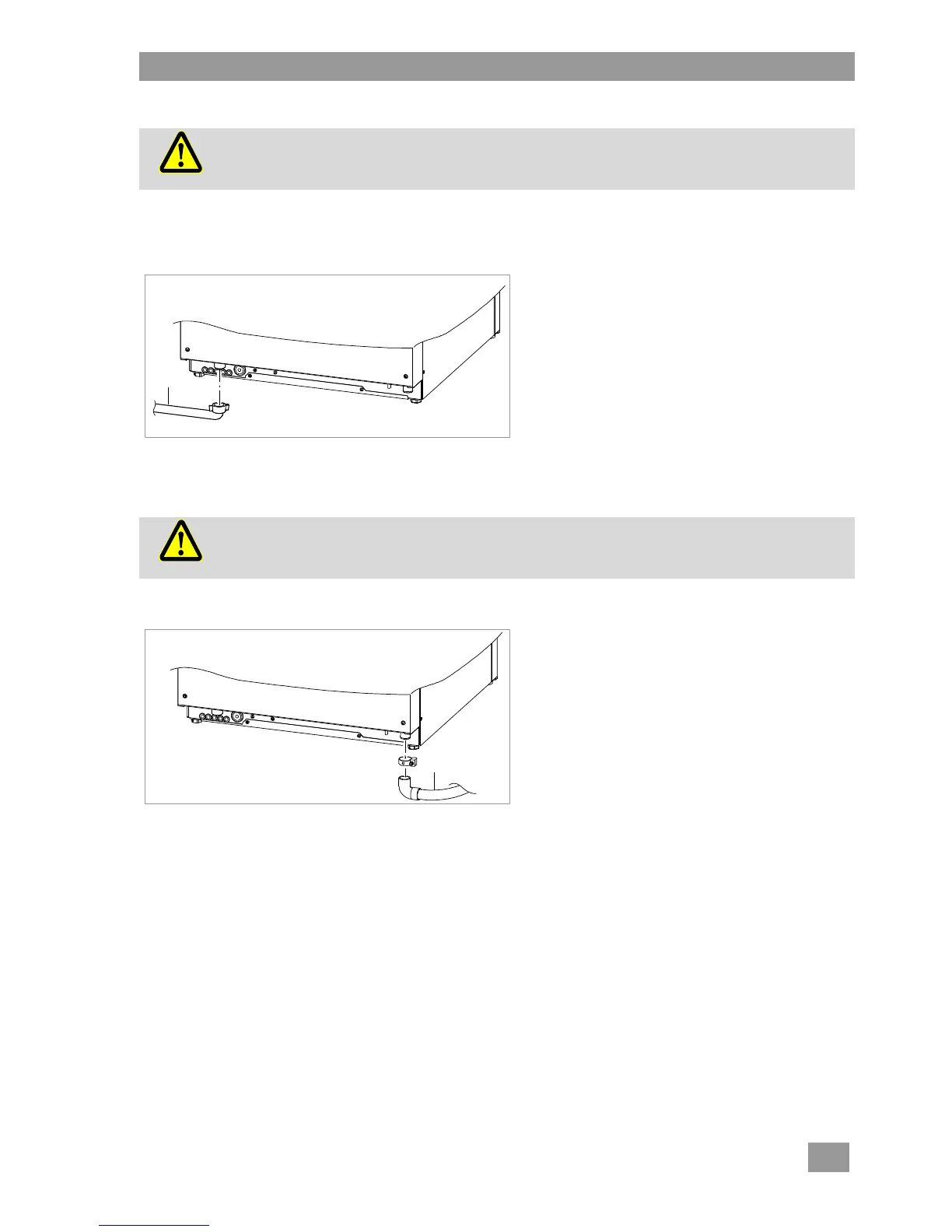

Rear view
16.6 Connecting the drain hose
Caution
Do not shorten or damage the hose.
Do not bend the hose when laying it.
The drain hose is located in the machine.
 Connect the drain hose (A) to the machine.
 Connect the drain hose to the on-site water
drain.
Rear view
TWw
A
