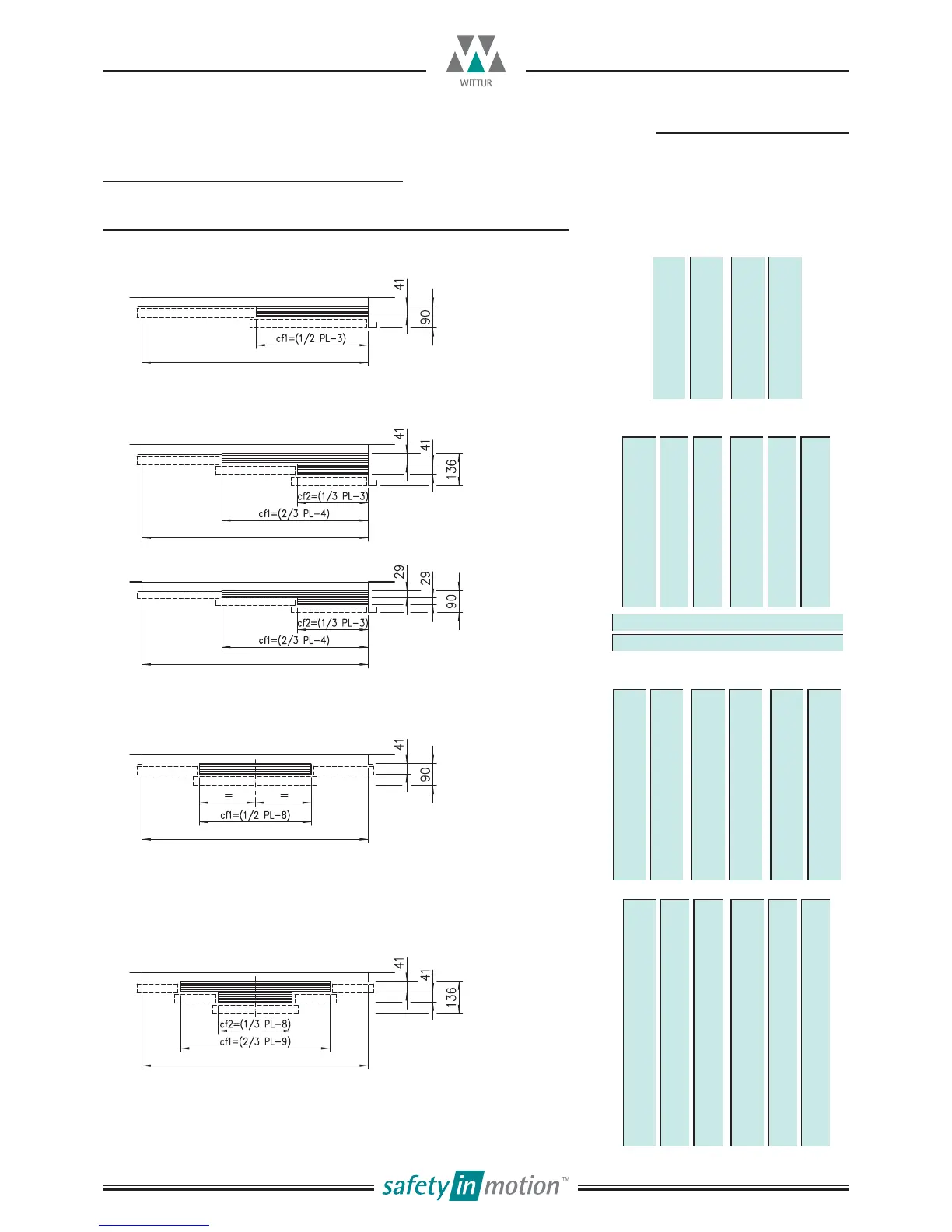

CAR DOOR INFILL PANEL SCHEDULEXXXXXXXXXXI
TABELLA DIMENSIONI COPRIFESSURA SUPERIORI
CAR DOOR HYDRA PLUS
PORTE DI CABINA HYDRA PLUS
16.10.2015
Code/Codice
Version/Versione
TC.2.001981.EN
/
Code/Codice
Version/Versione
Date/Data
Page/Pagina
3201.30.0600V01
A
24.11.2010
1.17
Subject to change without notice! Soggetto a modifica senza preavviso!
PL cf 1
600 297
650 322
700 347
750 372
800 397
850 422
900 447
950 472
1000 497
1050 522
1100 547
1150 572
1200 597
PL cf 1
600 292
650 317
700 342
750 367
800 392
850 417
900 442
950 467
1000 492
1050 517
1100 542
1150 567
1200 592
1250 617
1300 642
1350 667
1400 692
1450 717
PL cf 1
1500 742
1550 767
1600 792
1650 817
1700 842
1750 867
1800 892
1850 917
1900 942
1950 967
2000 992
2050 1017
2100 1042
2150 1067
2200 1092
2250 1117
2300 1142
2350 1167
PL cf 1
2400 1192
2450 1217
2500 1242
2550 1267
2600 1292
2650 1317
2700 1342
2750 1367
2800 1392
2850 1417
2900 1442
2950 1467
3000 1492
3050 1517
3100 1542
3150 1567
3200 1592
PL cf 1 cf 2
600 396 197
650 429 214
700 463 231
750 496 247
800 529 264
850 563 281
900 596 297
950 629 314
1000 663 331
1050 696 347
1100 729 364
1150 763 381
1200 796 397
1250 829 414
1300 863 431
1350 896 447
PL cf 1 cf 2
900 591 292
950 624 309
1000 658 326
1050 691 342
1100 724 359
1150 758 376
1200 791 392
1250 824 409
1300 858 426
1350 891 442
1400 924 459
1450 958 476
1500 991 492
1550 1024 509
1600 1058 526
1650 1091 542
1700 1124 559
1750 1158 576
1800 1191 592
1850 1224 609
1900 1258 626
1950 1291 642
2000 1324 659
2050 1358 676
PL cf 1 cf 2
2100 1391 692
2150 1424 709
2200 1458 726
2250 1491 742
2300 1524 759
2350 1558 776
2400 1591 792
2450 1624 809
2500 1658 826
2550 1691 842
2600 1724 859
2650 1758 876
2700 1791 892
2750 1824 909
2800 1858 926
2850 1891 942
2900 1924 959
2950 1958 976
3000 1991 992
3050 2024 1009
3100 2058 1026
3150 2091 1042
3200 2124 1059
PL cf 1 cf 2
1400 929 464
1450 963 481
1500 996 497
1550 1029 514
1600 1063 531
1650 1096 547
1700 1129 564
1750 1163 581
1800 1196 597
1850 1229 614
1900 1263 631
1950 1296 647
2000 1329 664
2050 1363 681
2100 1396 697
PL cf 1
1250 622
1300 647
1350 672
1400 697
1450 722
1500 747
1550 772
1600 797
1650 822
1700 847
1750 872
1800 897
Nota: Typ 35/R-L fattibili solo per PL max. 1400
Note: Typ 35/R-L manufactured only for PL max. 1400
PL
=
PASSAGGIO LIBERO
CLEAR OPENING
Typ 12/R-L
Typ 32/R-L
Typ 35/R-L
PL
PL
PL
PL
Typ 42/C
(PL=1200
÷3200)
Typ 44/R
(PL= 600
÷1150)
Typ 62/C
(PL=1500
÷3200)
Typ 66/R
(PL= 900
÷1450)
Dimensions valid only for painted or cladded (material thickness 1 mm) doors
Dimensioni valide solo per porte verniciate o rivestite con materiali di spessore 1 mm
<
