WITTUR Hydra PLUS - Cable Chain Assembly for Side Opening Doors

CAR DOOR HYDRA PLUS
PORTE DI CABINA HYDRA PLUS
Typ 12/R-L
–
–
PL M1 M2
600 619 939
650 639 984
700 664 1034
750 689 1084
800 714 1134
850 739 1184
900 764 1234
950 789 1284
1000 814 1334
1050 839 1384
1100 864 1434
1150 889 1484
1200 914 1534
1250 939 1584
1300 964 1634
1350 1004 1699
1400 1029 1749
1450 1039 1784
1500 1064 1834
1550 1089 1884
1600 1114 1934
1650 1139 1984
1700 1164 2034
1750 1189 2084
1800 1219 2139
Typ 32/R-L
–
–
–
PL M1 M2
600 619 939
650 639 984
700 664 1034
750 689 1084
800 714 1134
850 739 1184
900 764 1234
950 789 1284
1000 814 1334
1050 839 1384
1100 864 1434
1150 889 1484
1200 914 1534
1250 939 1584
1300 964 1634
1350 1004 1699
1400 1029 1749
1450 1039 1784
1500 1064 1834
1550 1089 1884
1600 1114 1934
1650 1139 1984
1700 1164 2034
1750 1189 2084
1800 1219 2139
1850 1239 2184
1900 1264 2234
1950 1289 2284
2000 1314 2334
2050 1339 2384
2100 1364 2434
Typ 35/R-L
–
–
–
PL M1 M2
600 619 939
650 639 984
700 664 1034
750 689 1084
800 714 1134
850 739 1184
900 764 1234
950 789 1284
1000 814 1334
1050 839 1384
1100 864 1434
1150 889 1484
1200 914 1534
1250 939 1584
1300 964 1634
1350 1004 1699
1400 1029 1749
Typ 72/R-L
PL M1 M2
600 619 939
650 639 984
700 664 1034
750 689 1084
800 714 1134
850 739 1184
900 764 1234
950 789 1284
1000 814 1334
1050 839 1384
1100 864 1434
1150 889 1484
1200 914 1534
1250 939 1584
1300 964 1634
1350 1004 1699
1400 1029 1749

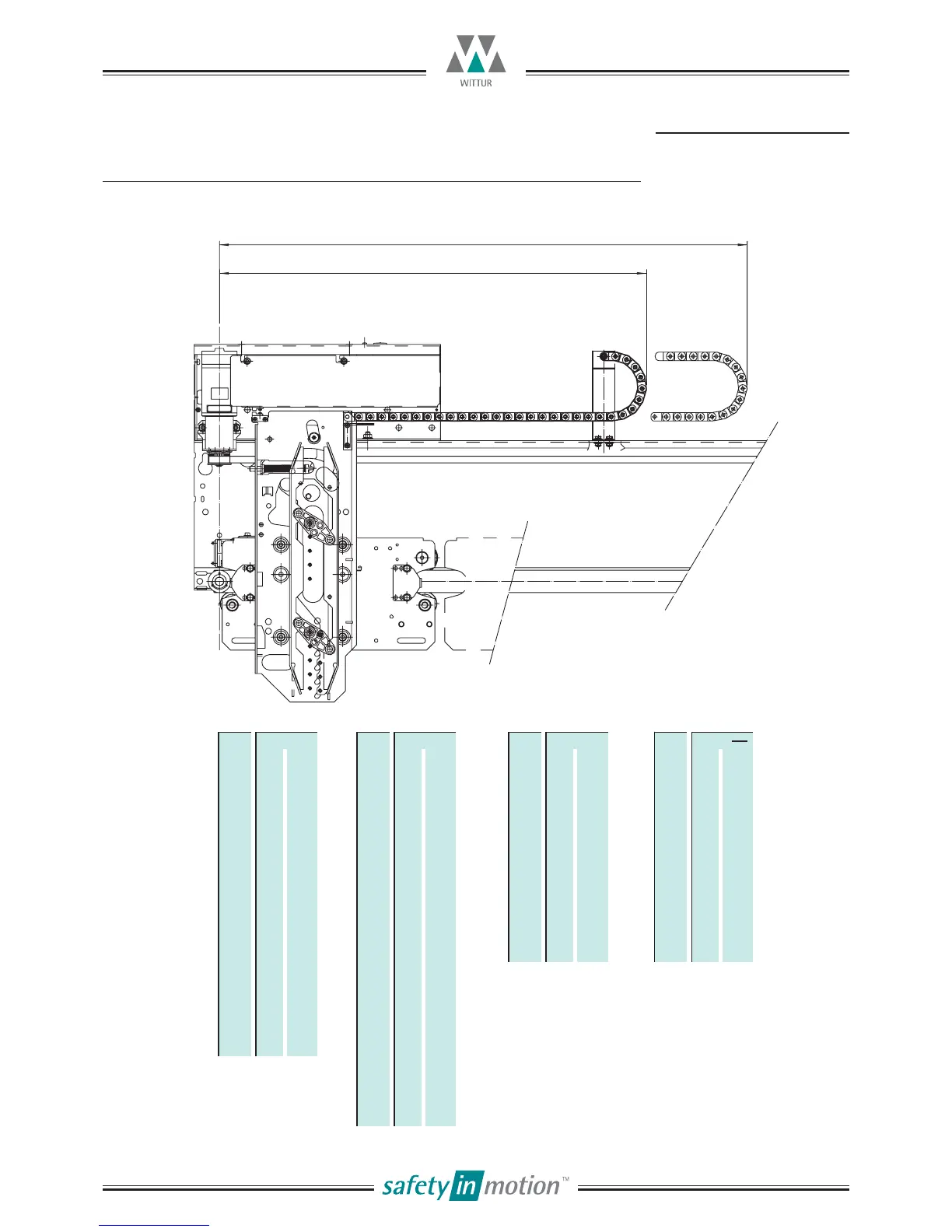

OVERALL WITH OPEN DOOR
INGOMBRO CON PORTA APERTA
M2
OVERALL WITH CLOSED DOOR
INGOMBRO CON PORTA CHIUSA
M1
CABLE CHAIN ASSEMBLY FOR SIDE OPENING DOORS TYP. 12/R-L - 32/R-L - 35/R-L - 72/R-L II
MONTAGGIO GUIDACAVI PER PORTE AD APERTURA LATERALE TIPI 12/R-L - 32/R-L - 35/R-L - 72/R-L
16.10.2015
Code/Codice
Version/Versione
TC.2.001981.EN
/
Code/Codice
Version/Versione
Date/Data
Page/Pagina
3201.30.0600V01
A
24.11.2010
8.3
Subject to change without notice! Soggetto a modifica senza preavviso!
