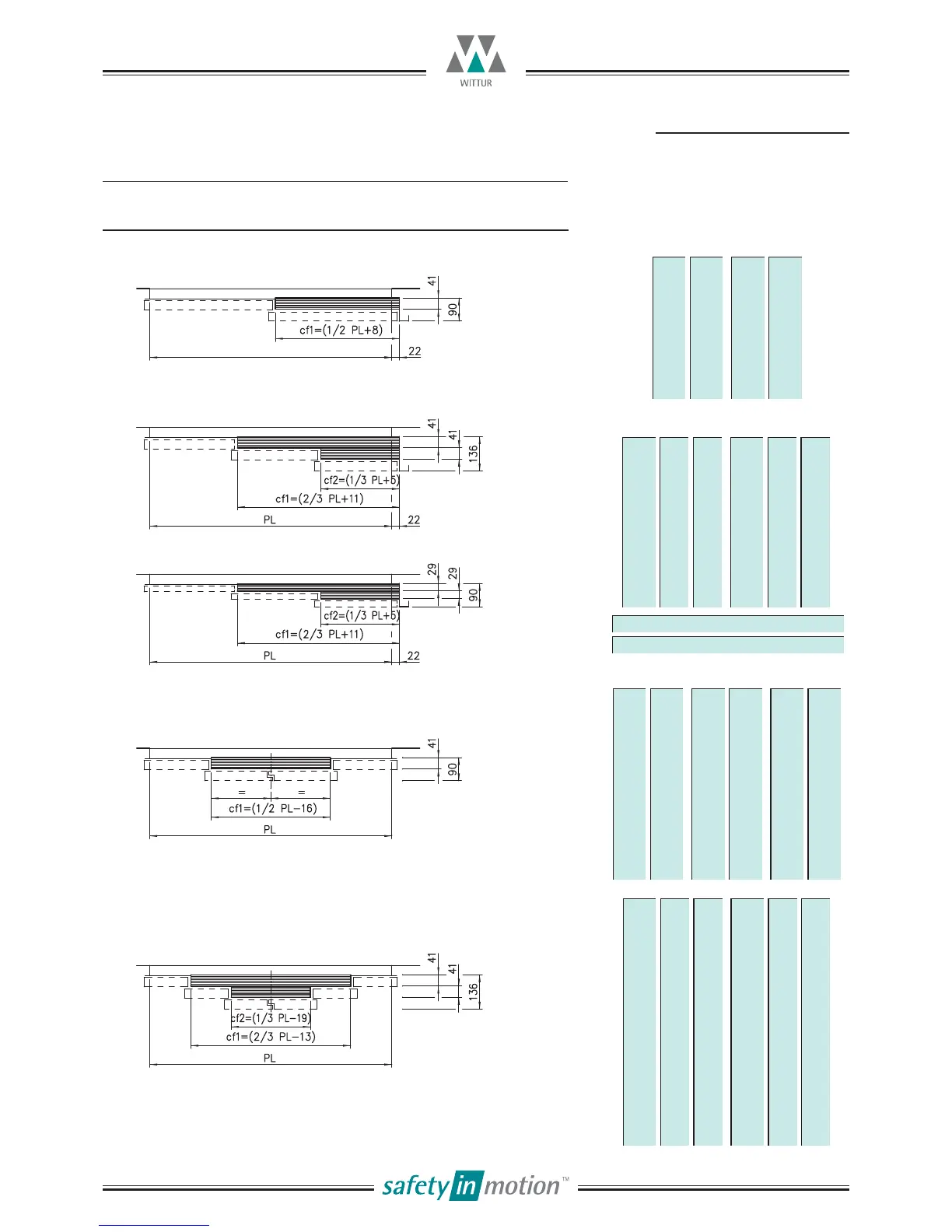

CAR DOOR INFILL PANEL SCHEDULE - DOORS WITH RUNBYXXXXXXXXXXXXXI
TABELLA DIMENSIONI COPRIFESSURA SUPERIORI - PORTE CON EXTRACORSA
CAR DOOR HYDRA PLUS
PORTE DI CABINA HYDRA PLUS
16.10.2015
Code/Codice
Version/Versione
TC.2.001981.EN
/
Code/Codice
Version/Versione
Date/Data
Page/Pagina
3201.30.0600V01
A
24.11.2010
1.17.1
Subject to change without notice! Soggetto a modifica senza preavviso!
PL cf 1
600 284
650 309
700 334
750 359
800 384
850 409
900 434
950 459
1000 484
1050 509
1100 534
1150 559
1200 584
1250 609
1300 634
1350 659
1400 684
1450 709
PL cf 1
1500 734
1550 759
1600 784
1650 809
1700 834
1750 859
1800 884
1850 909
1900 934
1950 959
2000 984
2050 1009
2100 1034
2150 1059
2200 1084
2250 1109
2300 1134
2350 1159
PL cf 1
2400 1184
2450 1209
2500 1234
2550 1259
2600 1284
2650 1309
2700 1334
2750 1359
2800 1384
2850 1409
2900 1434
2950 1459
3000 1484
3050 1509
3100 1534
3150 1559
3200 1584
PL cf 1 cf 2
600 411 205
650 444 221
700 478 238
750 511 255
800 544 271
850 578 288
900 611 305
950 644 321
1000 678 338
1050 711 355
1100 744 371
1150 778 388
1200 811 405
1250 844 421
1300 878 438
1350 911 455
PL cf 1 cf 2
1400 944 471
1450 978 488
1500
1011
505
1550 1044 521
1600 1078 538
1650
1111
555
1700 1144 571
1750 1178 588
1800
1211
605
1850 1244 621
1900 1278 638
1950
1311
655
2000 1344 671
2050 1378 688
2100
1411
705
Nota: Typ 35/R-L fattibili solo per PL max. 1400
Note: Typ 35/R-L manufactured only for PL max. 1400
PL
=
PASSAGGIO LIBERO
CLEAR OPENING
Typ 12/R-L
Typ 32/R-L
Typ 35/R-L
Typ 42/C
(PL=1200
÷3200)
Typ 44/R
(PL= 600
÷1150)
Typ 62/C
(PL=1500
÷3200)
Typ 66/R
(PL= 900
÷1450)
PL cf 1 cf 2
900 587 281
950 621 297
1000 654 314
1050 687 331
1100 721 347
1150 754 364
1200 787 381
1250 821 397
1300 854 414
1350 887 431
1400 921 447
1450 954 464
1500 987 481
1550 1021 497
1600 1054 514
1650 1087 531
1700 1121 547
1750 1154 564
1800 1187 581
1850 1221 597
1900 1254 614
1950 1287 631
2000 1321 647
2050 1354 664
PL cf 1 cf 2
2100 1387 681
2150 1421 697
2200 1454 714
2250 1487 731
2300 1521 747
2350 1554 764
2400 1587 781
2450 1621 797
2500 1654 814
2550 1687 831
2600 1721 847
2650 1754 864
2700 1787 881
2750 1821 897
2800 1854 914
2850 1887 931
2900 1921 947
2950 1954 964
3000 1987
981
3050 2021 997
3100 2054 1014
3150 2087 1031
3200 2121 1047
PL cf 1
600 308
650 333
700 358
750 383
800 408
850 433
900 458
950 483
1000 508
1050 533
1100 558
1150 583
1200 608
PL cf 1
1250 633
1300 658
1350 683
1400 708
1450 733
1500 758
1550 783
1600 808
1650 833
1700 858
1750 883
1800 908
Dimensions valid only for painted or cladded (material thickness 1 mm) doors
Dimensioni valide solo per porte verniciate o rivestite con materiali di spessore 1 mm
<
