WITTUR Hydra PLUS - Mounting and Fixing Procedures

CAR DOOR HYDRA PLUS
PORTE DI CABINA HYDRA PLUS
16.10.2015
Code/Codice
Version/Versione
TC.2.001981.EN
/
Code/Codice
Version/Versione
Date/Data
Page/Pagina
3201.30.0600V01
A
24.11.2010
1.15
Subject to change without notice! Soggetto a modifica senza preavviso!

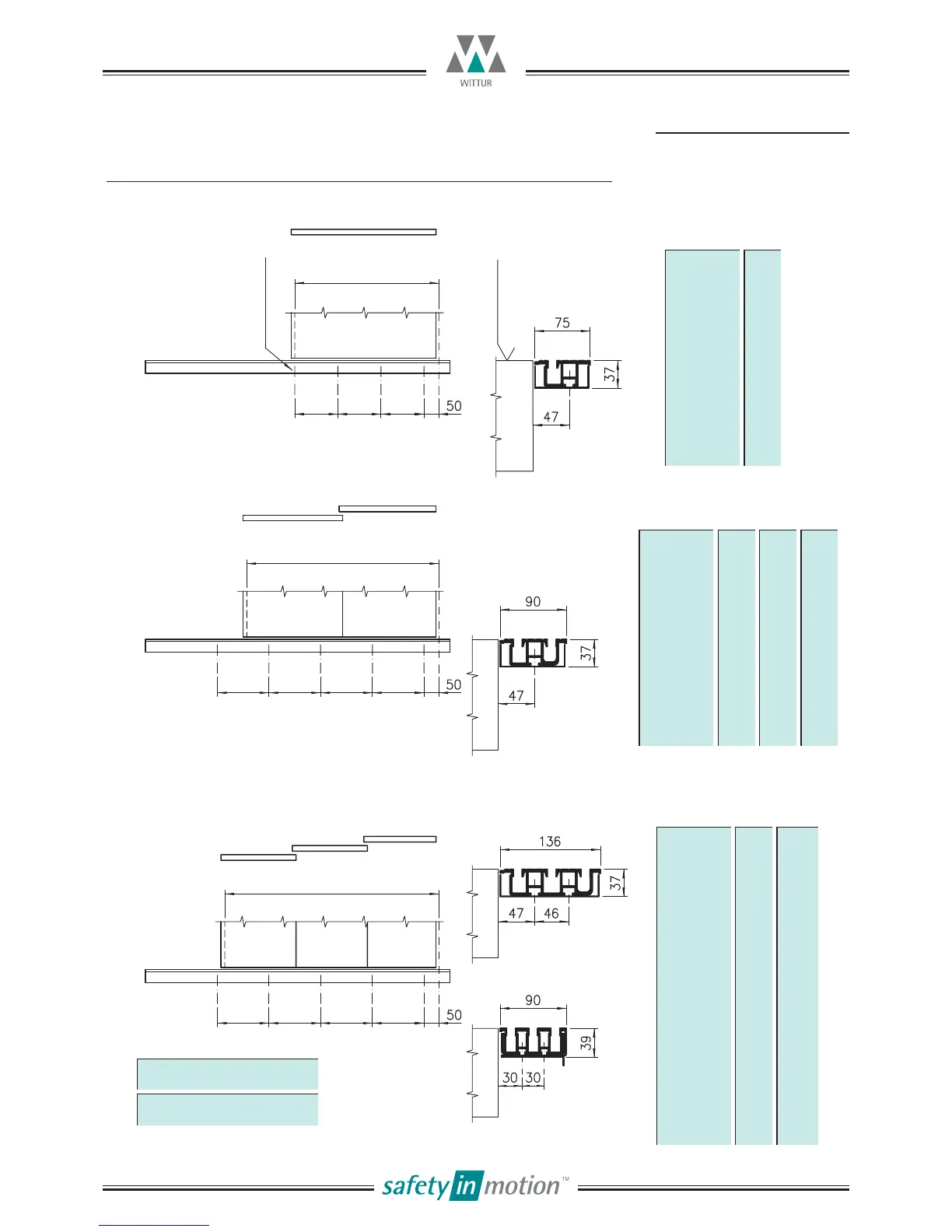

BOTTOM FIXINGS FOR CAR SILLS - SIDE OPENING CAR DOORSIxxxxxxxxxxxxxxxxx
FISSAGGI INFERIORI SOGLIE CABINA - PORTE DI CABINA AD APERTURA LATERALE
Note: Type 35/R-L manufactured
only for PL max. 1400
Nota: Tipo 35/R-L fattibile
solo per PL max. 1400
PL C C 1
600 ÷ 650 228
700 ÷ 800 250
850 ÷ 1000 325
1050 ÷ 1150 400
/
1200 ÷ 1300 475
1350 ÷ 1400 550
1450 438 438
1500 450 450
1550 463 463
1600 475 475
1650 488 488
1700 500 500
1750 513 513
1800 450 450
1850 460 460
1900 470 470
1950 480 480
2000 490 490
2050 500 500
2100 510 510
PL C C 1 C 2
500 300
550 325
/
600 ÷ 850 250 250 /
900 ÷ 1150 400 400
1200 ÷ 1400 550 550
1450 509 509 509
1500 520 520 520
1550 533 533 533
1600 545 545 545
1650 447 447 447
1700 457 457 457
1750 467 467 467
1800 509 509 509
PASSAGGIO LIBERO
PL = CLEAR OPENING
PASSAGGIO LIBERO
PL = CLEAR OPENING
PASSAGGIO LIBERO
PL = CLEAR OPENING
FORI PER VITI M10
FIXING HOLES M10
FILO PAVIMENTO
FINISHED FLOOR LEVEL
Typ 72/R-L
Typ 12/R-L
Typ 32/R-L
Typ 35/R-L
C1 C C C
CC1C2 C
C CC
PL C
500 ÷ 650 250
700 378
750 ÷ 800 400
850 ÷ 900 475
950 ÷ 1000 550
1050 483
1100 495
1150 508
1200 446
1250 456
1300 466
1350 476
1400 486
