WITTUR Hydra PLUS - F.I.C.O. Edge Assembly Details

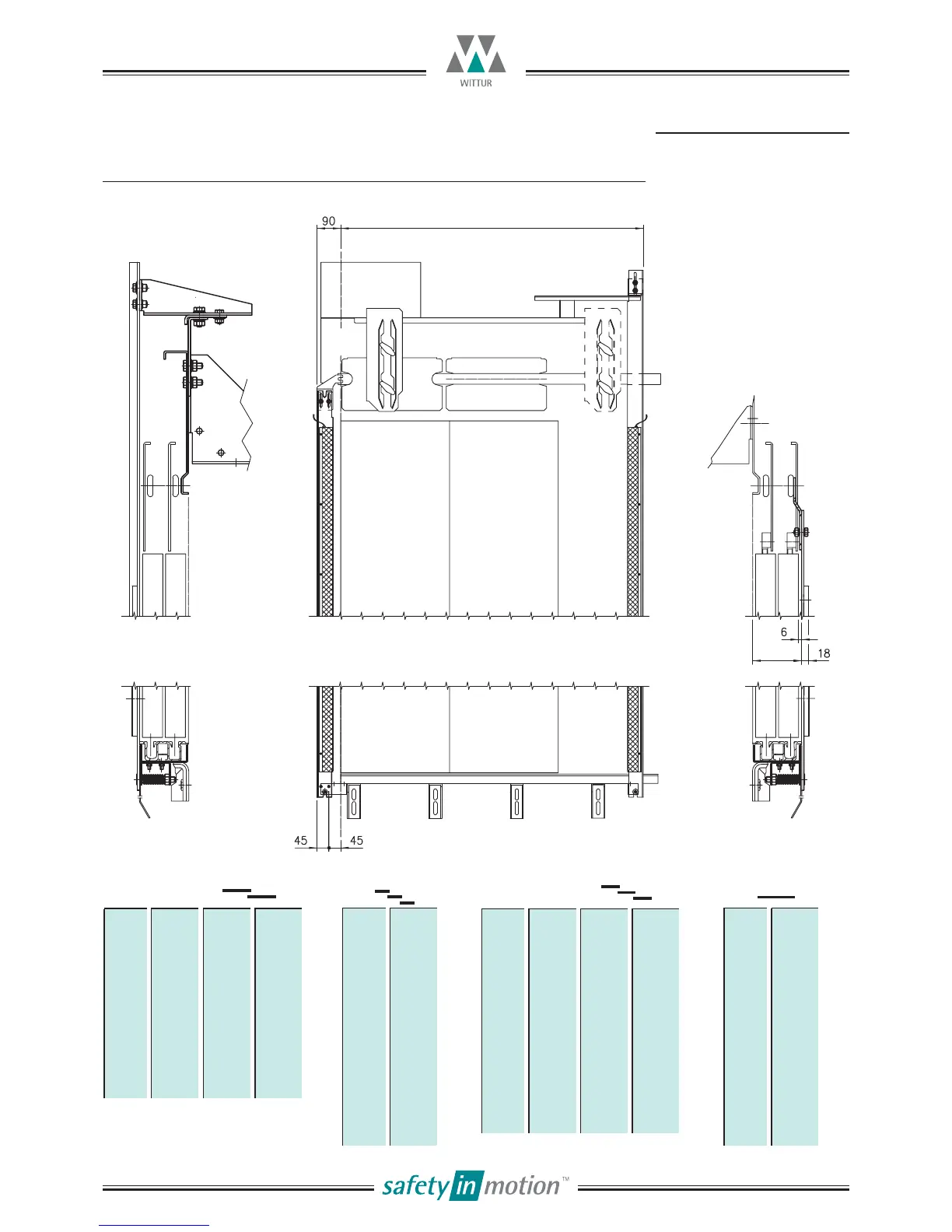

F.I.C.O. EDGE ASSEMBLY FOR SIDE OPENING DOORS TYP. 12/R-L - 35/R-L - 32/R-L - 72/R-Lxxi
MONTAGGIO COSTOLA F.I.C.O. PER PORTE AD APERTURA LATERALE TIPI 12/R-L - 35/R-L - 32/R-L - 72/R-L
CAR DOOR HYDRA PLUS
PORTE DI CABINA HYDRA PLUS
16.10.2015
Code/Codice
Version/Versione
TC.2.001981.EN
/
Code/Codice
Version/Versione
Date/Data
Page/Pagina
3201.30.0600V01
A
24.11.2010
8.6
Subject to change without notice! Soggetto a modifica senza preavviso!
SILL
SOGLIA
L
PL L PL L
600 945 1250 1795
650 995 1300 1845
700 1045 1350 1895
750 1095 1400 1945
800 1145 1450 2050
850 1195 1500 2100
900 1345 1550 2140
950 1345 1600 2190
1000 1345 1650 2240
1050 1495 1700 2290
1100 1485 1750 2340
1150 1495 1800 2500
1200 1660
PL L
600 935
650 985
700 1035
750 1085
800 1135
850 1185
900 1235
950 1285
1000 1335
1050 1385
1100 1435
1150 1525
1200 1575
1250 1625
1300 1675
1350 1800
1400 1800
PL L PL L
600 935 1400 1780
650 985 1450 1880
700 1035 1500 1930
750 1085 1550 1980
800 1135 1600 2030
850 1185 1650 2080
900 1235 1700 2130
950 1285 1750 2180
1000 1335 1800 2380
1050 1385 1850 2430
1100 1435 1900 2480
1150 1525 1950 2530
1200 1575 2000 2580
1250 1625 2050 2630
1300 1675 2100 2680
1350 1780
PL L
600 1050
650 1100
700 1265
750 1400
800 1400
850 1560
900 1650
950 1795
1000 1845
1050 2075
1100 2120
1150 2275
1200 2375
1250 2420
1300 2575
1350 2675
1400 2775
TY 12/R-L
TY 35/R-L
TY 32/R-L
TY 72/R-L
