CAR DOOR HYDRA PLUS
PORTE DI CABINA HYDRA PLUS

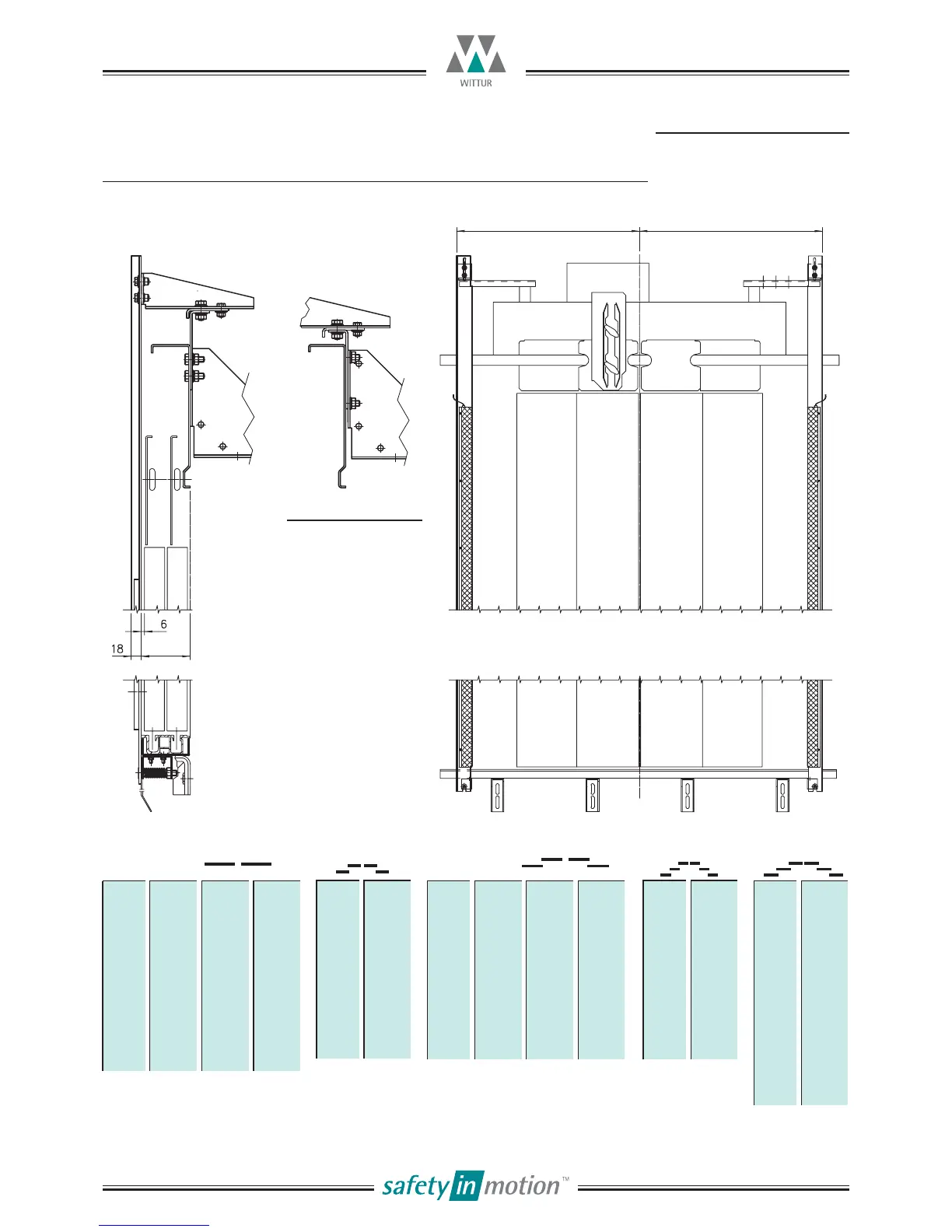

F.I.C.O. EDGE ASSEMBLY FOR CENTRAL OPENING DOORS TYP. 02/C - 42/C - 44/R - 66/R - 62/Cx
MONTAGGIO COSTOLA F.I.C.O. PER PORTE AD APERTURA CENTRALE TIPI 02/C - 44/R - 42/C - 66/R - 62/C
16.10.2015
Code/Codice
Version/Versione
TC.2.001981.EN
/
Code/Codice
Version/Versione
Date/Data
Page/Pagina
3201.30.0600V01
A
24.11.2010
8.6.1
Subject to change without notice! Soggetto a modifica senza preavviso!
SILL
SOGLIA
LL
PL L PL L
600 635 1250 1025
650 660 1300 1050
700 685 1350 1075
750 710 1400 1100
800 735 1450 1225
850 760 1500 1250
900 785 1550 1275
950 810 1600 1300
1000 835 1650 1325
1050 860 1700 1350
1100 950 1750 1375
1150 950 1800 1500
1200 1000
PL L
600 560
650 585
700 610
750 635
800 660
850 685
900 710
950 735
1000 760
1050 800
1100 825
1150 850
PL L PL L
1200 935 1800 1340
1250 960 1850 1365
1300 985 1900 1375
1350 1010 1950 1375
1400 1035 2000 1440
1450 1075 2050 1450
1500 1095 2100 1450
1550 1120 2150 1450
1600 1145 2200 1450
1650 1170 2250 1450
1700 1195 2300 1450
1750 1210
PL L
900 710
950 735
1000 760
1050 785
1100 810
1150 835
1200 860
1250 885
1300 910
1350 935
1400 960
1450 985
PL L
1500 1085
1550 1110
1600 1135
1650 1160
1700 1185
1750 1210
1800 1235
1850 1260
1900 1285
1950 1310
2000 1335
2050 1360
2100 1385
2150 1410
2200 1435
2250 1460
FIXING BRAKET ASSEMBLY
ONLY FOR 44/R PL=600÷700
MONTAGGIO STAFFA DI FISSAGGIO
SOLO PER 44/R PL=600÷700
TY 02/C TY 42/C
TY 66/R TY 62/C
TY 44/R
