Wolf CGB-2-24 - Layout

3064810_201804 11

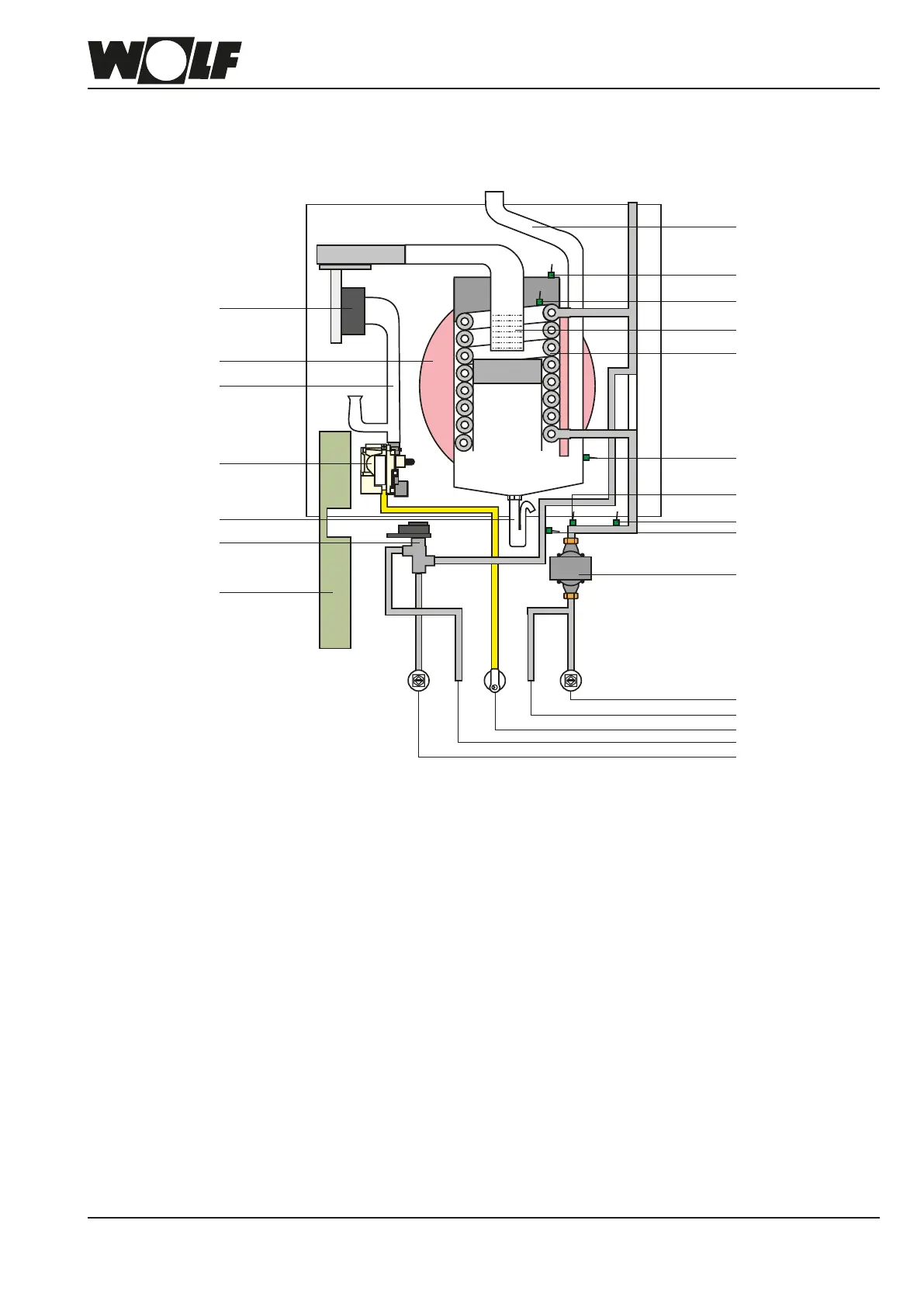

5. Layout
1 Gas fan
2 Expansion vessel
3 Mixing valve
4 Gas valve
5 Trap
6 3-way valve
7 Control unit enclosure
(GBC-e burner control unit, top)
(HCM-2 control unit PCB, bottom)
8 Flue pipe
9 Combustion chamber cover HLSC (thermostat)
10 Combustion chamber temperature sensor
(eHLSC sensor)
11 Burner
12 Heating water heat exchanger
13 Flue gas temperature sensor
14 Pressure sensor
15 Return temperature sensor
16 Boiler water temperature sensor
17 Heating circuit pump with air vent valve
22 Heating return
23 Cylinder return
24 Gas supply pipe
25 Cylinderow
26 Heatingow
CGB-2
Wallmountedgascondensingboiler
1
8
9
10
11
12
13
14
15
16
17
22
23
25
24
26
2
3
4
6
5
7
