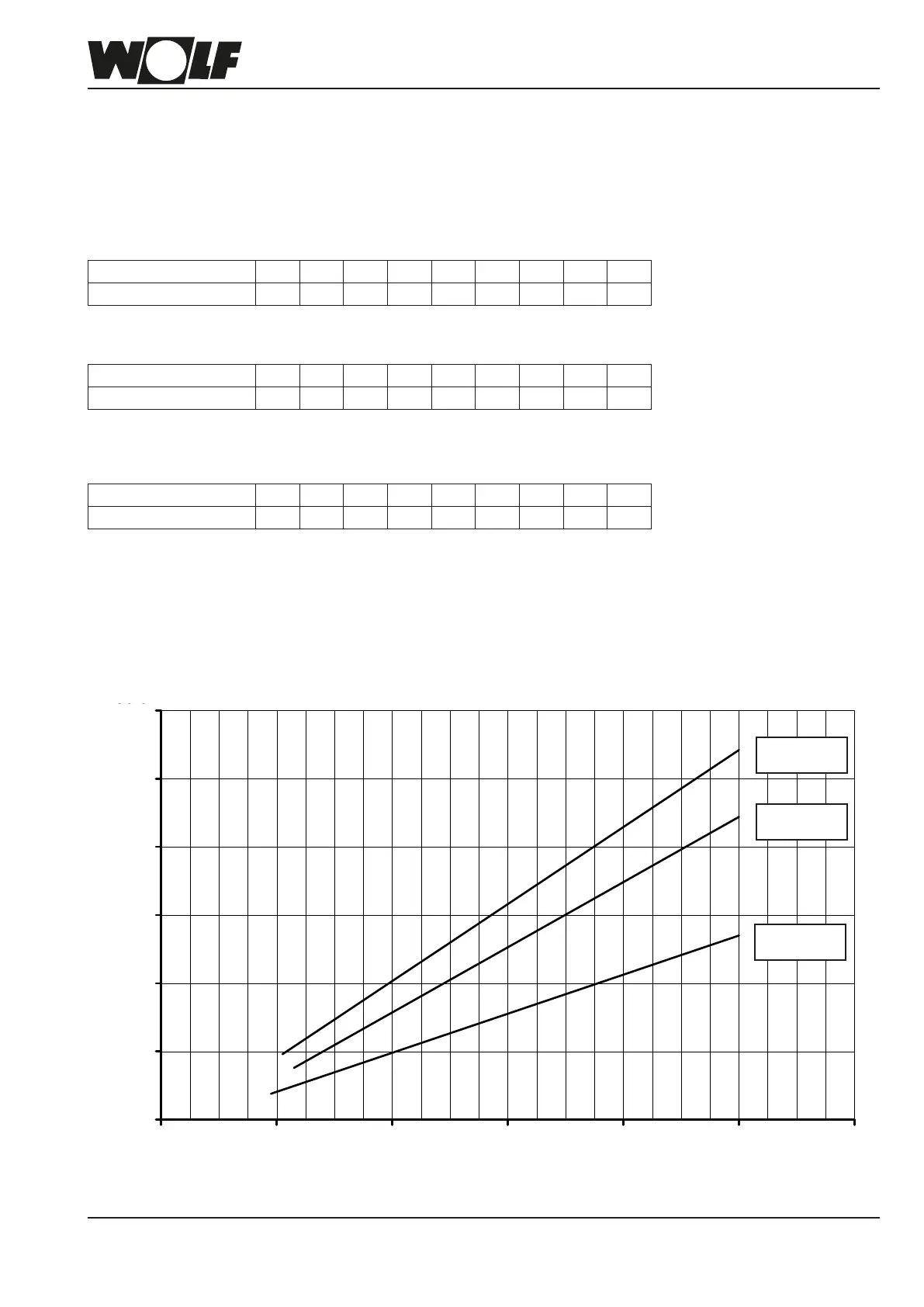

Wolf CGB-2-24 - Adjusting the Maximum Heating Output

3064810_201804 61
30.Adjustingthemaximumheating
output
0,0
5,0
10,0
15,0
20,0
25,0
30,0
0 20 40 60 80 100 120
Outputsetting(parameterHG04)
TheoutputsettingcanbemodiedwithWolfcontrolaccessorieswitheBUScapability.
The heating output is determined by the gas fan speed. By reducing the gas fan speed in accordance with the table, the maximum
heating output at 80/60 °C is matched.
Limitingthemaximumheatingoutputrelativetoaow/returntemperatureof80/60°C
Displayvalue[%]
Heatingoutput[kW]
Table: Output settings
24kWappliance
Display value (%) 21 30 40 50 60 70 80 90 100
Heating output (kW) 4.8 7.3 10.2 13.0 15.8 18.6 21.5 24.3 27.1
20kWappliance
Display value (%) 23 30 40 50 60 70 80 90 100
Heating output (kW) 3.8 5.5 7.9 10.3 12.6 15.0 17.4 19.8 22.2
14kWappliance
Display value (%) 19 30 40 50 60 70 80 90 100
Heating output (kW) 1.9 3.5 5.1 6.7 8.2 9.8 11.3 12.9 13.5
24kWappli-
ance
20kWappli-
ance
14kWappli-
ance
.
30.0
25.0
20.0
15.0
10.0
5.0
0.0
1)
minimum appliance output
