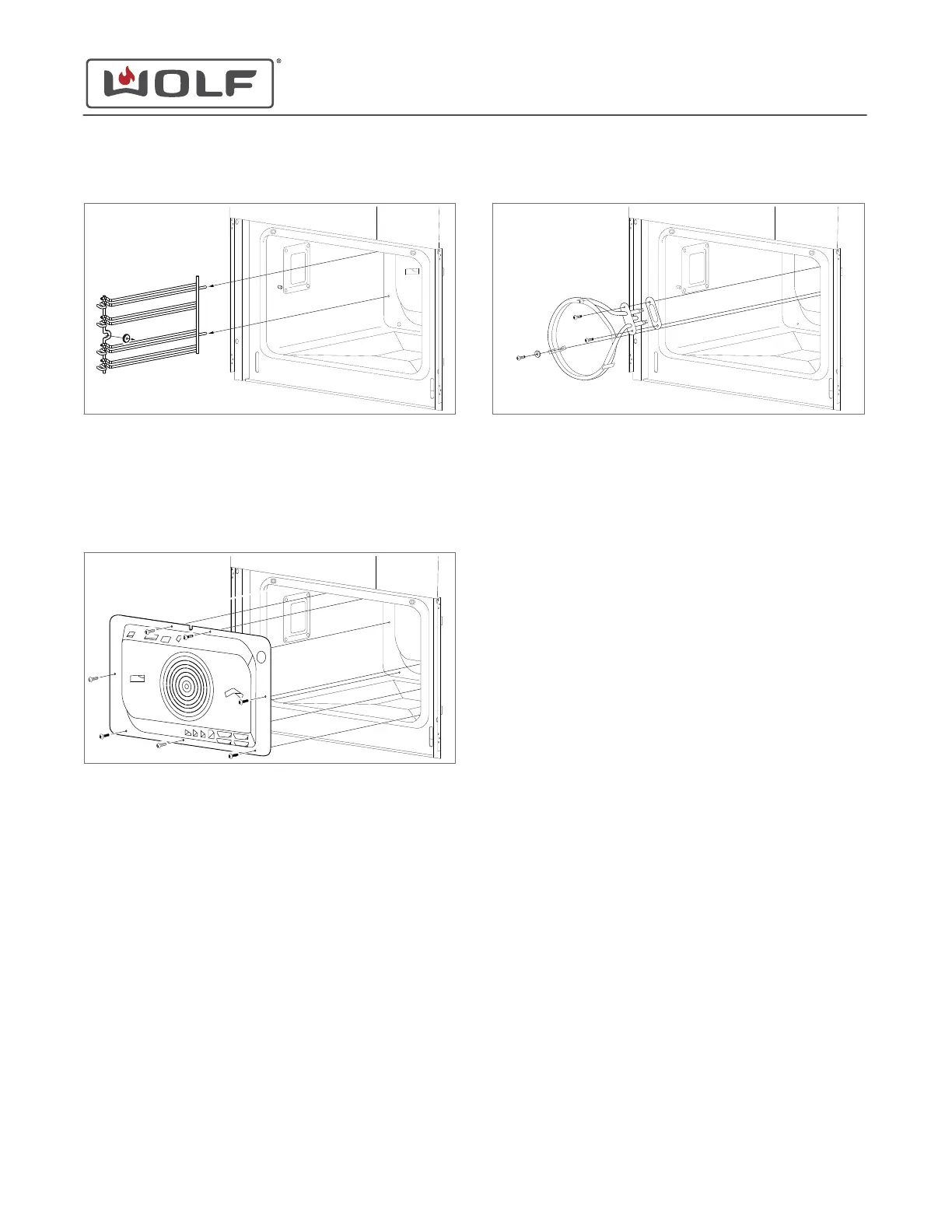

3 Pull the rack guide forward out of the unit.
Remove the Rear Baffle
1 Use a T-20 Torx bit to remove the screws from the rear
baffle.
2 Remove the rear baffle from the unit.
Remove the Element
1 Use a T-20 Torx bit to remove the screws and washer from
the element.
2 Pull the element forward and disconnect the electrical wires.
3 Remove the gasket seal from the element.
4
Remove the element form the unit.
ELEMENT INSTALLATION
Install the Element
1 Install the gasket seal onto the element.
2 Connect the electrical wires to the element.
3 Install the element through the back wall of the oven cavity.
4 Use a T-20 Torx bit to install the screws and washer into the
element.
Install the Rear Baffle
1 Place the rear baffle against the back wall of the oven
cavity.
2 Use a T-20 Torx bit to install the screws into the rear baffle.
Install the Rack Guide
1 Insert the rack guide rails into the rear baffle.
2 Place the indent in the rack guide over the rack guide stud.
3 Install the rack guide nut.
Install the Rack
1 Insert the rack between the rails of the rack guide.
2 Push the rack into the oven.
CSO (SWS #13543126)
Cavity Component Removal and Installation
REMOVE THE RACK GUIDE (continued)
service.subzero.com
827703 REV B.1
55
