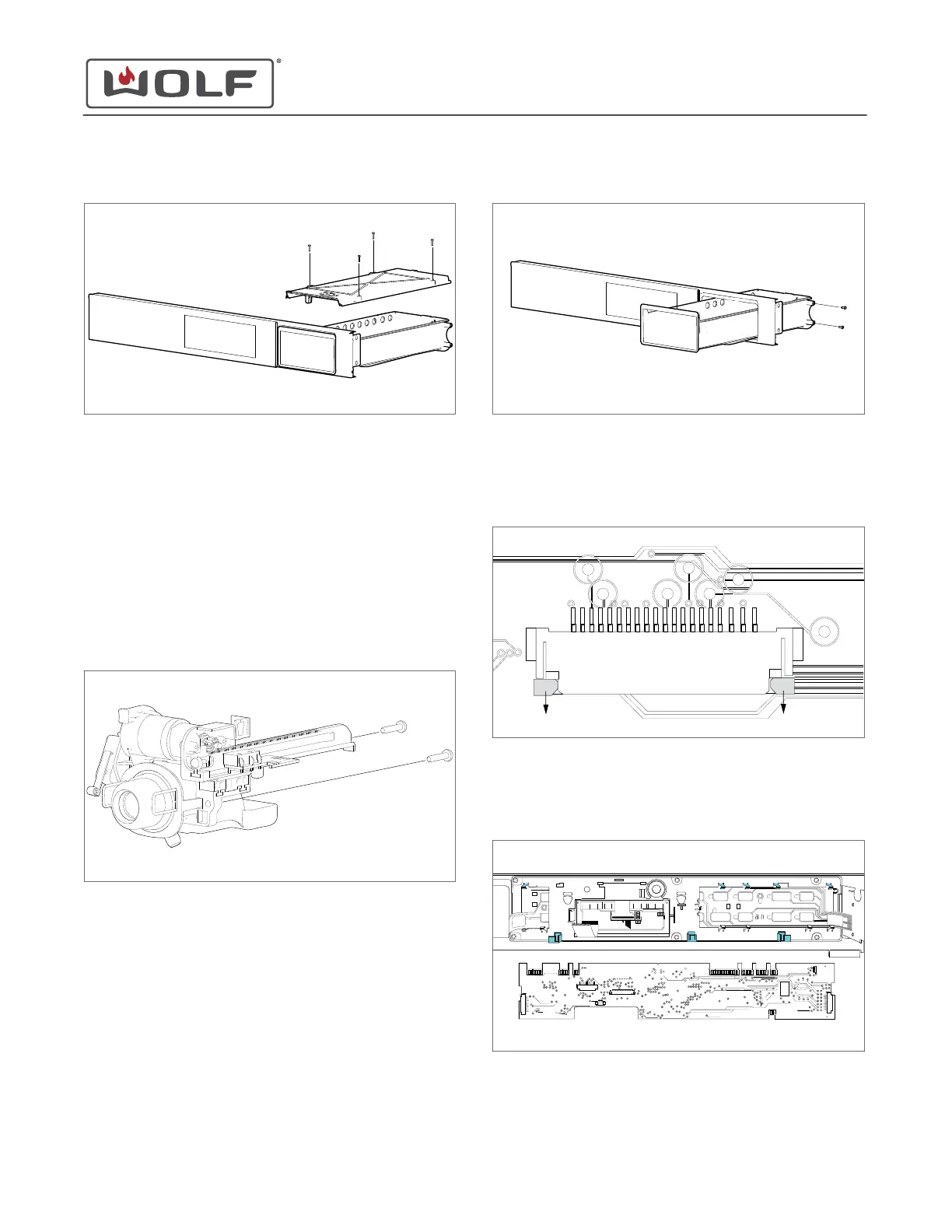

3 Remove the tank housing cover from the unit.
Remove the Valve Assembly
1 Remove the wire connectors from the water tank
microswitch.
2 Remove the wire connectors from the water valve.
3 Remove the ground wires.
4 Remove the drive motor tab from the tank housing cover.
5 Use a T-10 Torx bit to remove the screws from the valve
assembly.
6 Remove the valve assembly from the unit.
Remove the Tank Housing Base
1 Use a T-20 Torx bit to remove the screws from the side of
the tank housing base.
2 Push the tank housing base forward out of the control
panel.
3
Remove the tank housing base from the unit.
Remove the Control Board
1 Open the lock(s) on the ribbon cable connectors, and
remove the ribbon cable(s) from the control board.
2 Disconnect the wire connectors from the control board.
3 Open the tabs on the control board bracket along the top of
the control board.
4 Remove the control board from the unit.
CSO (SWS #13543126)
Top Component Removal and Installation
REMOVE THE TANK HOUSING COVER (continued)
service.subzero.com
827703 REV B.1
62
