Wolf CSO24TE/S - Display and Control Panel Procedures

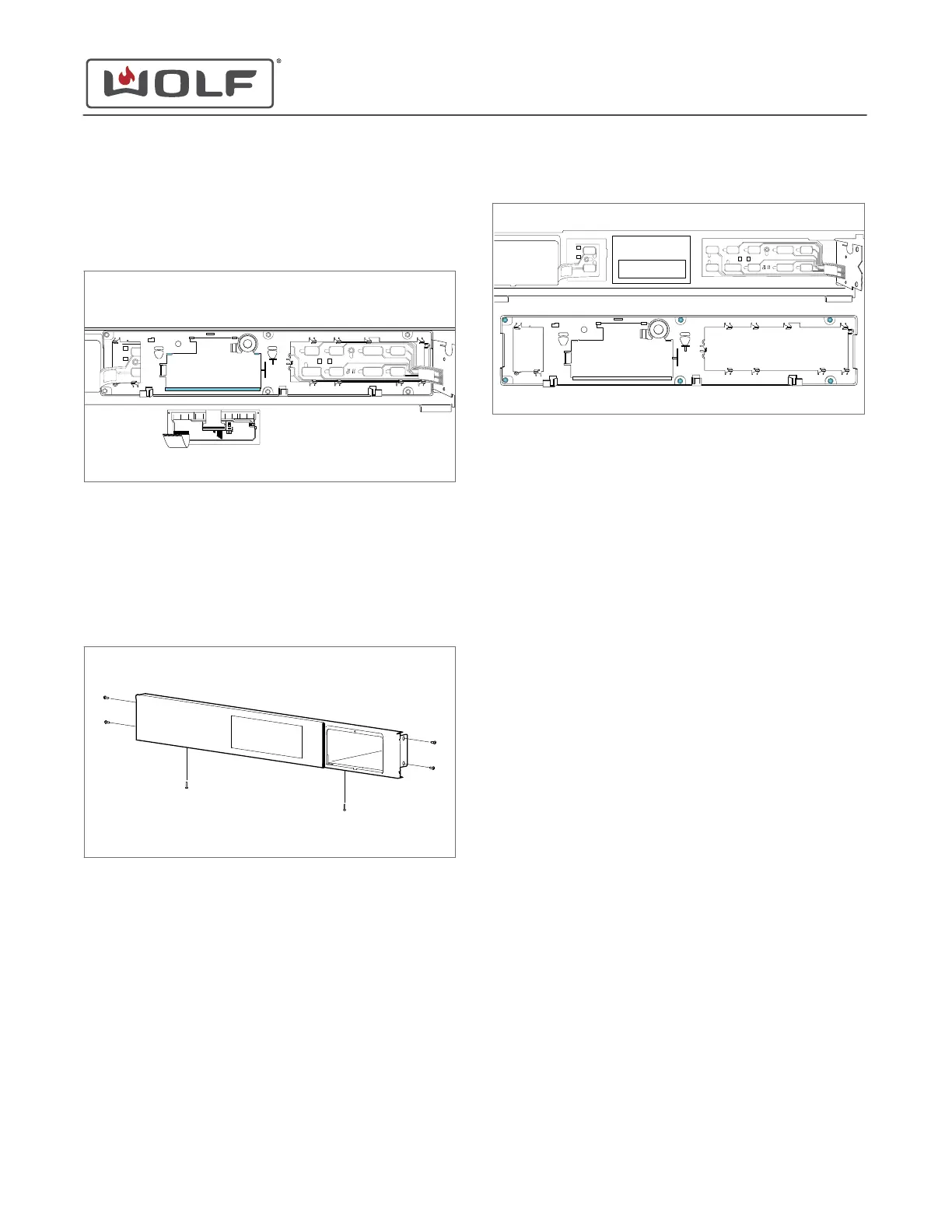

Remove the Display
1 Lift the tabs on the control board bracket at the top of the
display.
2 Remove the display from the unit.
Remove the Control Panel
1 Remove the ground wires from the control panel.
2 Use a T-20 Torx bit to remove the screws from the control
panel.
3 Remove the control panel from the unit.
4 Turn the control panel over.
5 Use a T-20 Torx bit to remove the screws from the control
board bracket.
6
Remove the control board bracket from the control panel.
CONTROL PANEL INSTALLATION
After installing the control panel, install:
Install the Control Panel
1 Place the control panel on the unit.
2 Use a T-20 Torx bit to install the screws into the control
panel.
3 Connect the ground wires to the control panel.
Install the Display
1 Place the bottom of the display into the channel on the
control board bracket.
2 Press the top of the display into place.
Install the Control Board
1 Place the bottom of the control board into the control board
bracket supports.
2 Push the top of the control board into the control board
bracket.
CSO (SWS #13543126)
Top Component Removal and Installation
Remove the Display (continued)
