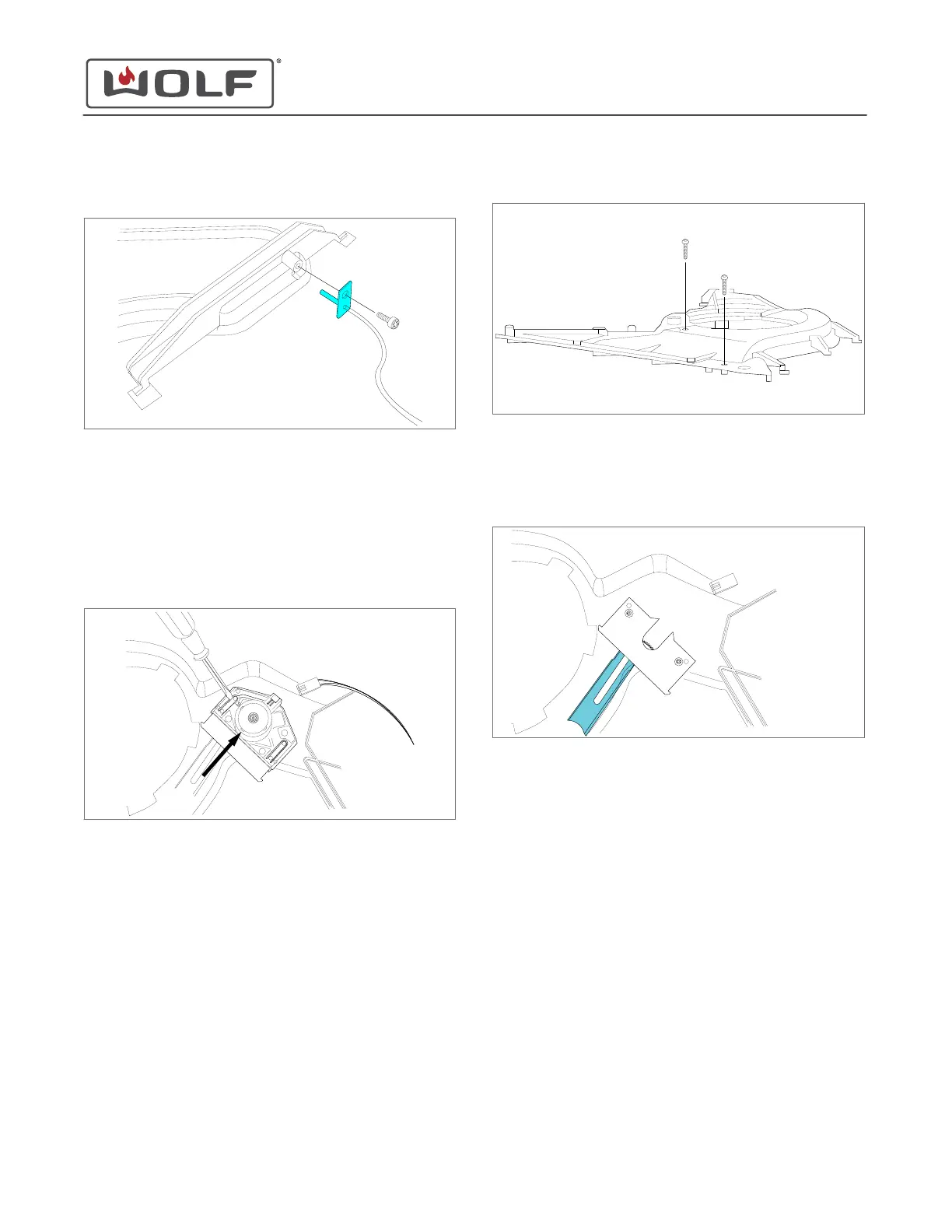

3 Remove the temperature sensor 300C from the top exhaust
duct.
Remove the Stepper Motor
1 Disconnect the electrical connector from the stepper motor.
2 Use a flat-blade screwdriver to pry the tabs up on the
stepper motor retainer, while pulling the stepper motor
toward the front of the unit.
3 Remove the stepper motor from the unit.
Remove the Top Exhaust Duct
1 Use a T-20 Torx bit to extract the screws from the top
exhaust duct.
2 Push the top exhaust duct toward the rear of the unit to
disengage the top exhaust duct tabs.
3
Remove the top exhaust duct from the unit.
Remove the Valve Coupler Assembly
1 Use a T-15 Torx bit to extract the screws from the stepping
motor retainer.
2 Remove the stepping motor retainer.
3 Turn the top exhaust duct over, and remove the slider from
the valve coupler.
4 Remove the slider from the unit.
5 With the top exhaust duct turned over, rotate the valve
coupler until the tab lines up with the notch in the top
exhaust duct.
CSO (SWS #13543126)
Top Component Removal and Installation
REMOVE THE TEMPERATURE SENSOR 300C (continued)
service.subzero.com
827703 REV B.1
70
