Wolf CSO24TE/S - Unit Relay Board, Rack, and Fan Motor Procedures

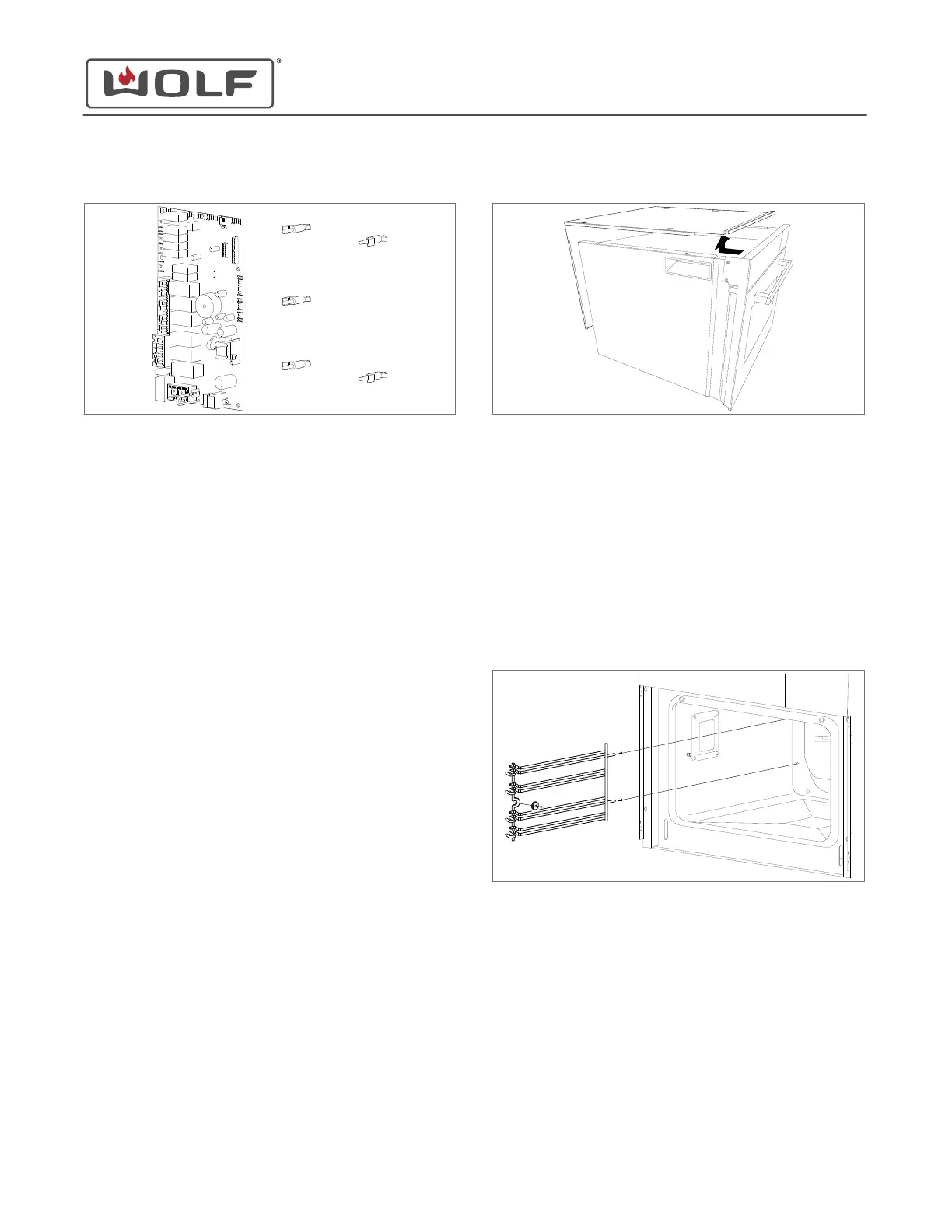

3 Remove the unit relay board from the unit.
UNIT RELAY BOARD INSTALLATION
Install the Unit Relay Board
1 Place the unit relay board onto the spacers.
2 Connect the electrical connectors to the unit relay board.
Install the Top Plate
1 Place the top plate on the unit.
2 Use a T-20 Torx bit to install the screws into the top plate.
CONVECTION FAN MOTOR REMOVAL
To remove the convection fan motor, first remove the top plate,
racks, rack guides, rear baffle, and the hot air fan blade .
Remove the Top Plate
1 Use a T-20 Torx bit to remove the screws from the top and
back of the unit.
2
Remove the top plate from the unit.
Remove the Rack
Pull the rack forward out of the unit.
Remove the Rack Guide
1 Remove the rack guide nut.
2 Pull the front of the rack guide toward the center of the
oven.
3 Pull the rack guide forward out of the unit.
Remove the Rear Baffle
1 Use a T-20 Torx bit to remove the screws from the rear
baffle.
CSO (SWS #13543126)
Back Component Removal and Installation
REMOVE THE UNIT RELAY BOARD (continued)
